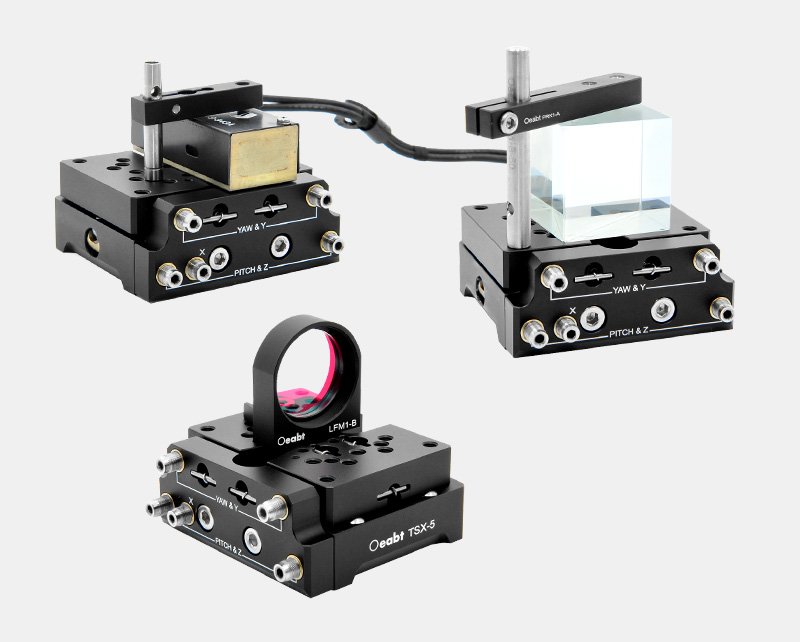

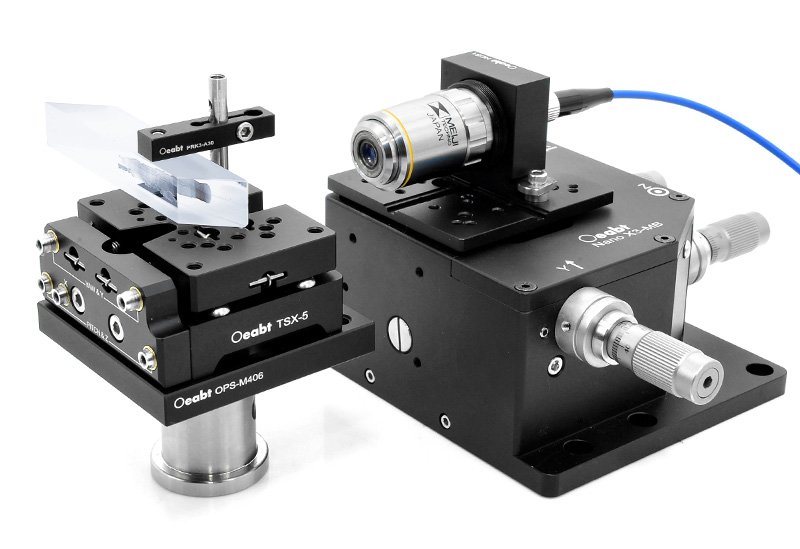

TSX-5 五轴位移平台
$1,290.00
• 结构紧凑，台面尺寸56.8*42.9mm； • 载物台高度25.7mm； • 五轴调节：俯仰调节±3.5°，偏转调节±5°，线性平移3mm；
Description

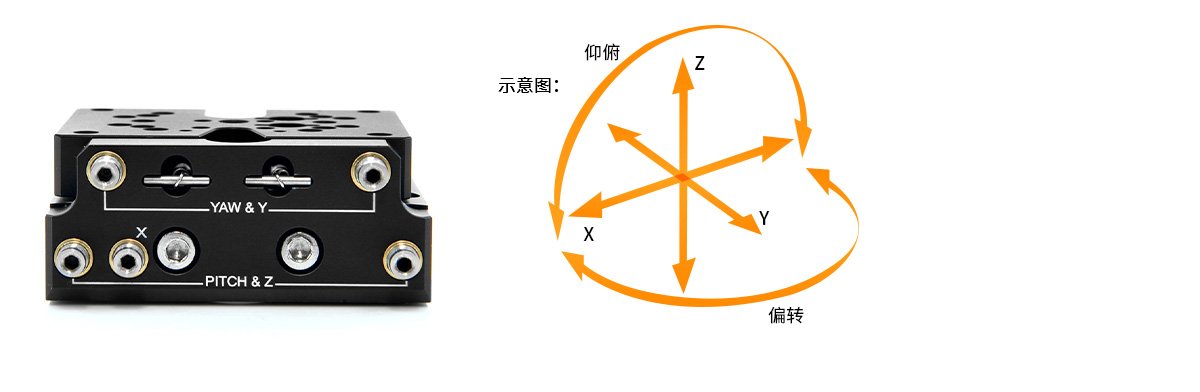

TSX-5位移台上有5个0.25mm螺距的驱动器，五轴调节：俯仰调节±3.5°，偏转调节±5°，线性平移(X、Y和Z轴)3mm。其中，两个驱动器一起控制偏转和Y轴，两个驱动器一起控制俯仰和Z轴，还有一个驱动器控制X轴位置。利用附带2mm手拧扳手调节。
| 型号 | TSX-5 |

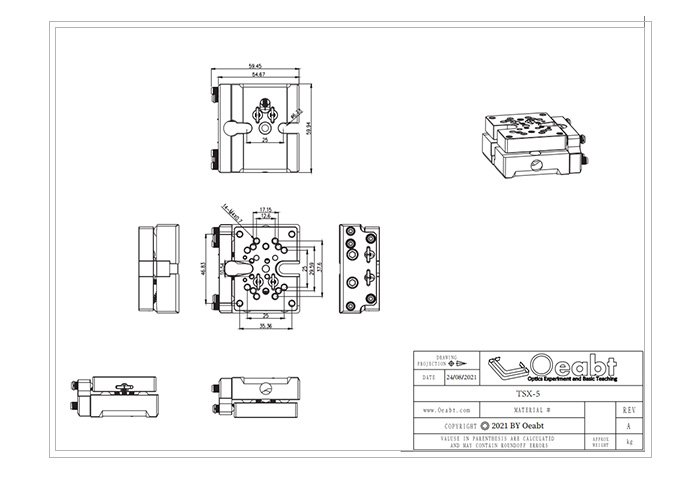

| 规格 | 59.9*58.9*25.7mm |
| 调节范围 | 俯仰调节±3.5°,偏转调节±5°,X、Y和Z轴线性平移3mm |
| 螺纹类型 | 18处M4螺孔,4处M3螺孔,1处M4沉头孔,2处U型槽孔 |
| 负载 | 230.0g |
| 重量 | 203.4g |
| 材质 | 7075铝合金 |
| X | 300 µm/转 |
| Y | 300 µm/转 |
| Z | 300 µm/转 |
| 仰俯±3.5° | 12.3mrad/转 （毫弧度/转） |
| 偏转±5° | 17.6 mrad/转 （毫弧度/转） |
Additional information
| 型号 | TSX-5 |
|---|
