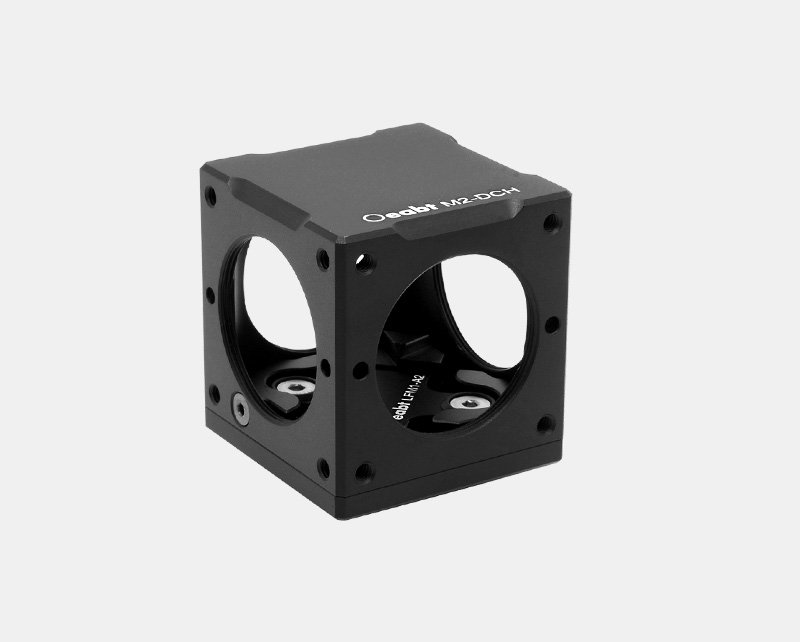

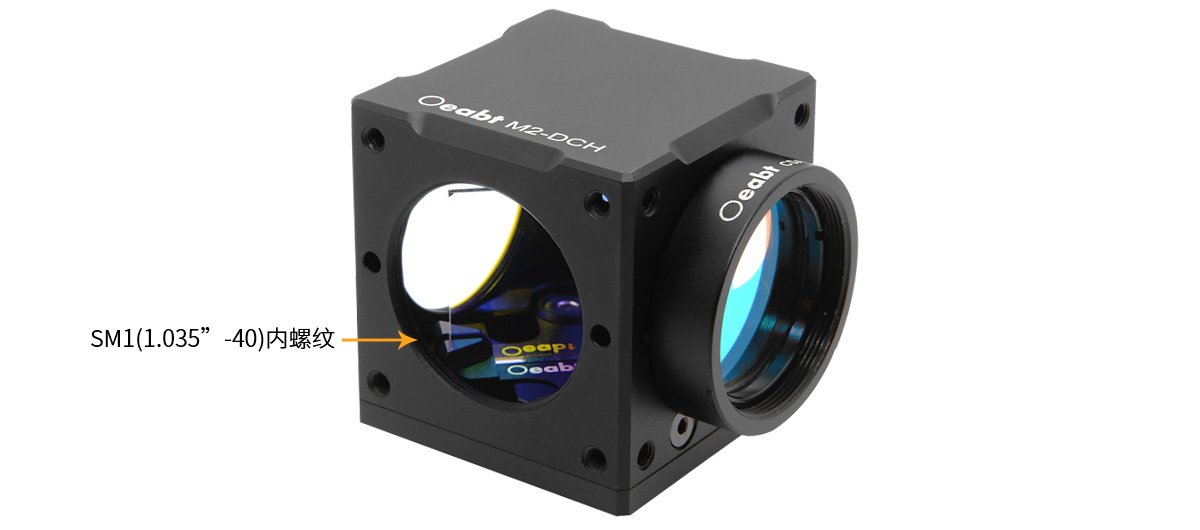

M2-DCH 30mm笼式立方体
$647.00
• 安装最厚为3mm的矩形二向色滤光片或其它元件； • SM1（1.035”-40）中心螺纹孔； • 兼容30mm笼式系统；
Description

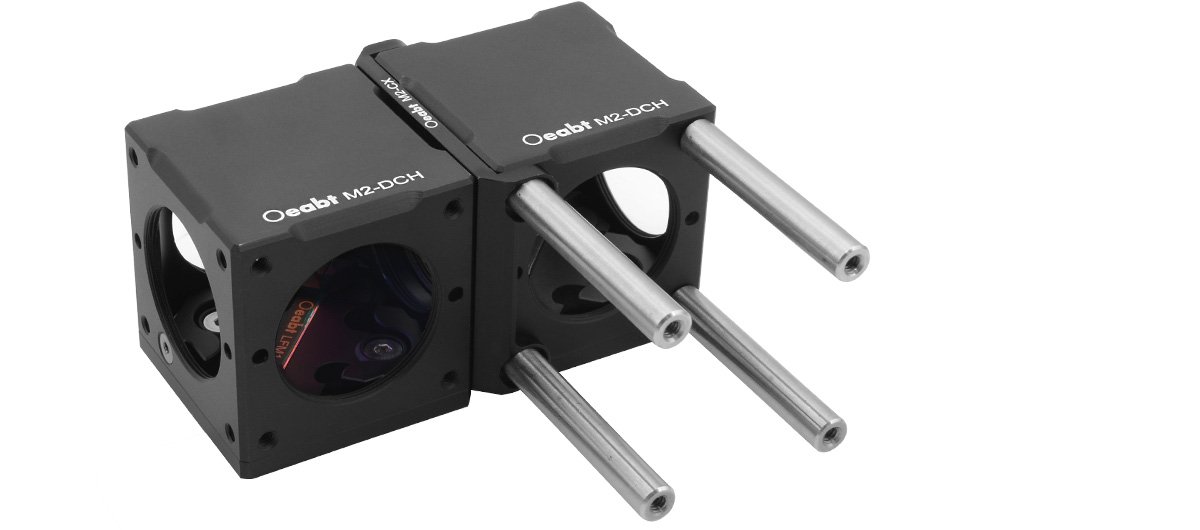

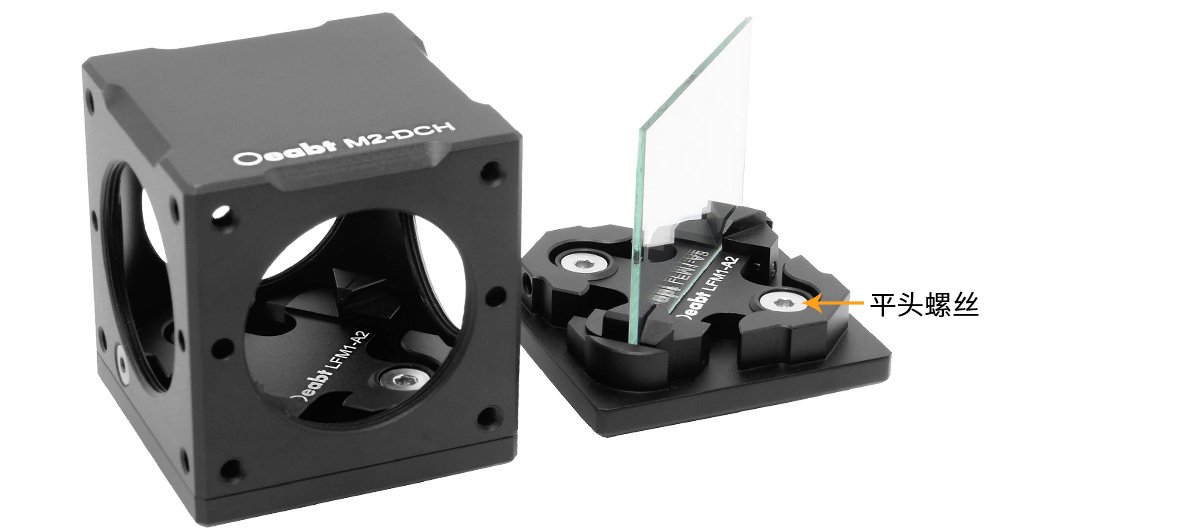

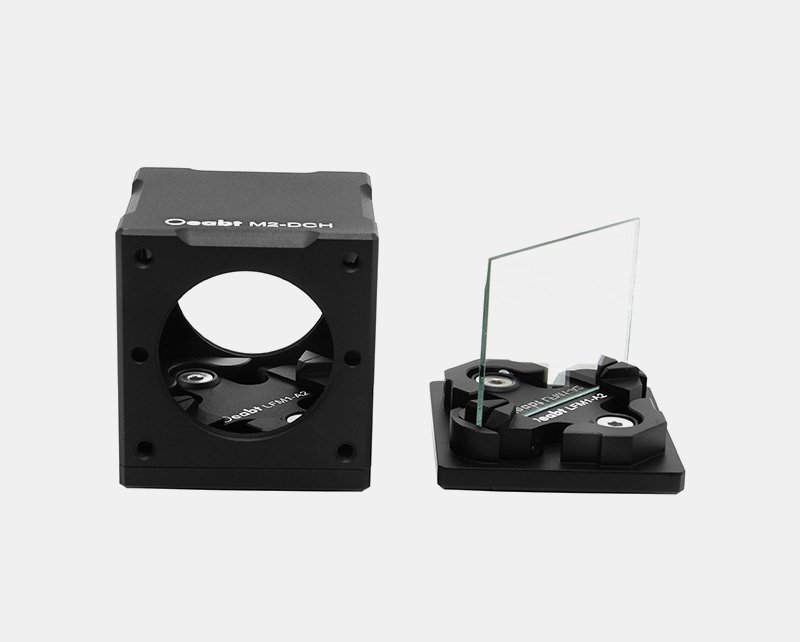

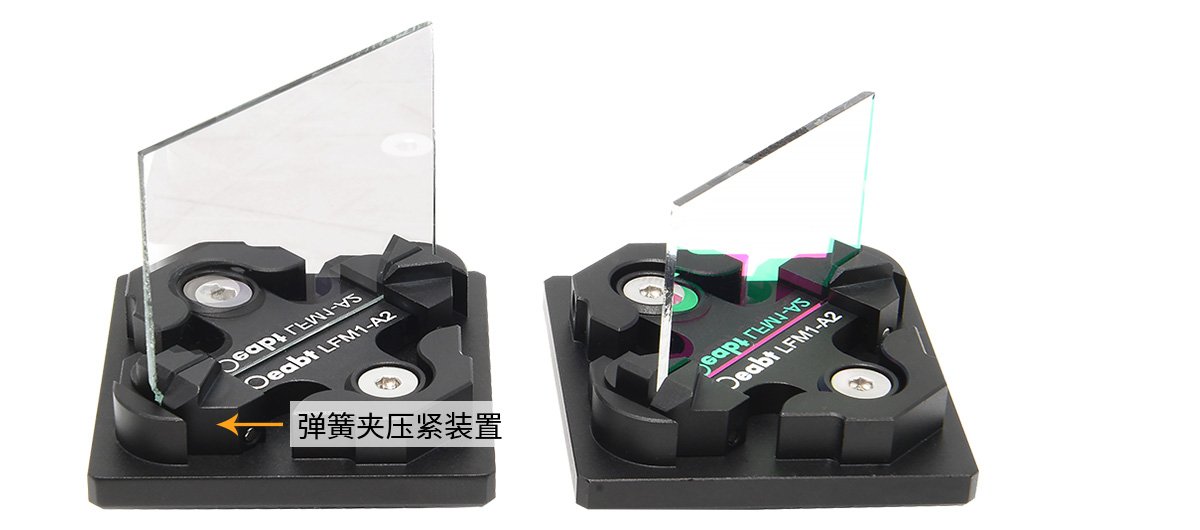

二向色滤光片立方体可以通过内夹具安装最厚为3mm的矩形元件，比如二向色反射镜、分束镜、反射镜或偏振带通滤光片。相较于M2-W系列笼式立方体降低了笼式组件之间的距离，尺寸更为紧凑。
| 型号 | M2-DCH |

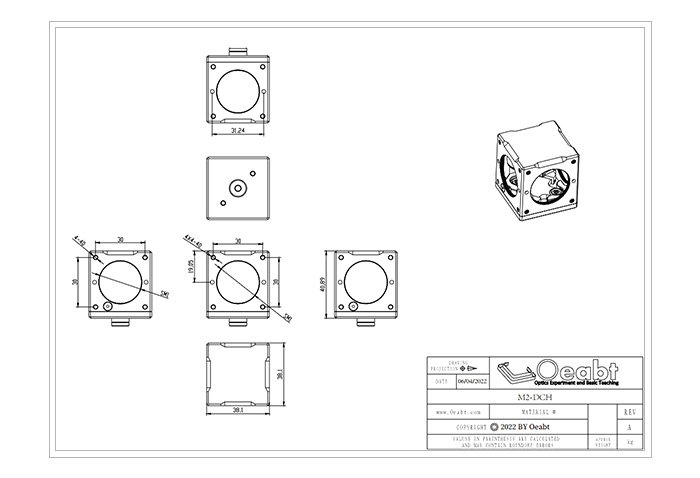

| 规格 | 38.2*38.2*40.9mm |
| 夹持范围 | 25-36mm宽、26mm高和3mm厚的光学元件 |
| 中心孔径 | SM1（1.035”-40）内螺纹 |
| 螺纹间距 | 4-40螺纹，间距30*30mm |
| 重量 | 51.6g |
| 材质 | 7075铝合金 |
Additional information
| 型号 | M2-DCH, M2-CX |
|---|---|
| 材质 | 7075铝合金 |
| 螺纹类型 | /, M4/M6 |
| 中心孔径 | SM1(1.035”-40)内螺纹 |
