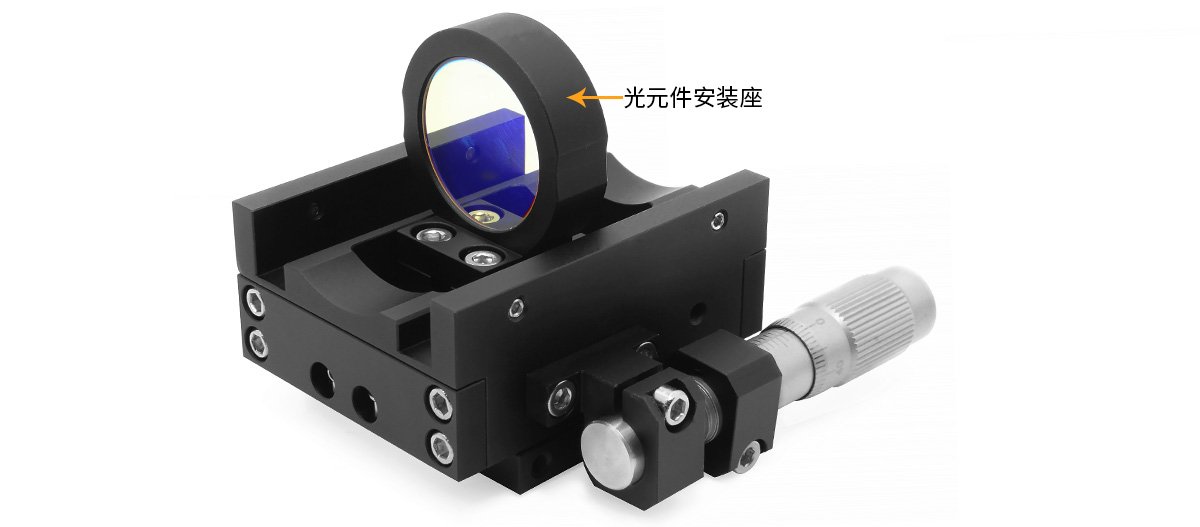

S/N0004 直线笼式镜架
Price range: $1,446.00 through $1,734.00

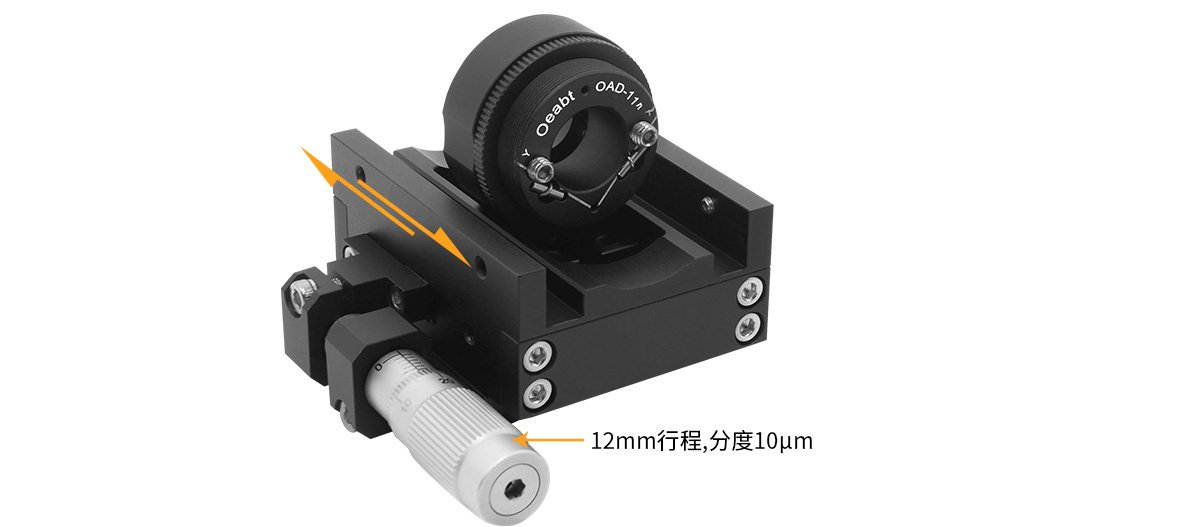

• 在不影响光轴情况下，沿30mm笼式系统平移组件； • 提供12mm手动行程，分度为10μm； • SM1（1.035”-40）螺纹孔；
Description

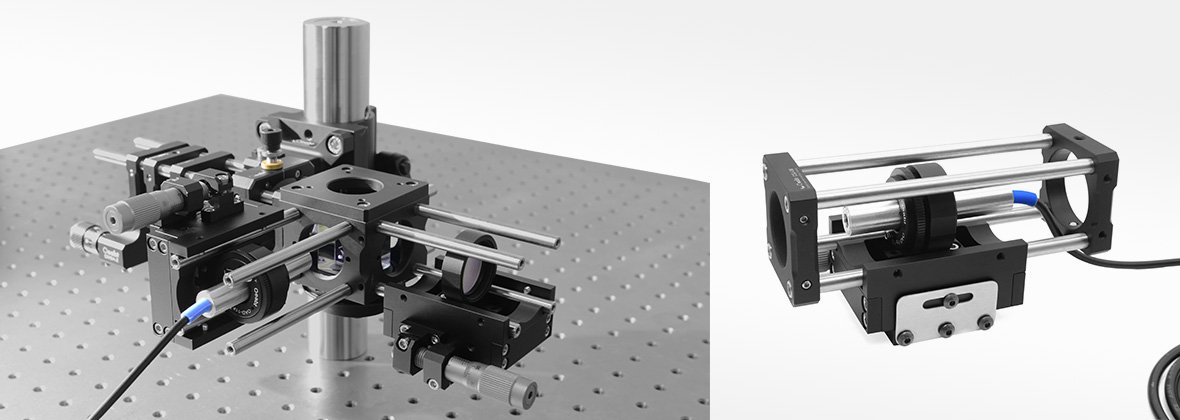

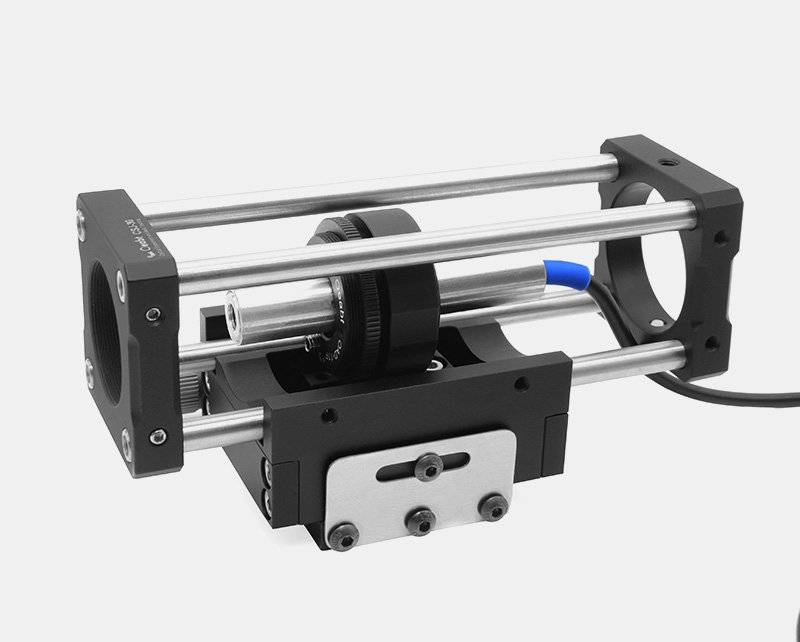

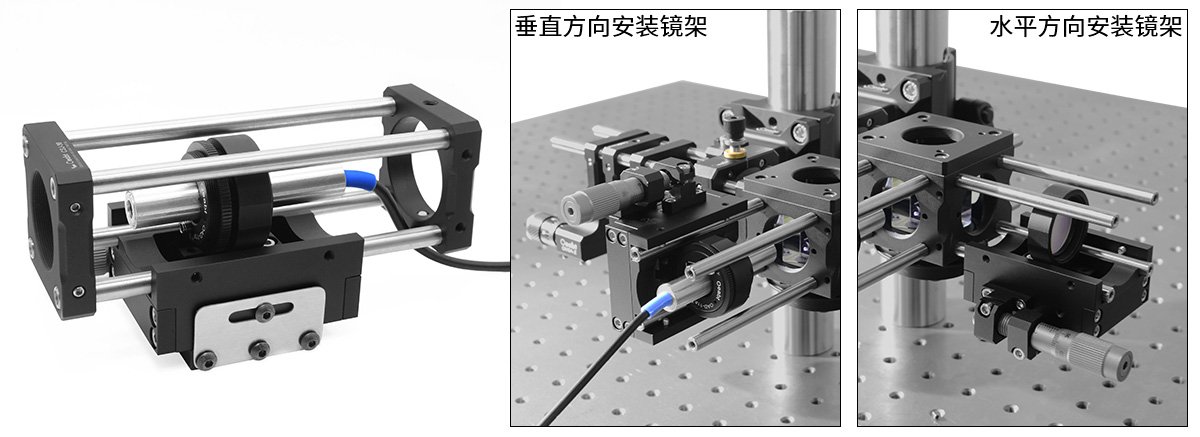

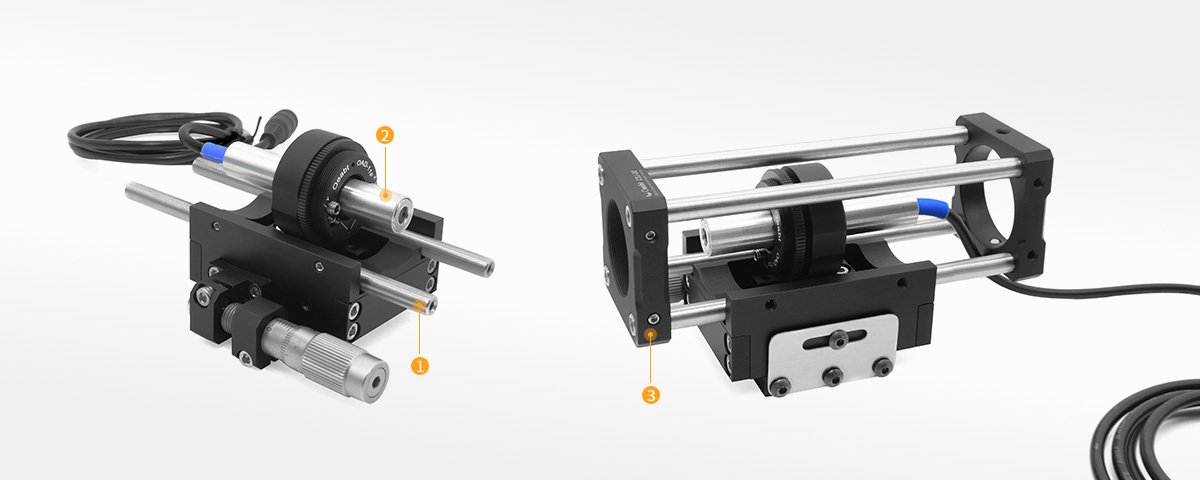

Z轴安装座用于需要沿着笼式系统光轴移动的30mm笼式系统中。可通过安装座上两处凹槽，安装在2根笼杆上，使得固定在位移台的可移动部位的组件沿光轴平移。然后使用2.0mm六角扳手或球头起子拧紧侧边的紧固螺丝，以固定这些笼杆。
| 序列号 | SN0004 |

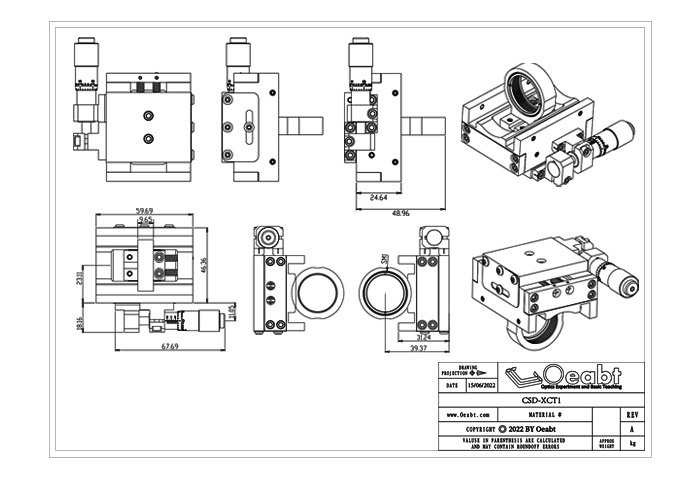

| 规格 | 59.6*46.3*55.8mm |
| 行程范围 | 12mm |
| 分度精度 | 10μm |
| 螺纹类型 | SM1（1.035”-40）内螺纹 |
| 重量 | 211.7g |
| 材质 | 7075铝合金 |

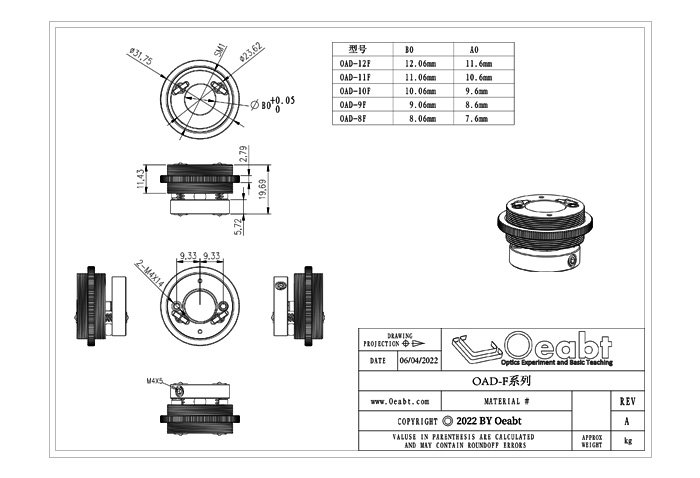

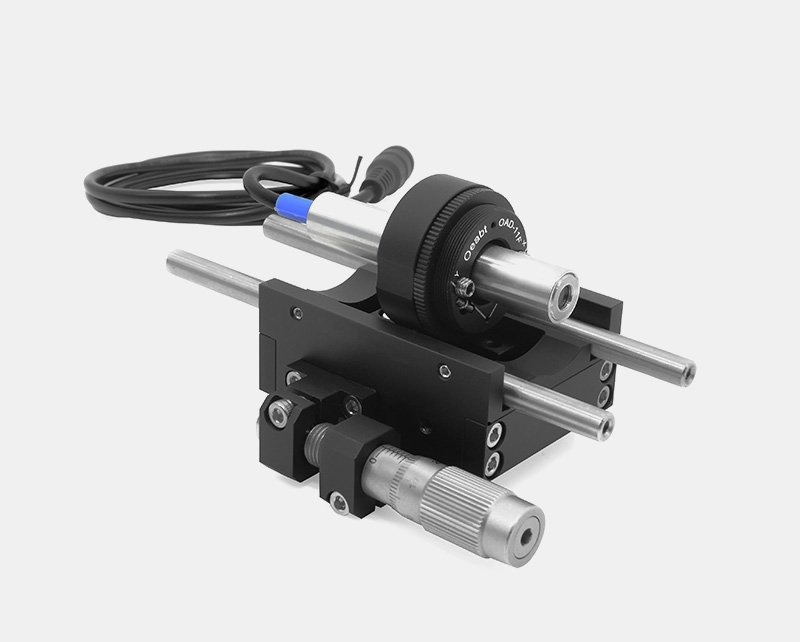

| OAD-F系列 可调准直转接件 | |||||
| 型号 | OAD-8F | OAD-9F | OAD-10F | OAD-11F | OAD-12F |
| 孔径 | Ø8mm | ∅9mm | ∅10mm | ∅11mm | ∅12mm |
| 俯仰/偏转 | ±6° | ±5° | |||
| 螺纹类型 | SM1（1.035”-40）外螺纹 | ||||
| 重量 | 20.6g | 20.0g | 20.0g | 20.0g | 19.4g |
| 材质 | 7075铝合金 | ||||
Additional information
| 型号 | S/N0004, S/N0004+OAD-8F, S/N0004+OAD-9F, S/N0004+OAD-10F, S/N0004+OAD-11F, S/N0004+OAD-12F |
|---|
