CMPV-K1 笼式装配平台套件
Price range: $189.00 through $222.00

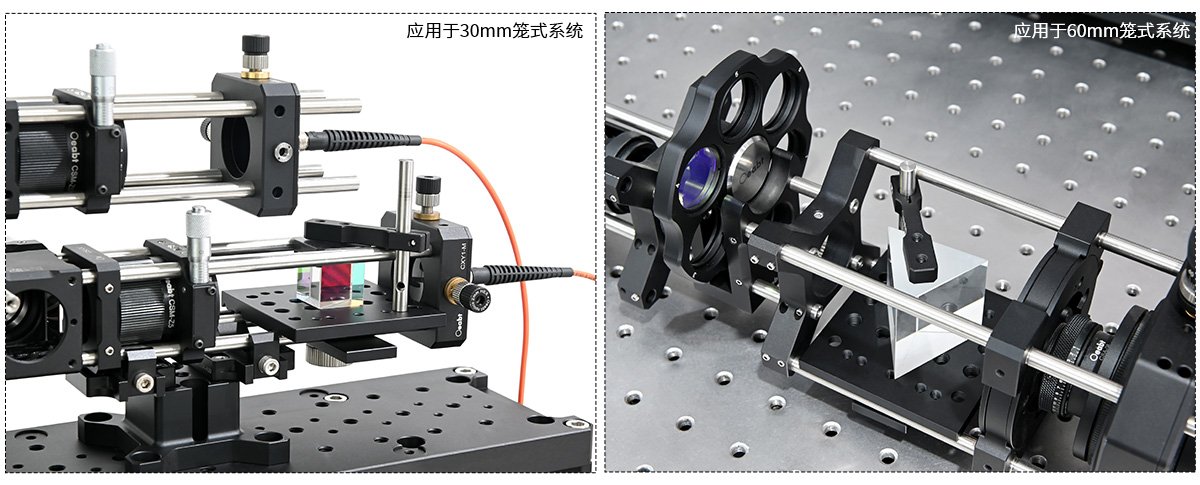

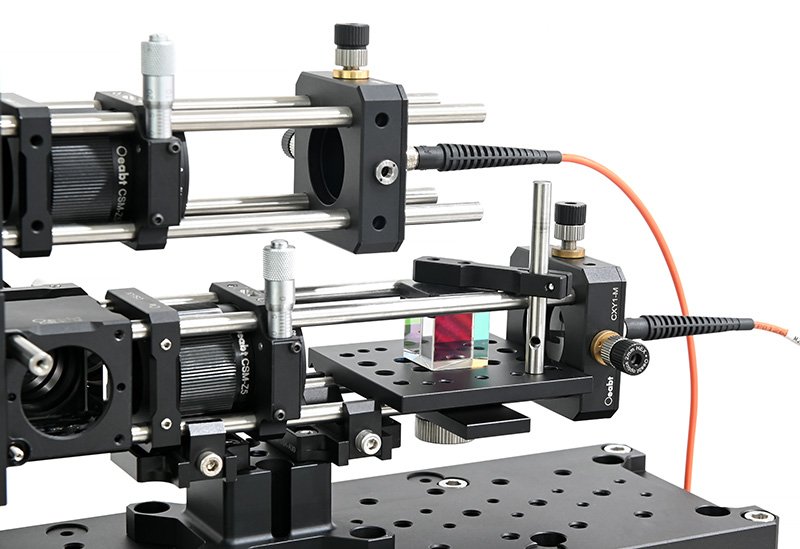

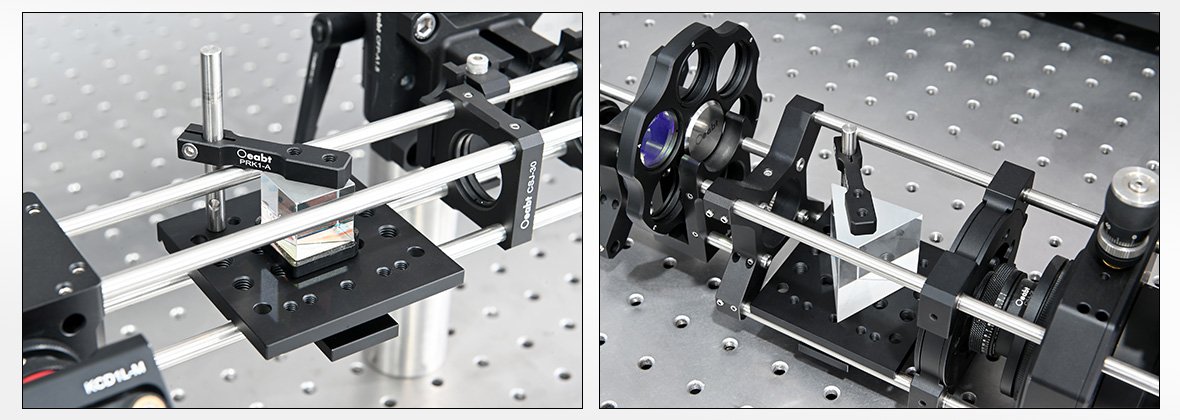

• 光学元件安装座，兼容30、60mm笼式系统； • 压臂提供夹持力，可夹持高度≤53mm的光元件； • 台面M4/M6多螺孔阵列；
Description

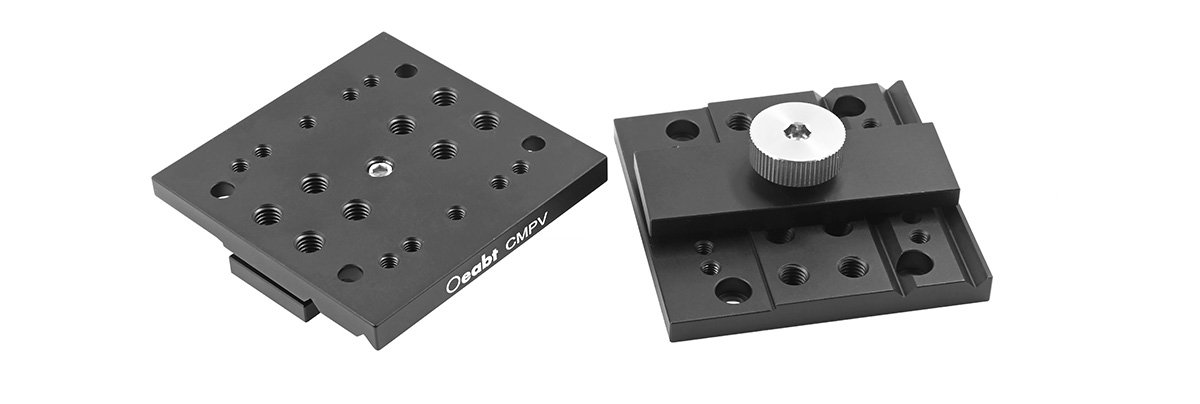

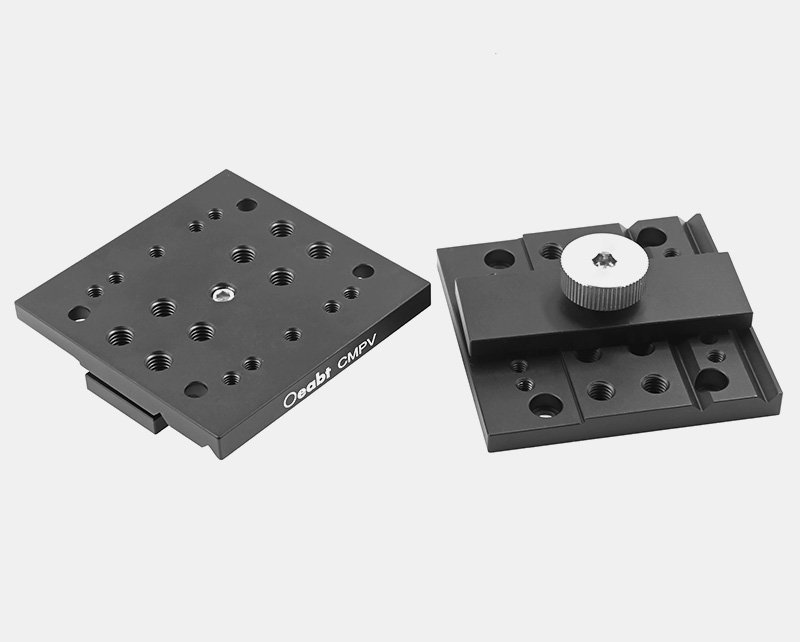

CMPV平台具有通用的M4、M6和M4沉孔阵列，安装板的底面具有两个V形槽，与30/60mm笼式系统兼容，通过手拧旋钮锁紧底板，固定在笼杆上的位置。
| 型号 | CMPV-K1 |

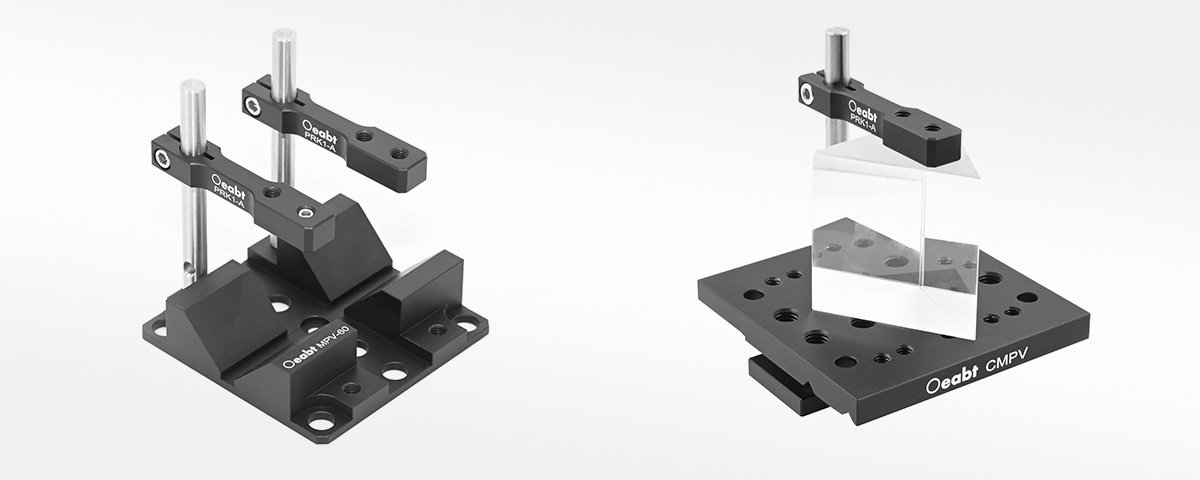

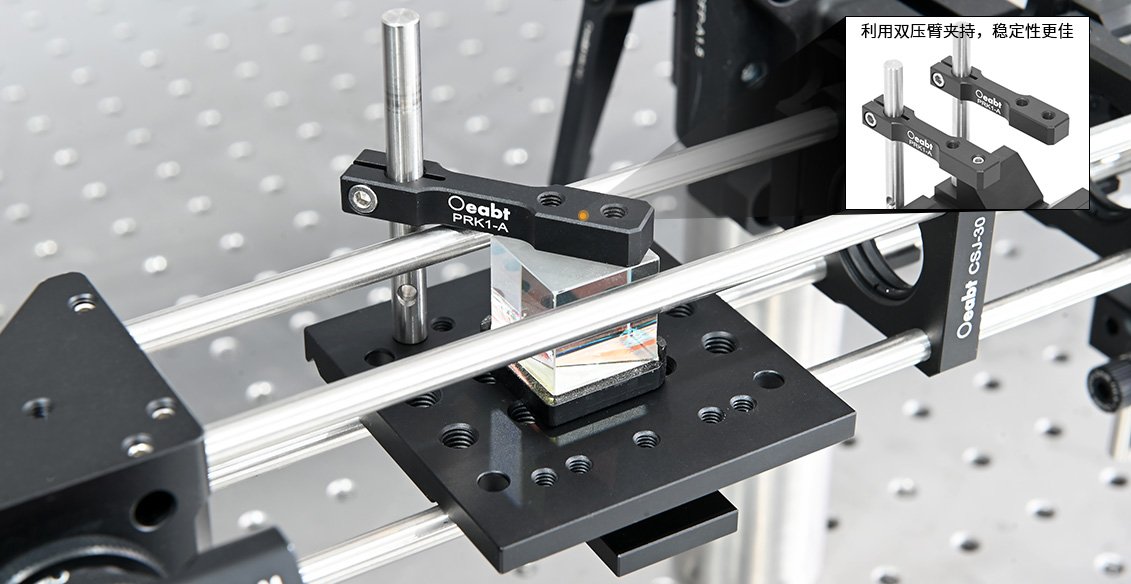

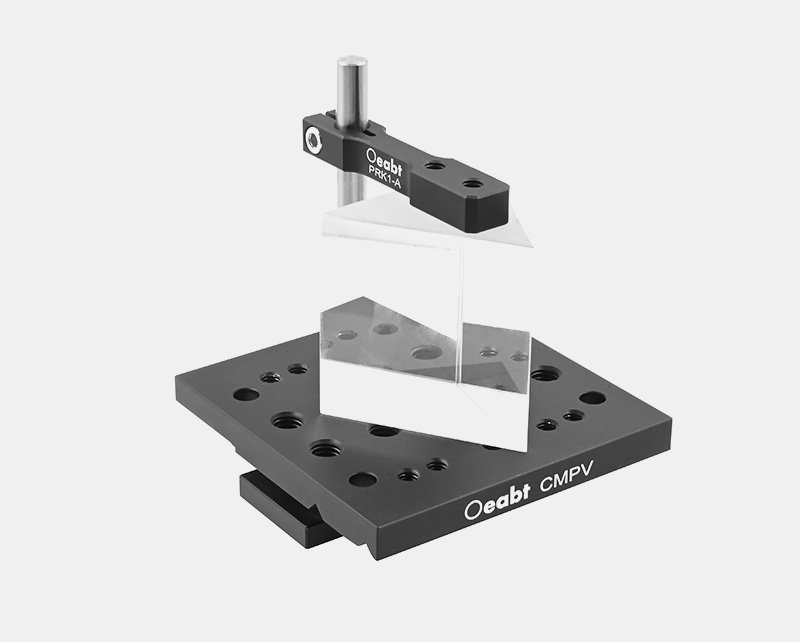

| 组合款 | CMPV装配平台&PRK1-A压臂 |

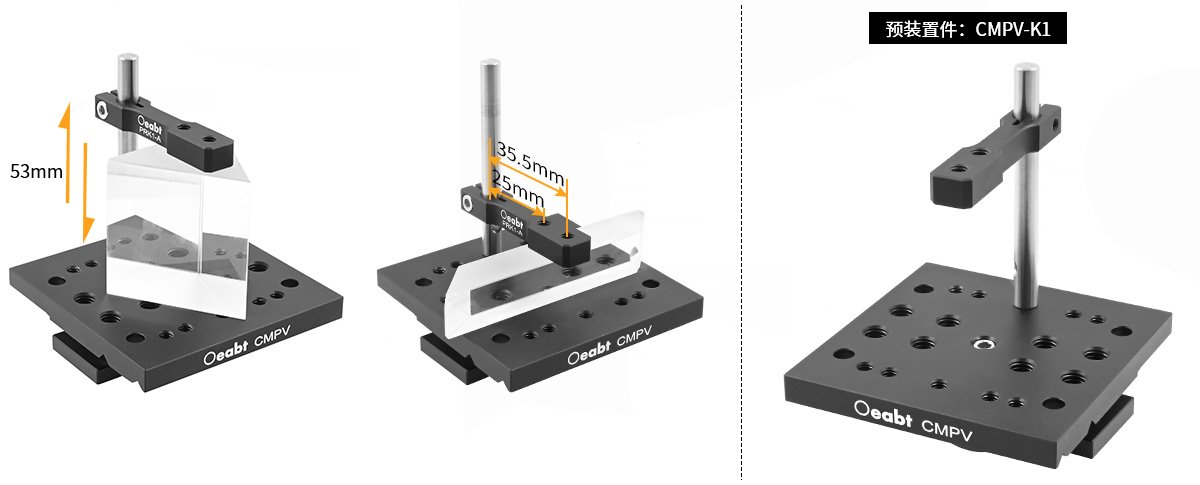

| 夹持高度 | 高度≤53mm |

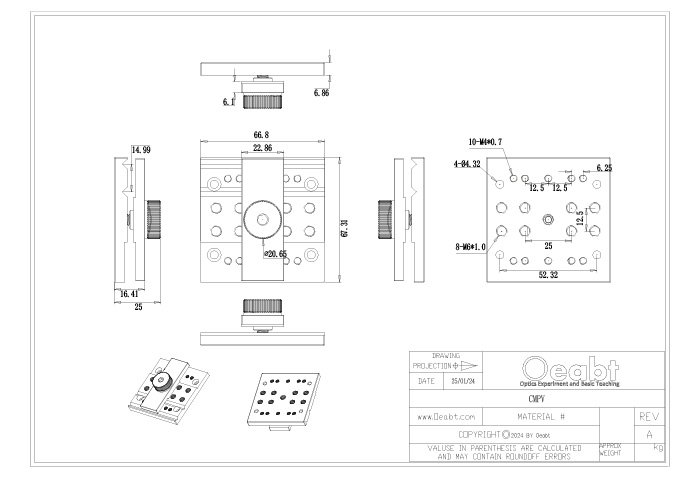

| 型号 | CMPV 笼式装配平台 |

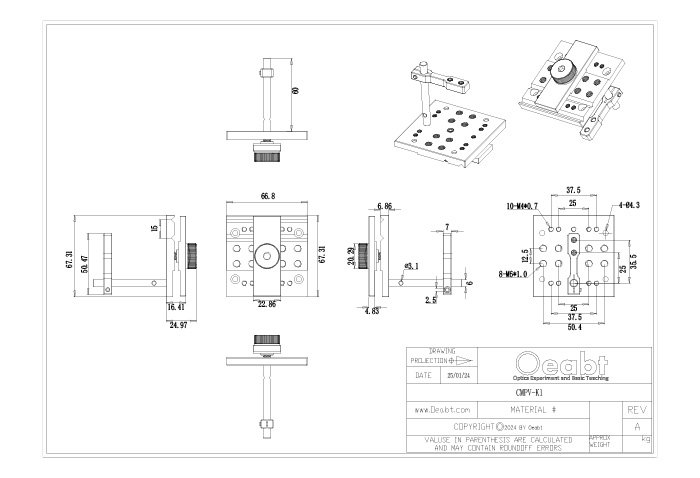

| 规格 | 66.8*67.3*23.6mm |
| 台面尺寸 | 66.8*67.3mm |
| 螺孔类型 | M4*10处，M4*4处（沉头孔）M6*8处 |
| 重量 | 107.7g |

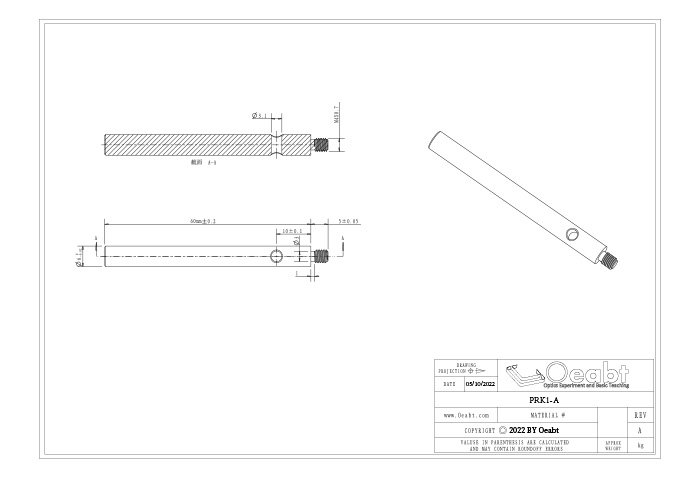

| 型号 | PRK1-A Ø6mm压臂 |
| 接杆高度 | 60.0mm |
| 夹持高度 | ≤53mm |
| 螺纹类型 | M4 |
| 重量 | 20.0g |
Additional information
| 型号 | CMPV-K1, PRK1-A, CMPV |
|---|
