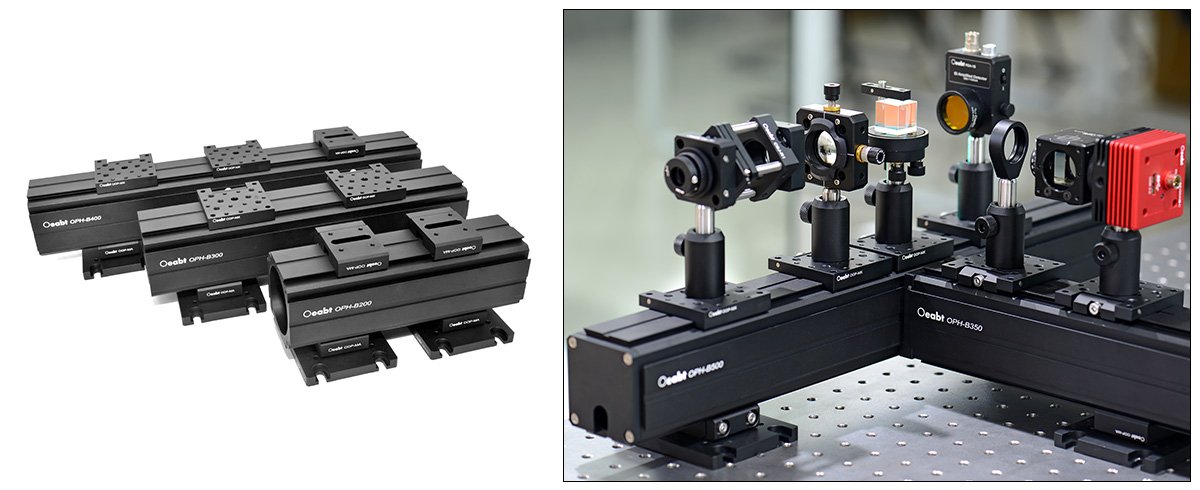

OPH-B系列 66mm光学导轨/固定支架
Price range: $124.00 through $788.00
• 66mm光学导轨； • 导轨长度范围为200mm-750mm； • 灵活性高，适应性强, 提供多种装置安装选项；
Description

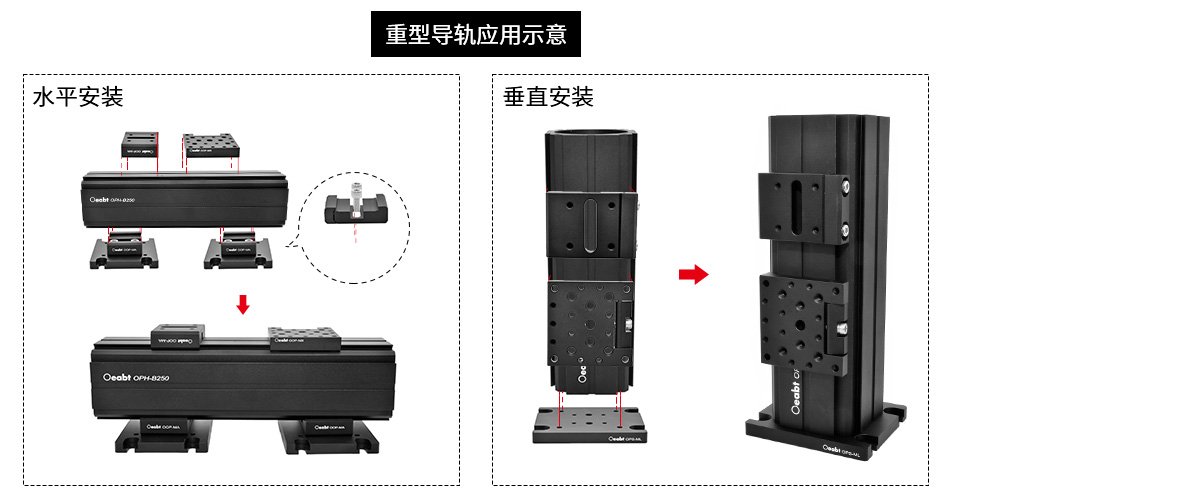

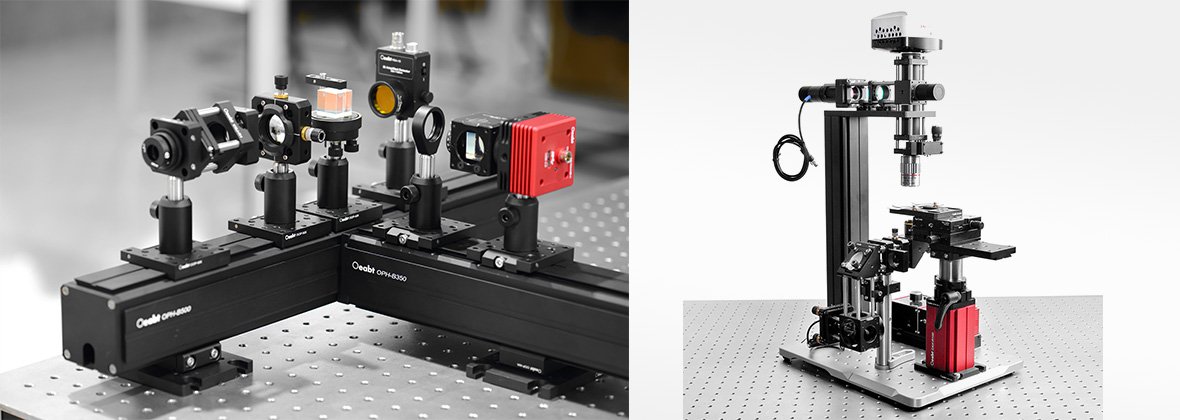

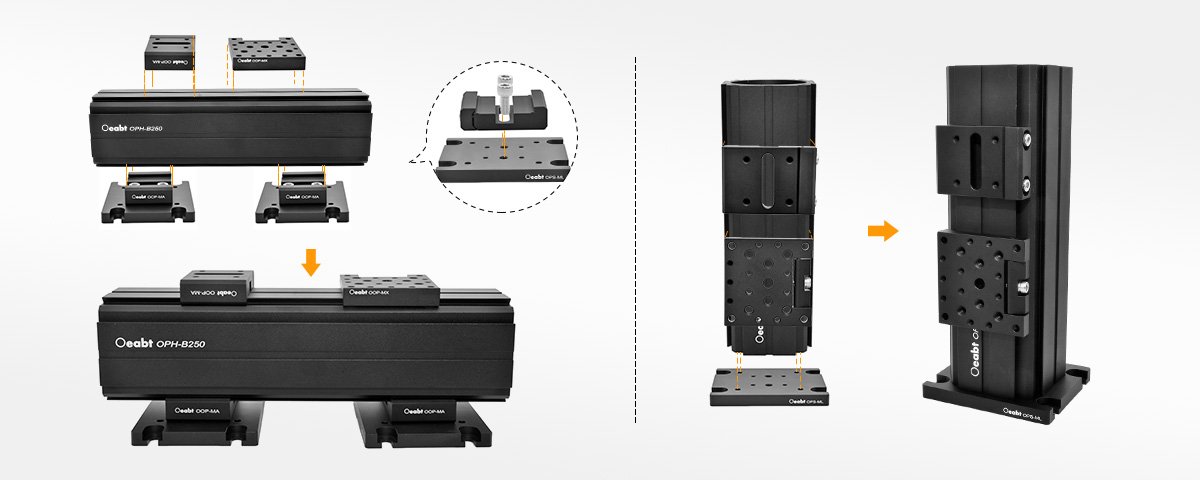

OPH-B系列光学导轨/支架为构建稳定、坚固的三维机械装配提供了必要的构建模块。灵活性高，适应性强, 提供多种装置安装选项。
| 66mm光学导轨 | |||
| 型号 | 规格 | 重量 | 公共参数 |
| OPH-B200 | 200*66*66mm | 818.9g |
中心通孔:Ø55mm; 螺纹类型:两端各4处M4; 材质:6063铝合金; |
| OPH-B250 | 250*66*66mm | 1023.6g | |
| OPH-B300 | 300*66*66mm | 1230.0g | |
| OPH-B350 | 350*66*66mm | 1433.1g | |
| OPH-B400 | 400*66*66mm | 1644.1g | |
| OPH-B500 | 500*66*66mm | 2048.2g | |
| OPH-B600 | 600*66*66mm | 2456.7g | |
| OPH-B750 | 750*66*66mm | 3089.0g | |
| OPH-R300-N | 300*66*66mm | 1227.2g |
中心通孔:Ø55mm;凹槽:15.9*18.0mm; 螺纹类型:两端各4处M4; 材质:6063铝合金; |
| OPH-R400-N | 400*66*66mm | 1640.1g | |
| OPH-R500-N | 500*66*66mm | 2043.2g | |
| 导轨长度 | 公差数值 |
| 200-250mm | ≤0.1mm |
| 300-400mm | ≤0.2mm |
| 500-600mm | ≤0.35mm |
| 750-1000mm | ≤0.5mm |
Additional information

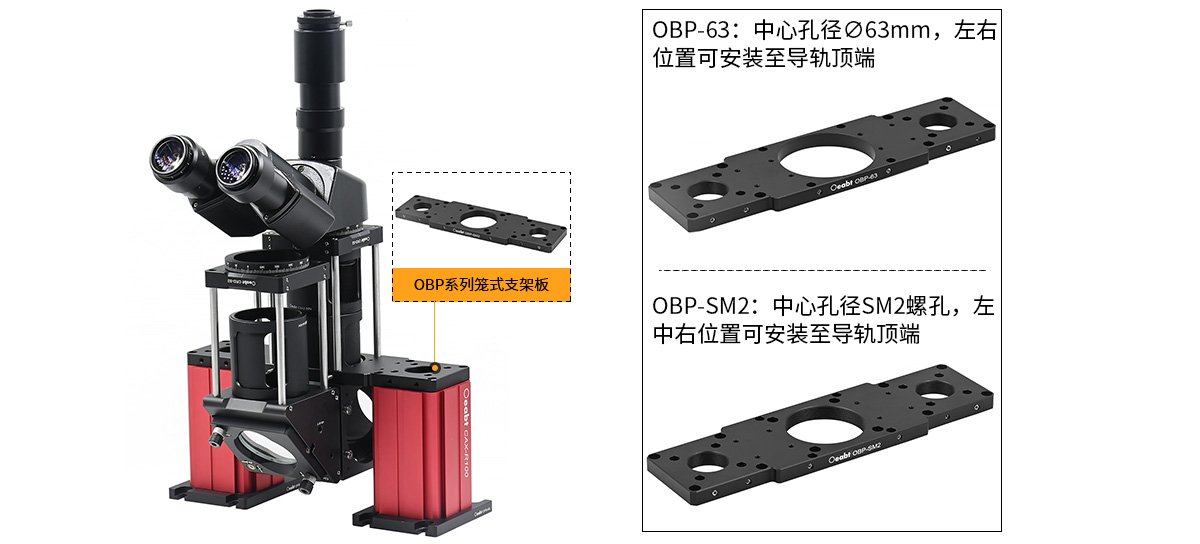

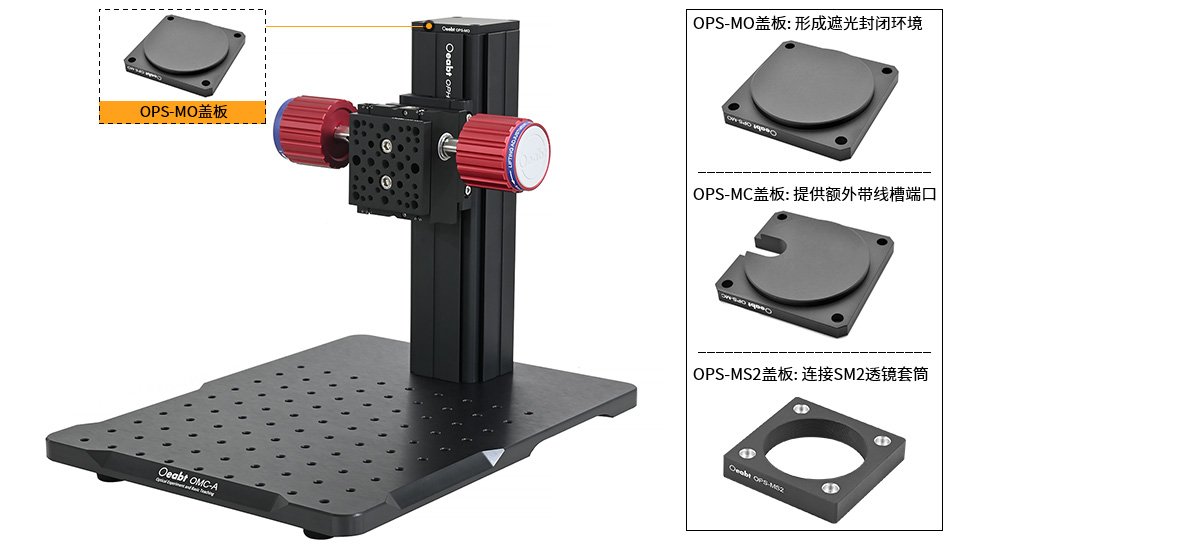

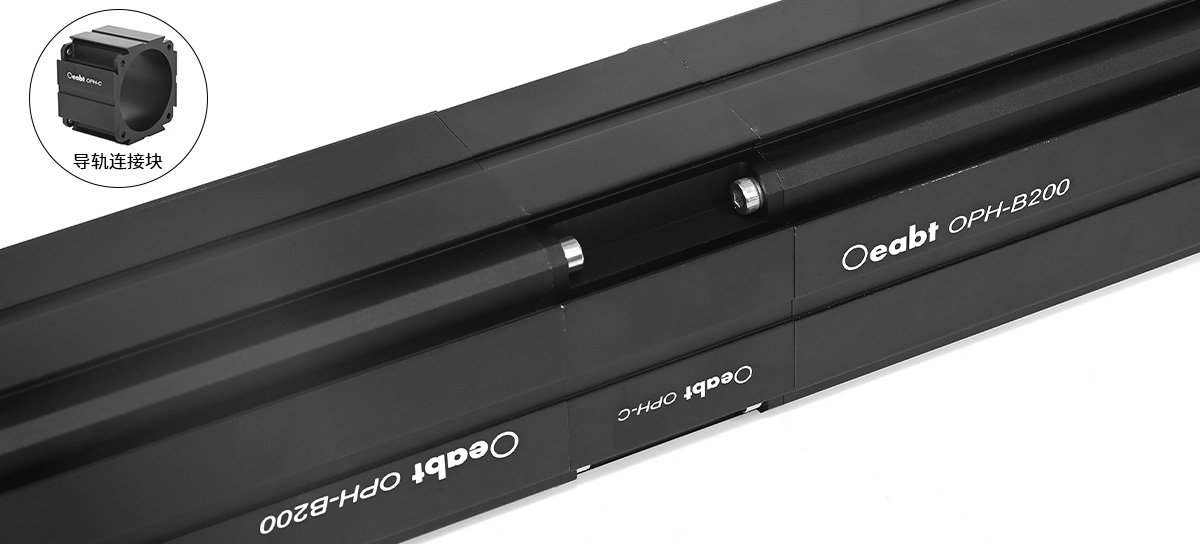

| 型号 | OPH-B200, OPH-B250, OPH-B300, OPH-B350, OPH-B400, OPH-B500, OPH-B600, OPH-B750, OPH-R300-N, OPH-R400-N, OPH-R500-N, OOP-MA, OOP-MX, OOP-MO2, OPS-MO, OPS-MC, OPS-MS2, OPS-ML, OOP-MA&OPS-ML, OHD-35, OHD-SM1, OHD-SM1A, OBP-SM2, OBP-63, OPH-C |
|---|---|
| 材质 | 6063铝合金, 7075铝合金 |
| 安装孔直径 | M4*4处,Ø6.7*32.1mm沉头槽, Ø6.7*25.4mm沉头槽, SM1（1.035”-40）*2处，SM2（2.035”-40）*1处, SM1（1.035”-40）*2处；Ø63mm*1处 |
