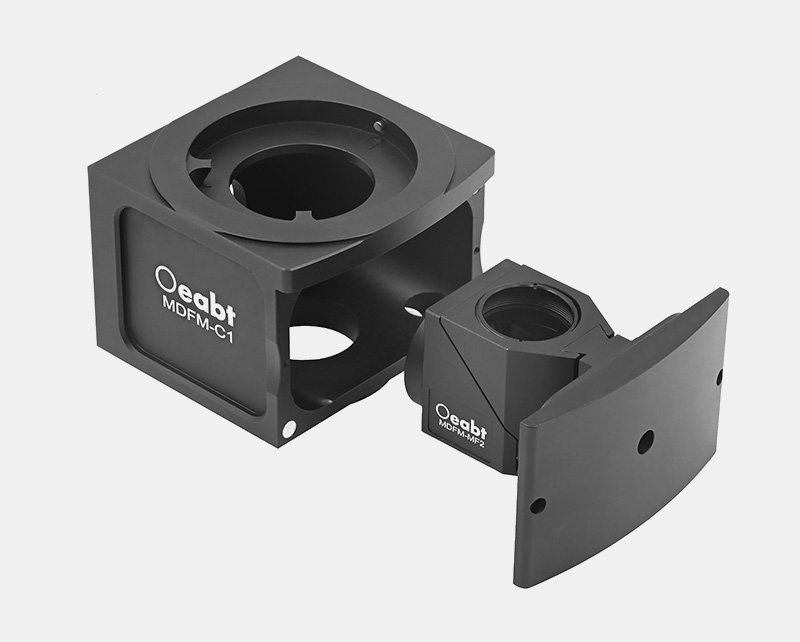

MDFM-C 快拆式荧光立方模块
Price range: $305.00 through $1,025.00
• 可自搭建落射照明式光路； • 磁性门盖兼容MDFM-MF2、Olympus的滤光片立方； • 堆叠式设计，顶部和底部分别有Ø51mm的公母头燕尾块；
Description

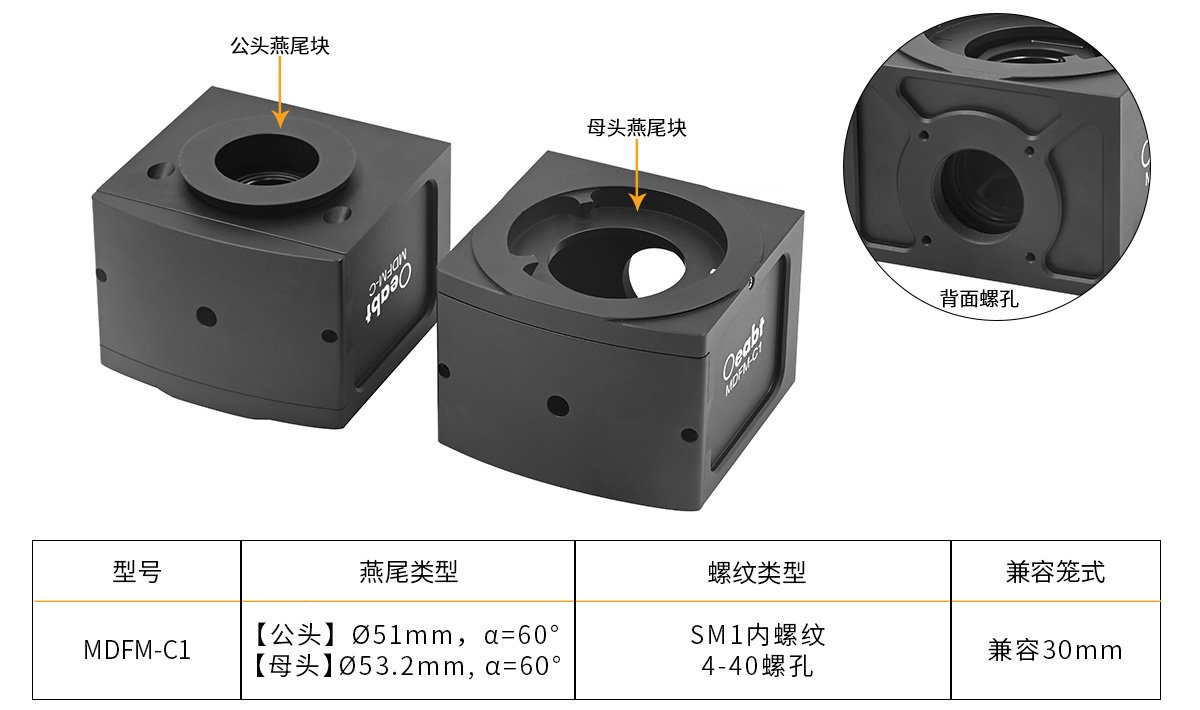

MDFM-C显微荧光立方内部可以安装1个滤光片立方，顶部和底部的公母头燕尾块可以相互匹配，实现立方模块的堆叠应用。背面具有SM1螺孔和间距30mm的4-40螺孔。
| 快拆式显微荧光立方外壳 | |
| 型号 | MDFM-C1 |
| 规格 | 78.3*80.0*63.4mm |

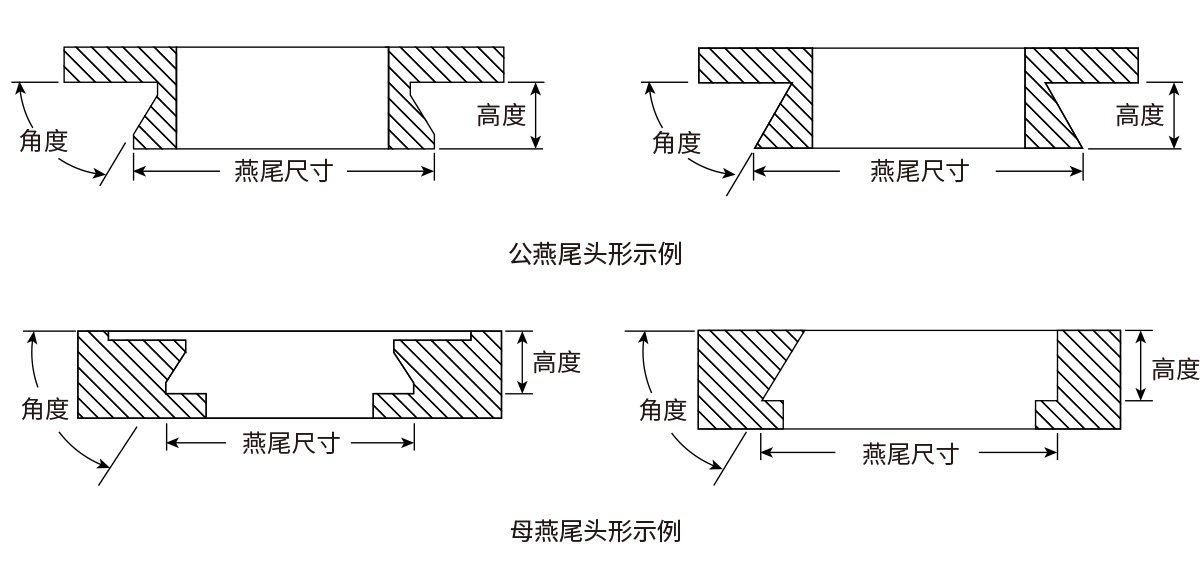

| 燕尾类型 | 【公头】Ø51mm，α=60°；【母头】Ø53.2mm，α=60° |
| 螺纹类型 | SM1（1.035”-40）内螺纹；4-40*4处，间距30mm |
| 重量 | 367.3g |
| 材质 | 7075铝合金 |
| 显微荧光立方内胆 | |
| 型号 | MDFM-MF2 |
| 规格 | 48.3*33.0*39.0mm |
| 安装镜片 | Ø25.4mm，厚度≤5mm的激发滤光片和发射滤光片 |
| 尺寸≤25.2*36.0*1.2mm的二向色镜 | |
| 螺纹类型 | SM1（1.035”-40）内螺纹 |
| 重量 | 51.6g |
| 材质 | 7075铝合金 |
Additional information
| 型号 | MDFM-C, MDFM-C1, MDFM-MF2 |
|---|---|
| 安装孔直径 | SM1（1.035”-40）内螺纹, SM1（1.035”-40）内螺纹；4-40*4处，间距30mm |
