LED-OF系列 光纤耦合LED【单支:LED光源】
Price range: $1,097.00 through $2,275.00
• 提供白光4000K，冷白光6200K的LED； • SMA插口非常适用于多模光纤跳线； • 热性能经过优化以实现稳定的功率输出；
Description

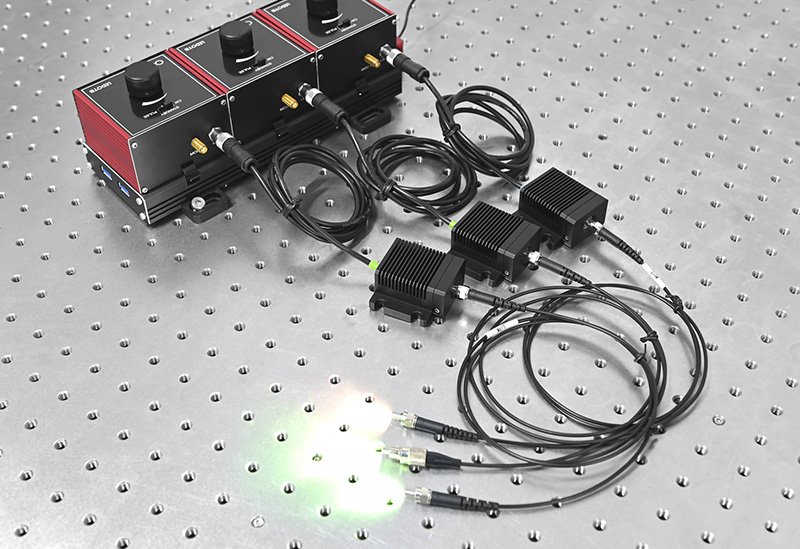

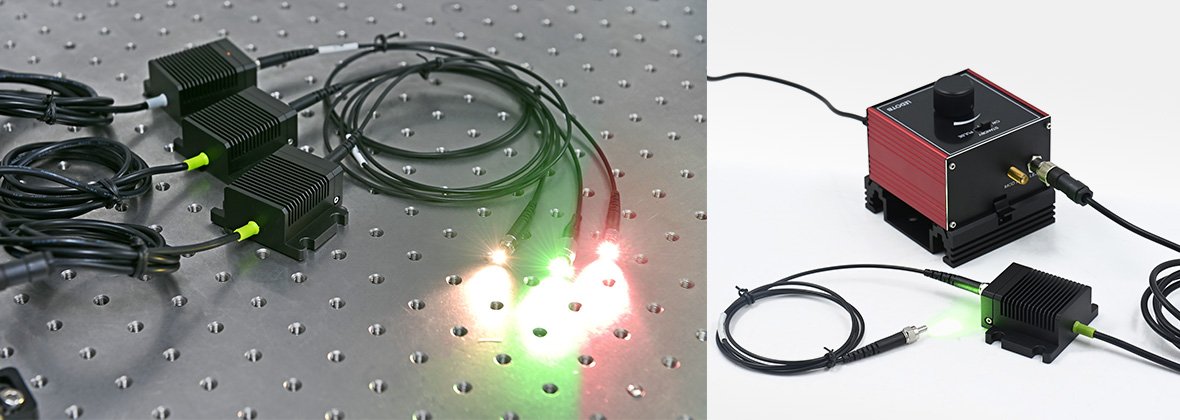

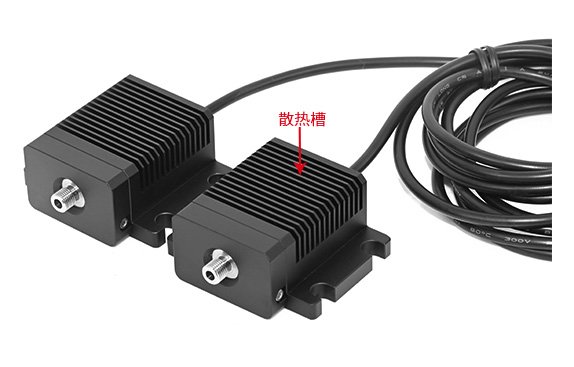

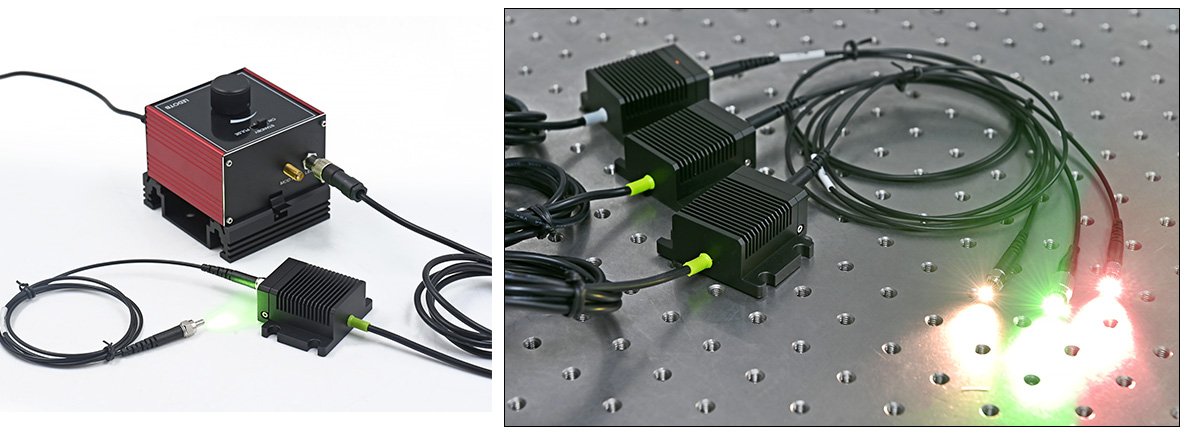

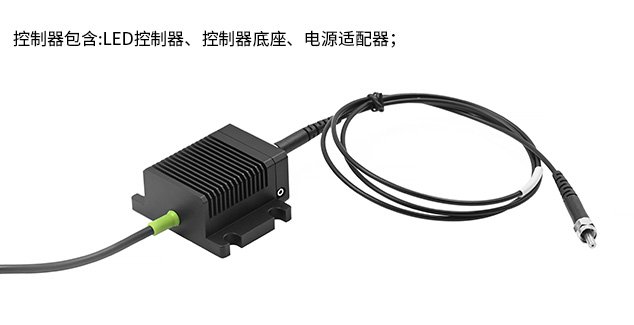

光纤耦合LED通过对接耦合技术将单个LED与光纤耦合起来，包含一个安装在散热器上的LED，并带有SMA光纤接头，使用SMA接头的多模光纤跳线可以将其集成到光学装置中。
|

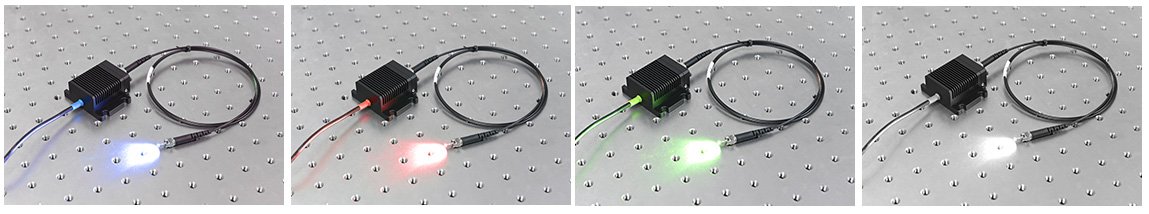

型号 |
输出波长区间 |
典型Ø1mm光纤输出功率 |
|
LED-OF-454 |
446-462nm |
≤90mW |
|
LED-OF-520 |
512-528nm |
≤90mW |
|
LED-OF-536 |
528-545nm |
≤90mW |
|
LED-OF-630 |
622-638nm |
≤90mW |
| LED-OF-MAX6K-5 | 色温6000-6500K，电功率5W | ≤125mW |
|
LED-OF-MAX6K-10 |
色温6000-6500K，电功率10W |
≤205mW |
注：①光纤模组测试条件：SMA跳线为Ø1mm塑料光纤芯，长度1m。用光功率积分球测得；②光功率测试条件：裸灯珠紧贴积分球光功率计测试所得，最终输出功力取决于聚焦的方案；
|

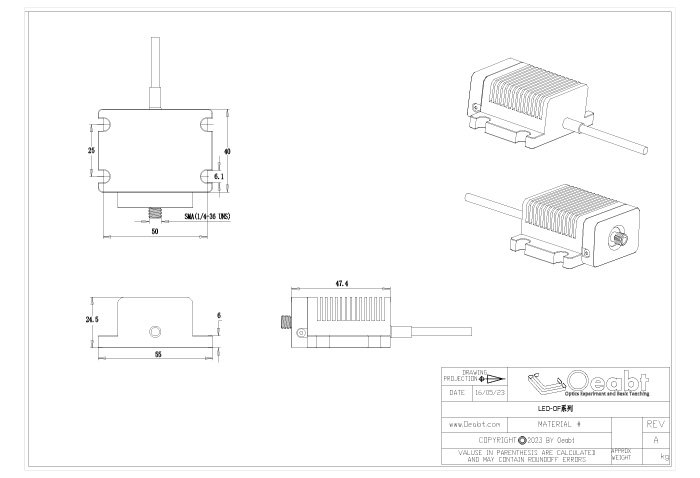

外壳尺寸 |
36*47.5*24.2mm（不含底板） |
|
|
电功率 |
5W |
10W |
|
电流 |
390mA |
860mA |
|
电压 |
12V |
|
|
接头类型 |
SMA接口 |
|
|
光斑形状 |
散斑 |
|
|
光纤材质 |
塑料 |
|
|
光纤长度 |
1m |
|
|
外壳材质 |
环保铝件 |
|
|
工作温度 |
0℃~60℃ |
|
|
重量 |
134.9g |
|
Additional information
| 型号 | LED-OF-454, LED-OF-520, LED-OF-536, LED-OF-630, LED-OF-MAX6K-5, LED-OF-MAX6K-10, LED-OF-454（一套）, LED-OF-520（一套）, LED-OF-536（一套）, LED-OF-630（一套）, LED-OF-MAX6K-5 一套, LED-OF-MAX6K-10 一套 |
|---|
