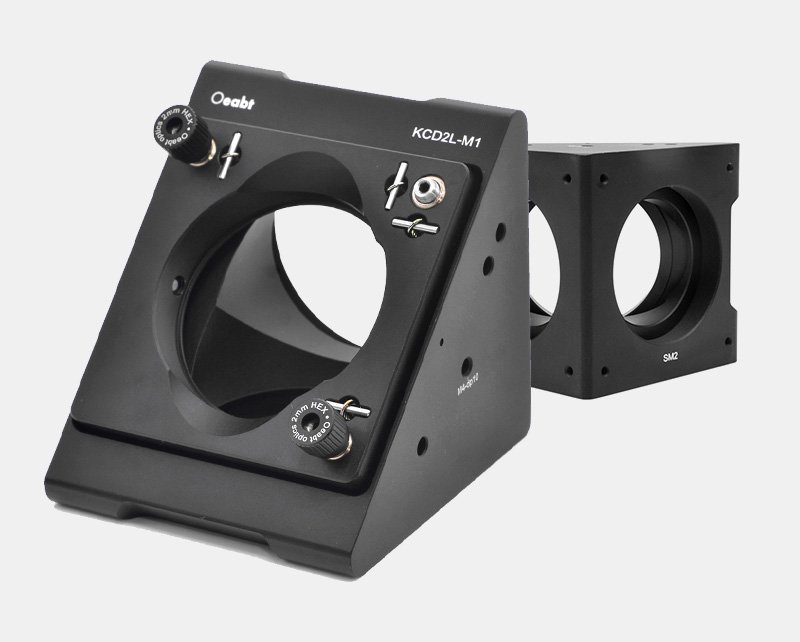

KCD2L-M1 60mm笼式直角调整架
$545.00
• 兼容Ø2英寸（Ø50.8mm）的光学元件相对于光轴以45°角安装； • 提供±4º俯仰和倾斜调节； • 兼容60mm笼式系统和SM2 (2.035″-40)螺纹；
Description

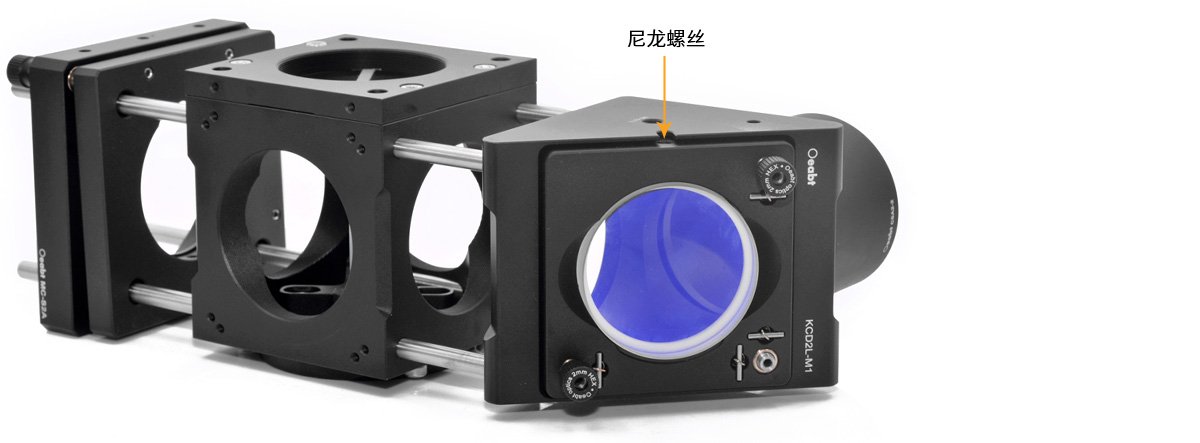

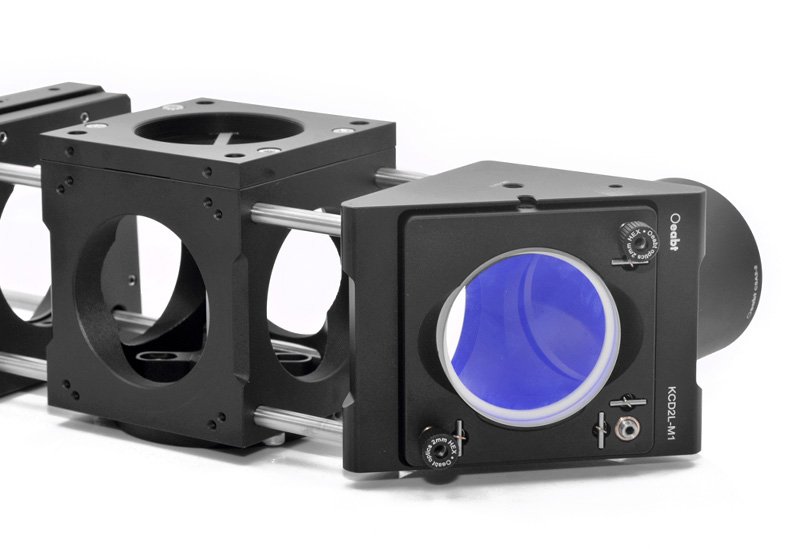

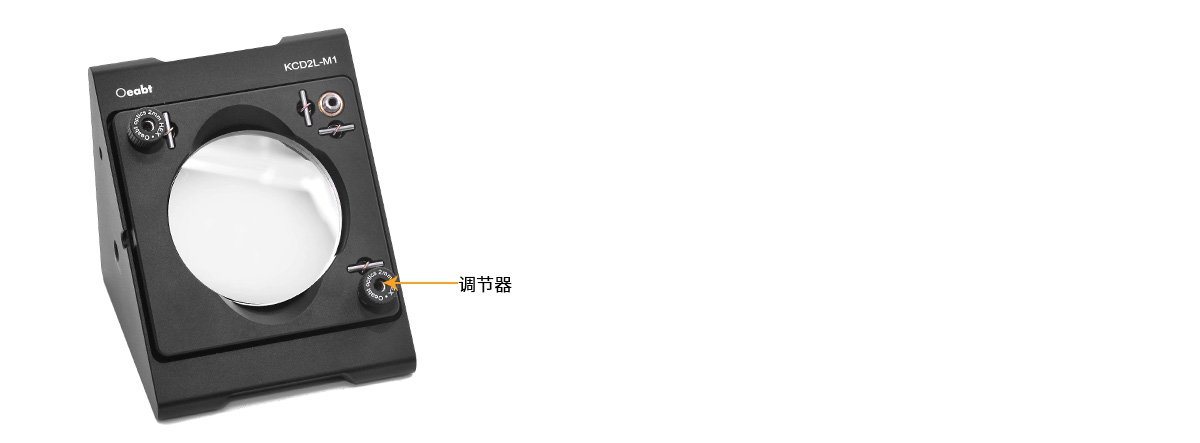

笼式直角可调安装架为平均水平位置处于45°角安装在安装板中的光学元件提供±4°的俯仰和倾斜调节。安装板可兼容Ø2英寸(Ø50.8mm)的光学元件，安装镜片厚度不得薄于4mm。调整座具有8个4-40螺孔或8个Ø6mm通孔，它们的间隔匹配我们的60mm笼式系统，将两个这些直角笼式安装座有效地连接、调节和锁定在笼式系统内。

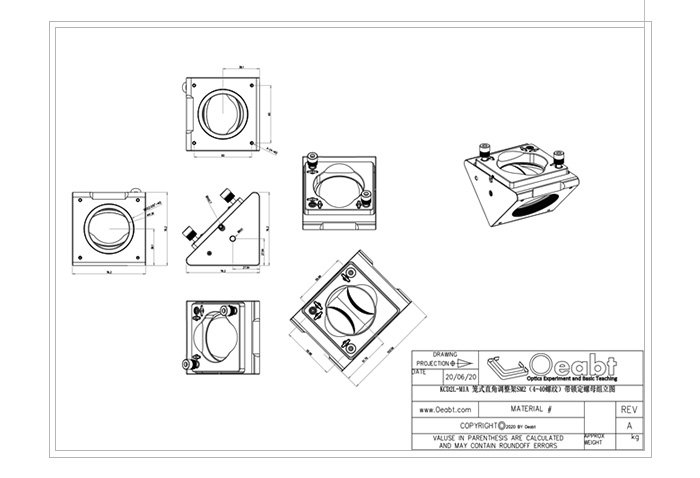

| 60mm笼式直角调整架 | |
| 规格 | 76.2*76.2*76.2mm |
| 端口孔径 | Ø50.9mm光滑端口/SM2螺纹端口 |
| 调节范围 | 仰俯倾斜±4° |
| 通孔间距 | 60mm*60mm |
| 螺纹类型 | M4/M6 |
| 材质 | 7075铝合金 |
| 型号 | 参数 |
| KCD2L-M1 (可锁定) | 连接杆孔径:4-40螺纹; 重量:434.4g; | |
| KCD2L-M2 (可锁定) | 连接杆孔径:Ø6mm通孔; 重量:433.4g; | |
Additional information
| 型号 | KCD2L-M1, KCD2L-M2 |
|---|---|
| 材质 | 7075铝合金 |
