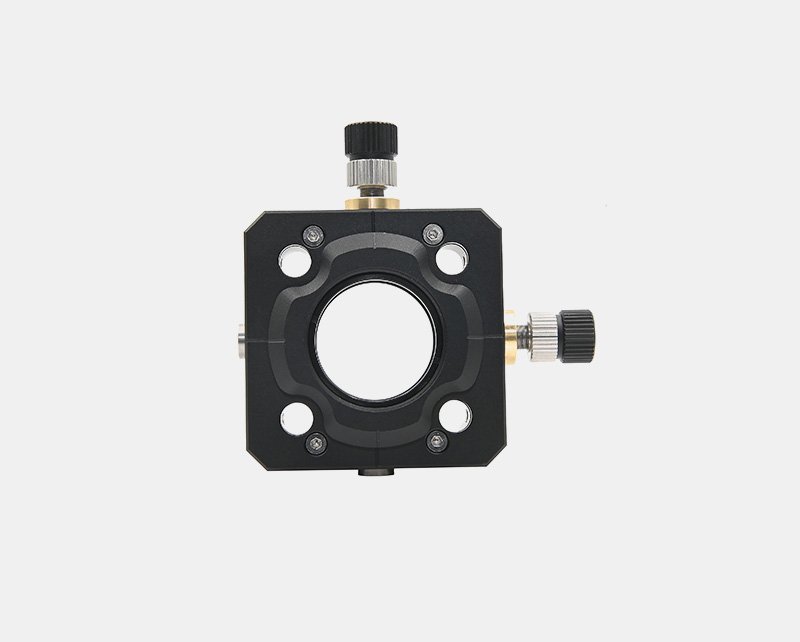

CXY1-M 笼式XY平移调整架
Price range: $521.00 through $783.00

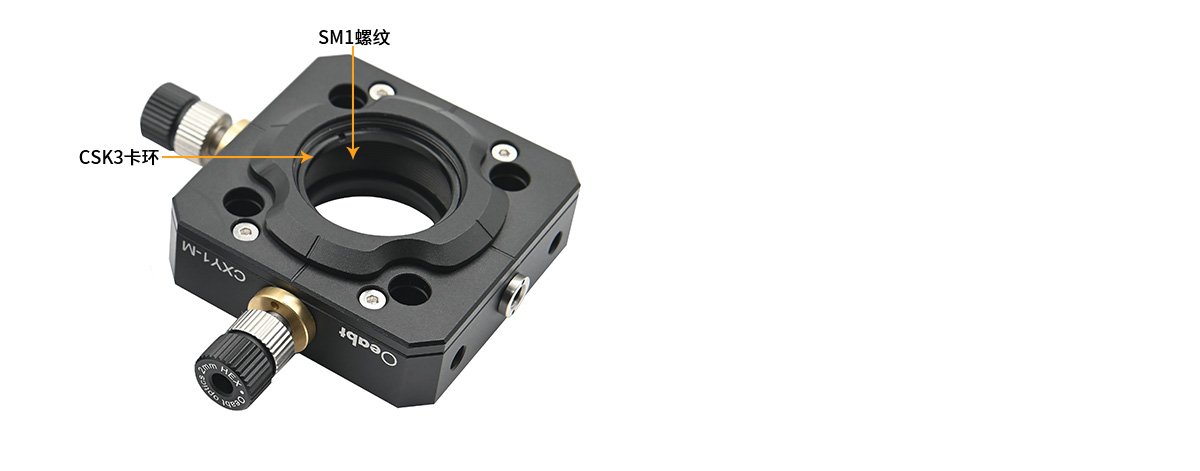

• 可安装最厚为10.0mm的Ø1英寸(25.4 mm)光学元件； • 通过调整器M5*0.25调节器，在X和Y方向行程为±1mm； • SM1(1.035″-40)螺纹，兼容我们的SM1透镜套筒系列产品；
Description

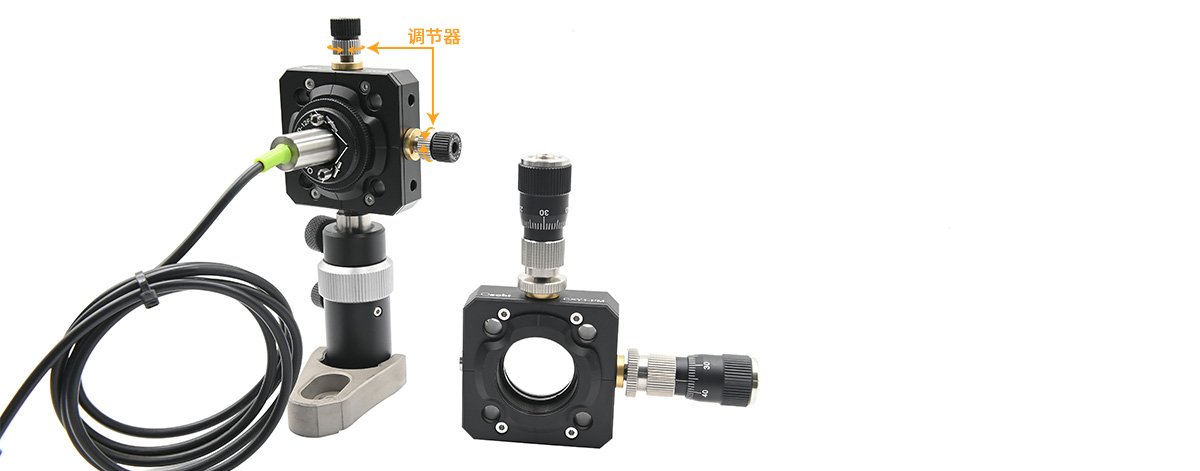

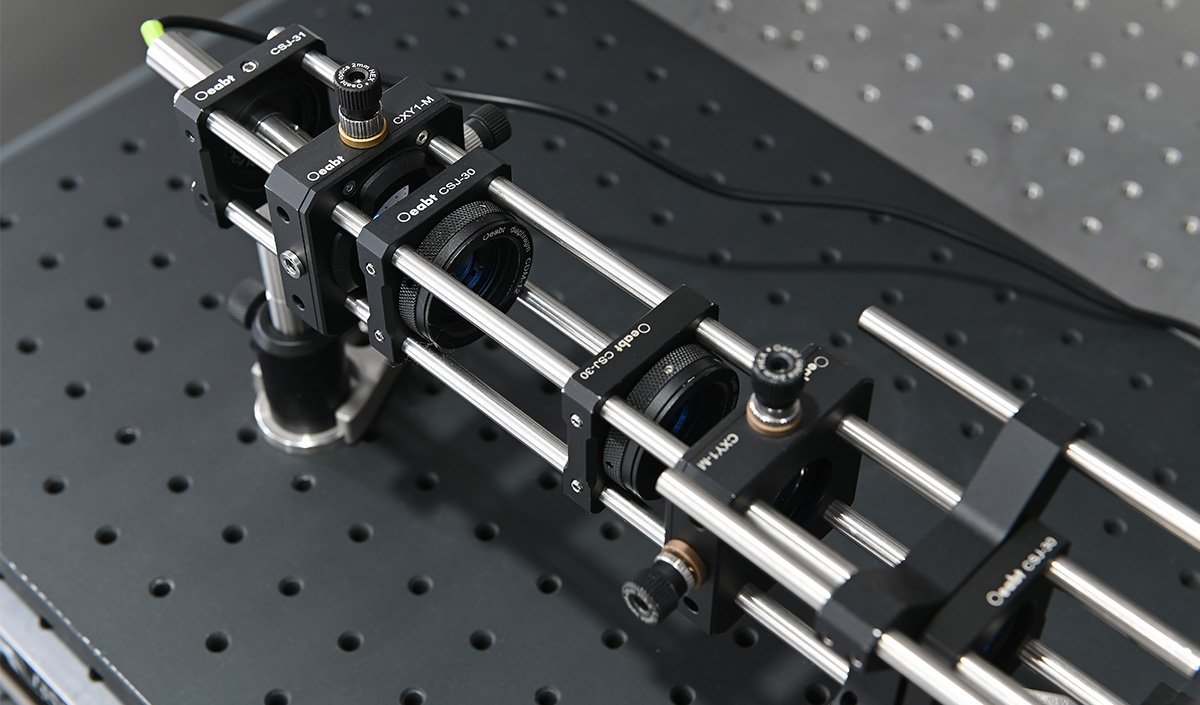

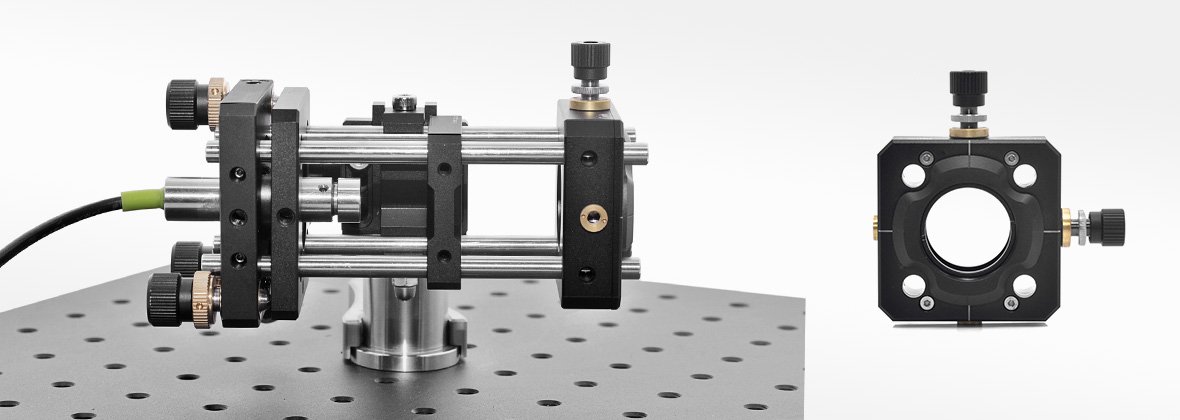

平移调整架能够在垂直于30mm笼式系统的光轴方向上提供±1mm的行程。这种平移调节通过两M5*0.25精细六角调节器驱动，中心载物台可用于X或Y轴平移；该安装座在水平和竖直方向上有刻度，能帮助安装台的对准。
| 品名 | 笼式XY平移调整架 |
| 型号 | CXY1-M |

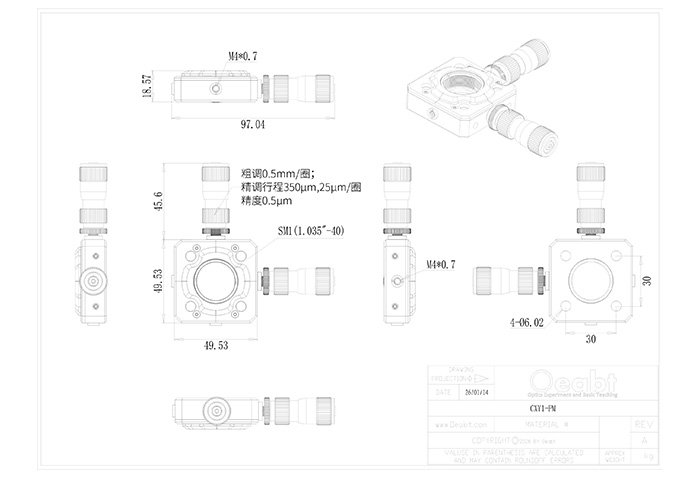

| 规格 | 49.5*49.5*18.6mm |
| 孔径 | SM1（1.035’’-40） |
| 最大行程 | ±1mm |
| 通孔间距 | 30mm*30mm |
| 重量 | 85.0g |
| 材质 | 7075铝合金 |
Additional information
| 型号 | CXY1-M, CXY1-PM |
|---|
