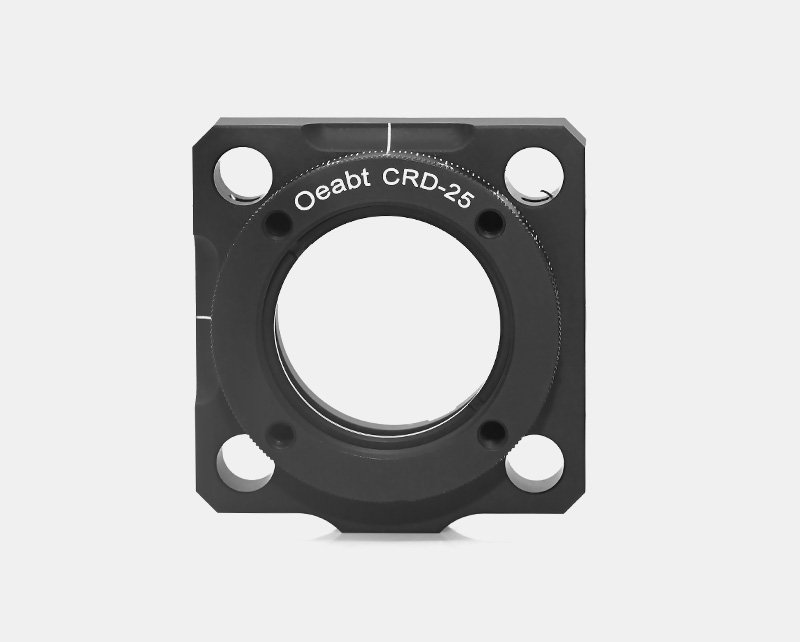

30mm笼式旋转安装架
Price range: $264.00 through $545.00

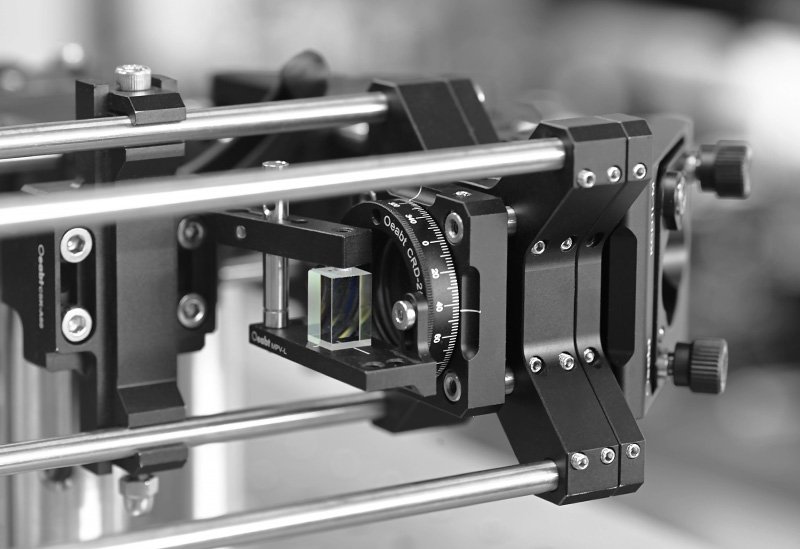

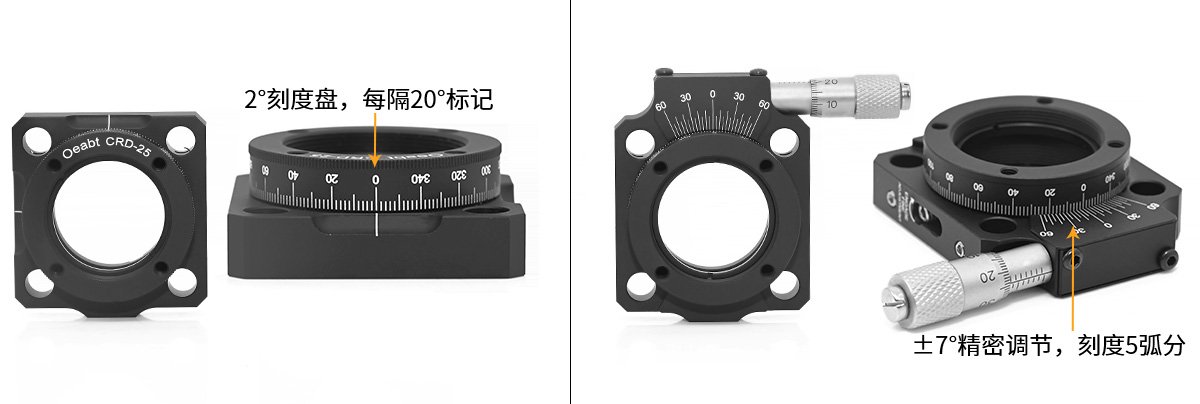

• 360°连续旋转，可锁定； • 刻度盘分度为2°，每隔20°数字标记； • 多用于波片、偏振片或其它偏振光元件的定位使用；
Description

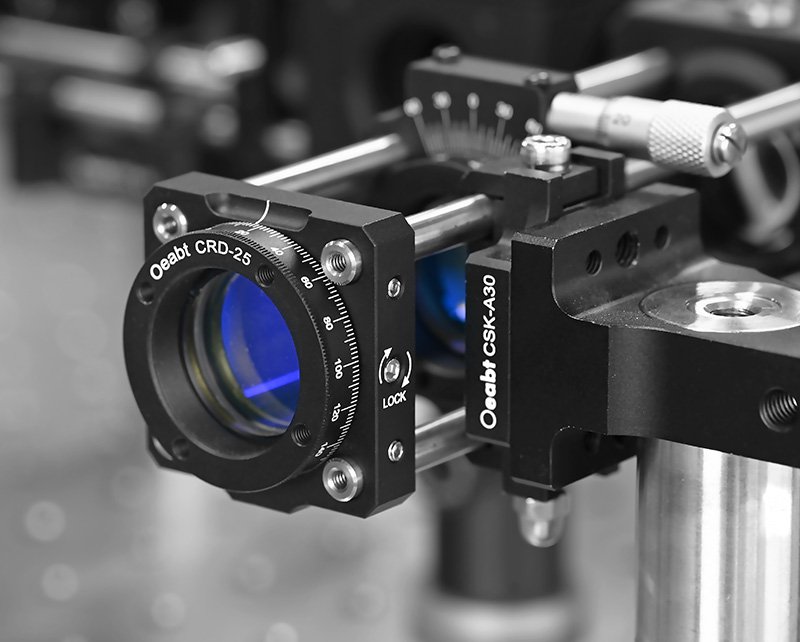

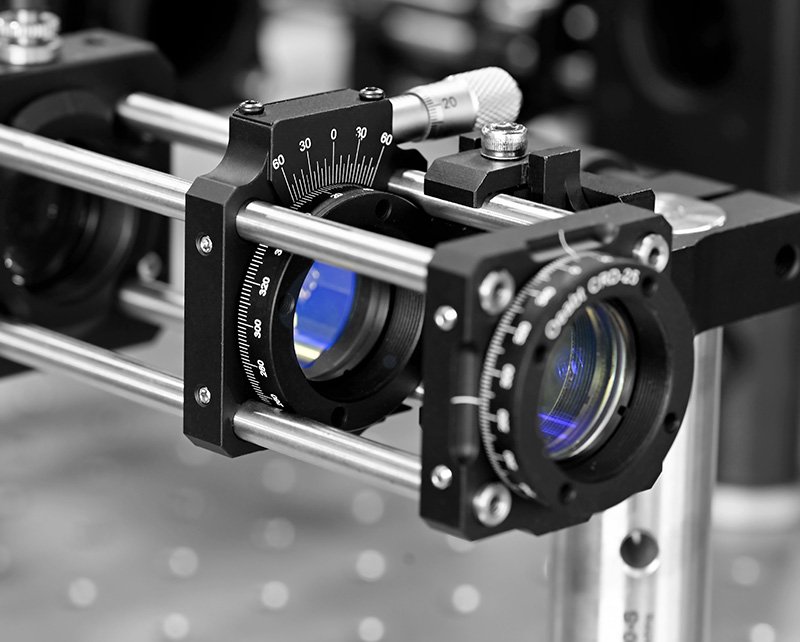

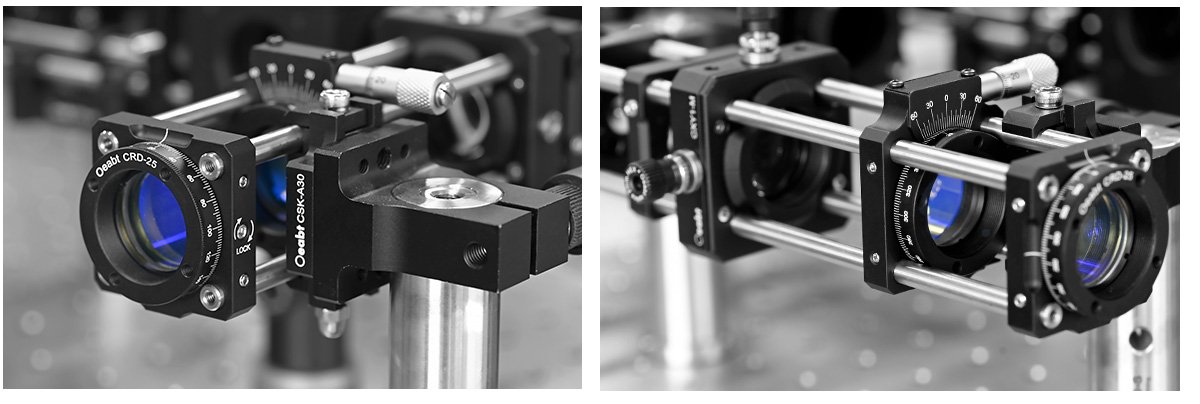

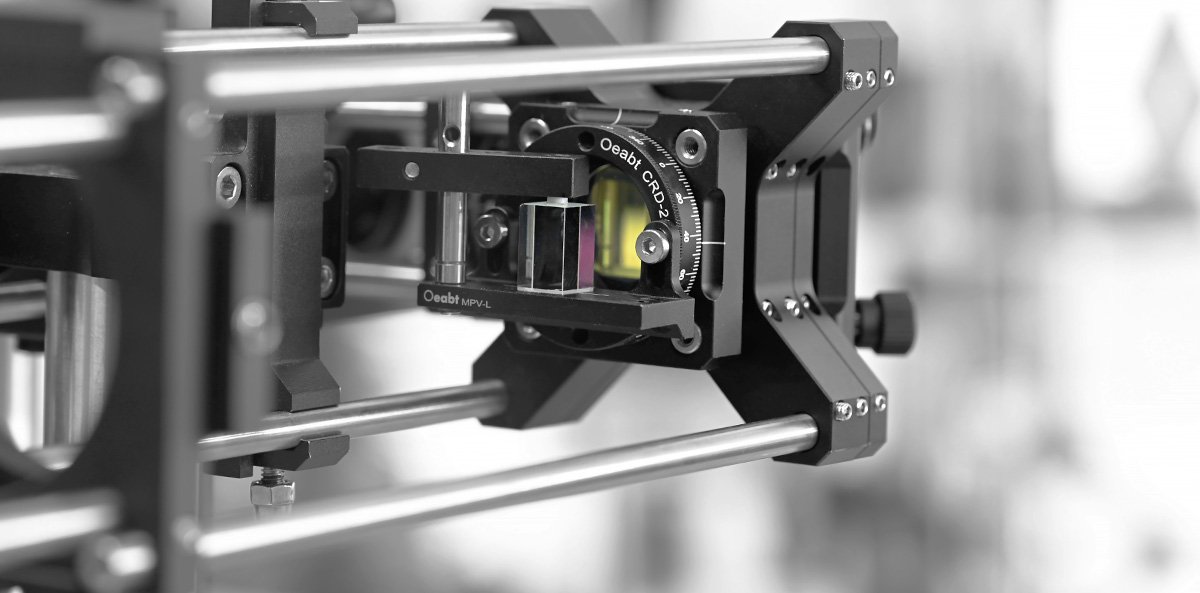

30mm旋转安装座可提供360°连续旋转，平滑的调节机制可以精确定位各种波片、偏振片或其它偏振光学元件。
| 型号 | CRD-25 | S/N0007 |

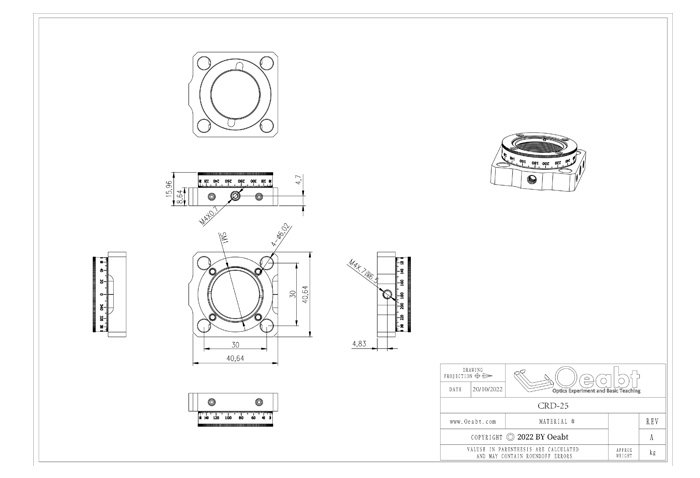

| 规格 | 40.6*40.6*16.0mm | 40.6*40.6*16.0mm（不含调节器） |
| 调节范围 | 360°旋转，分度2° |
主刻度：360°旋转，分度2°； 游标调节：±7°，精度5弧分 |
| 中心孔径 | SM1（1.035”-40）内螺纹 | |
| 通孔间距 | Ø6.02nn，间距30*30mm | |

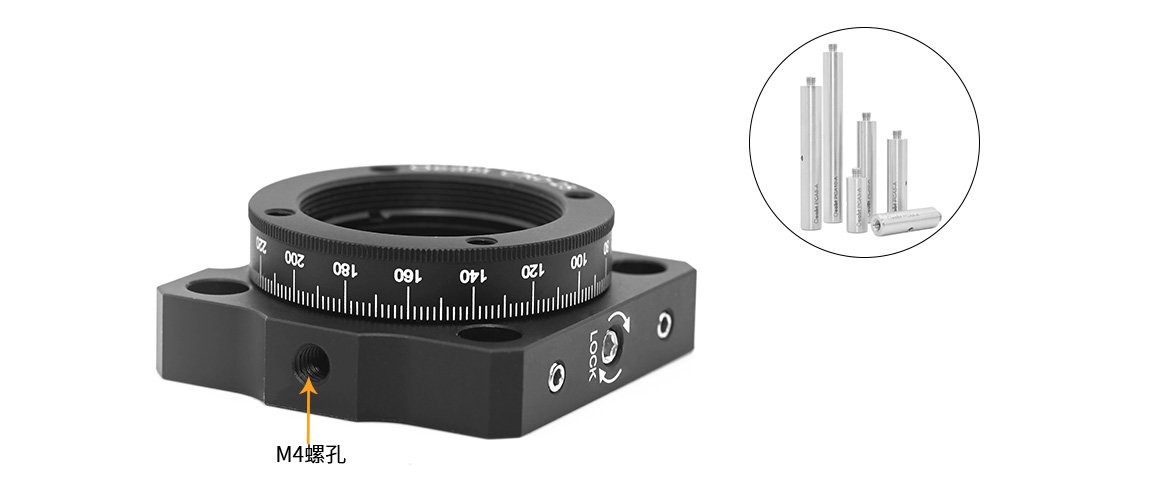

| 螺孔类型 | M4*1处 | |
| 重量 | 32.4g | 50.8g |
| 材质 | 7075铝合金 | |
Additional information
| 型号 | CRD-25, S/N0007 |
|---|
Related products
-
KCD1L-M 30mm笼式直角调整架
$428.00Select options This product has multiple variants. The options may be chosen on the product page -
MC-S1 30mm笼式调整镜架
$295.00Select options This product has multiple variants. The options may be chosen on the product page -

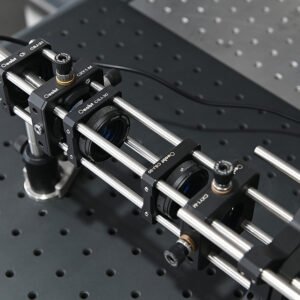

CXY1-M 笼式XY平移调整架
