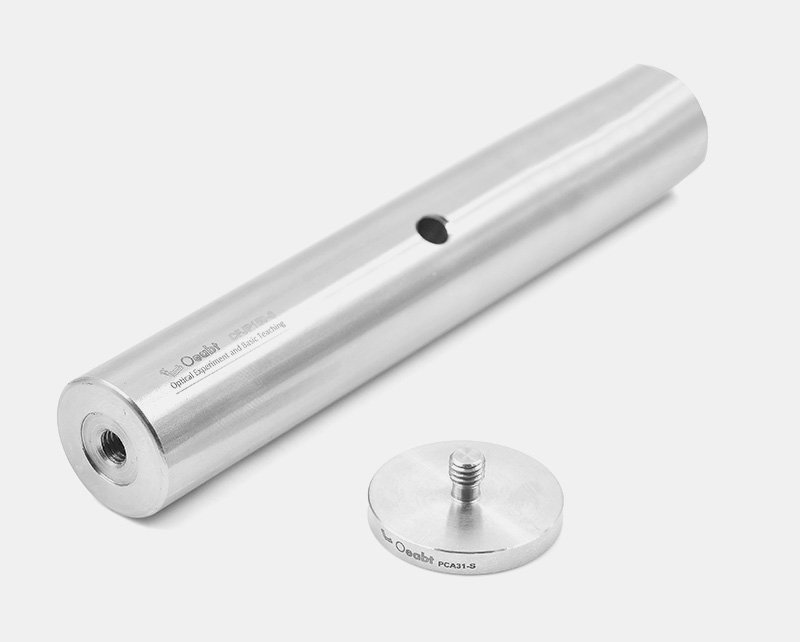

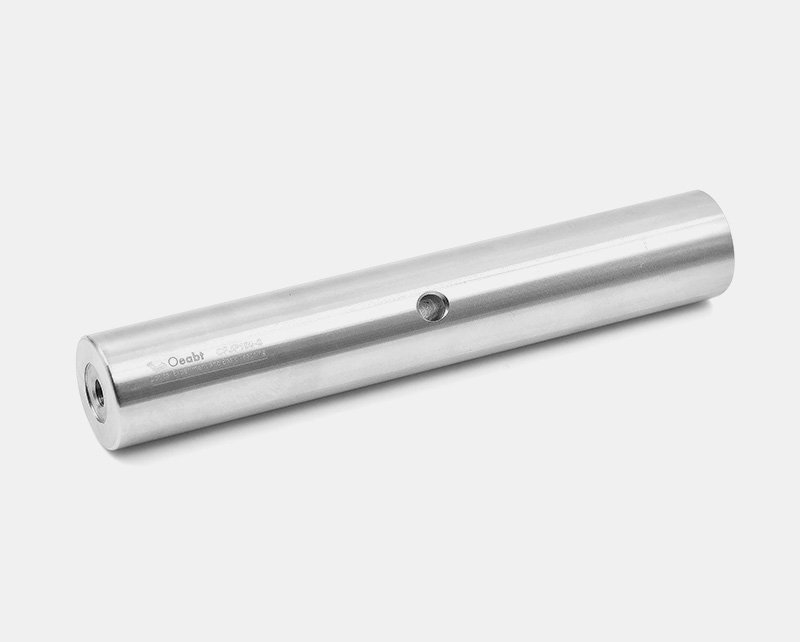

CFJP-S系列 Ø25mm不锈钢立杆
Price range: $90.00 through $235.00

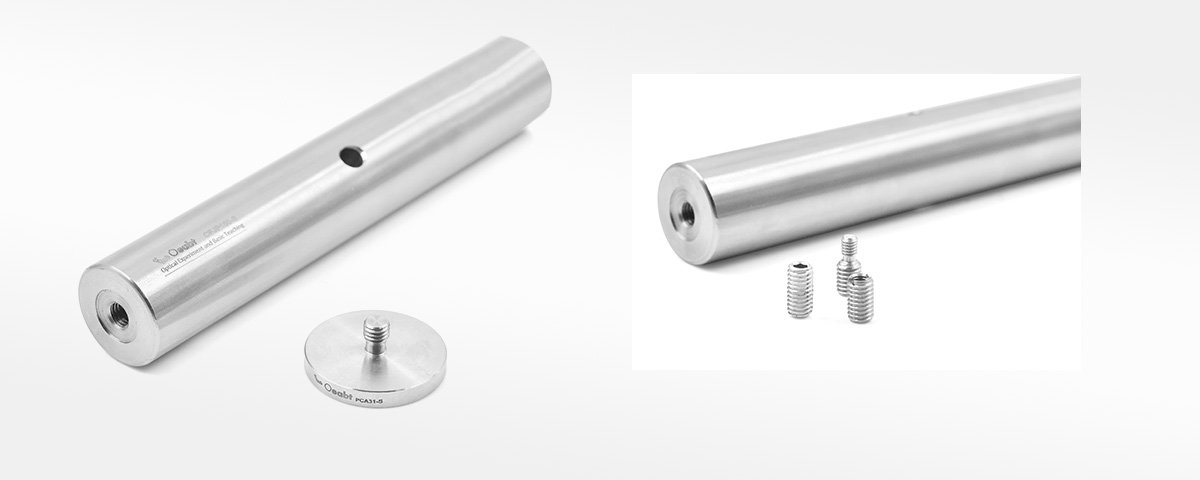

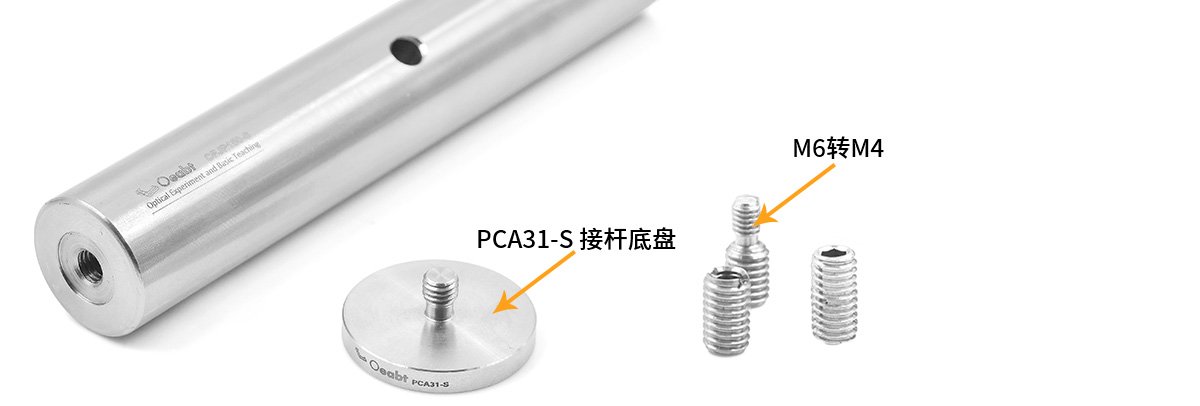

• Ø25mm不锈钢立杆采用实心无磁不锈钢； • 可利用不同规格转接螺丝安装镜架或者面包板； • 6mm螺孔，在拧紧时利用工具可提供额外的作用力；
Description

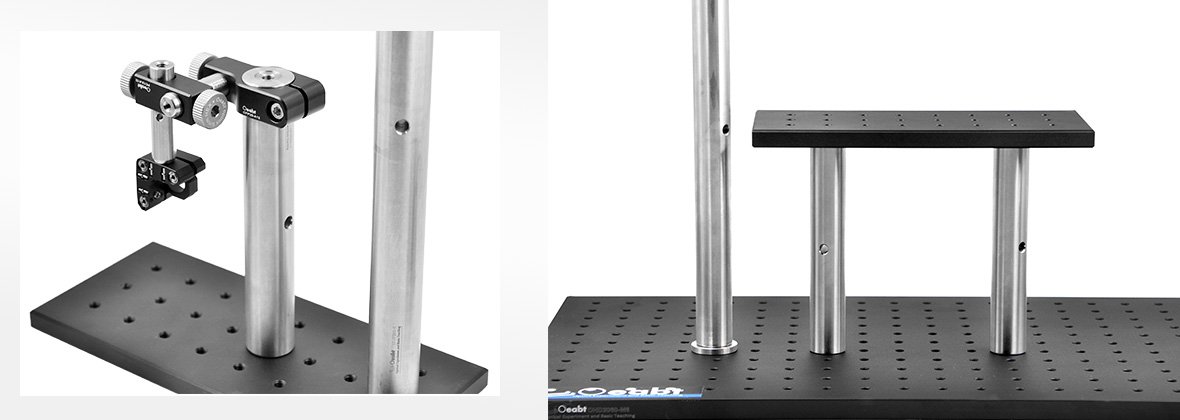

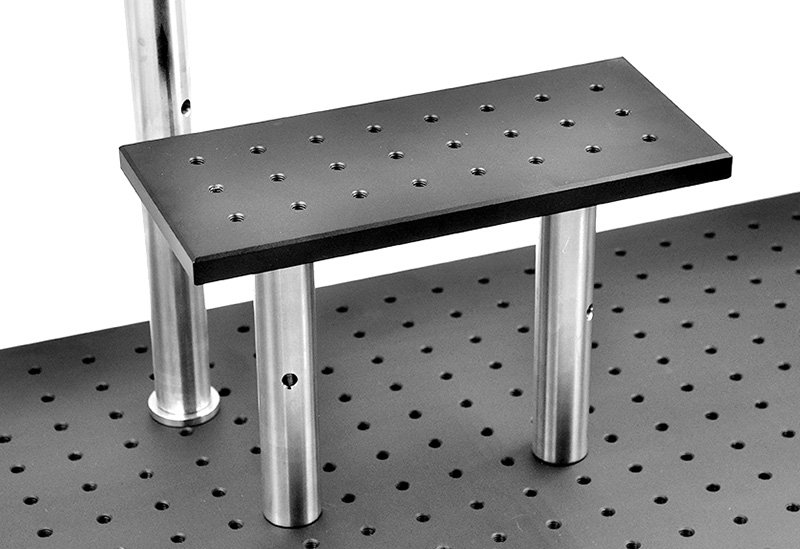

柱式接杆可在光学装置中提供强有力的支撑。通过结合这些Ø25mm不锈钢接杆的刚性和高稳定性，可以构建任意高度的支撑结构。每根接杆的两端都加工有M6螺纹孔，可以直接安装到光学平台或标准底座和光学安装座。这些接杆由无磁性的304不锈钢制造而成。
| Ø25mm不锈钢接杆 | |
| 型号 | 参数信息 |
| CFJP100-S | 规格:Ø25*100mm; 重量:372.3g; 材质:304不锈钢; | |
| CFJP150-S | 规格:Ø25*150mm; 重量:563.4g; 材质:304不锈钢; | |
| CFJP200-S | 规格:Ø25*200mm; 重量:756.1g; 材质:304不锈钢; | |
| CFJP250-S | 规格:Ø25*250mm; 重量:852.45g; 材质:304不锈钢; | |
| CFJP300-S | 规格:Ø25*300mm; 重量:1139.4g; 材质:304不锈钢; | |
Additional information
| 型号 | CFJP100-S, CFJP150-S, CFJP200-S, CFJP250-S, CFJP300-S |
|---|---|
| 材质 | #304不锈钢 |

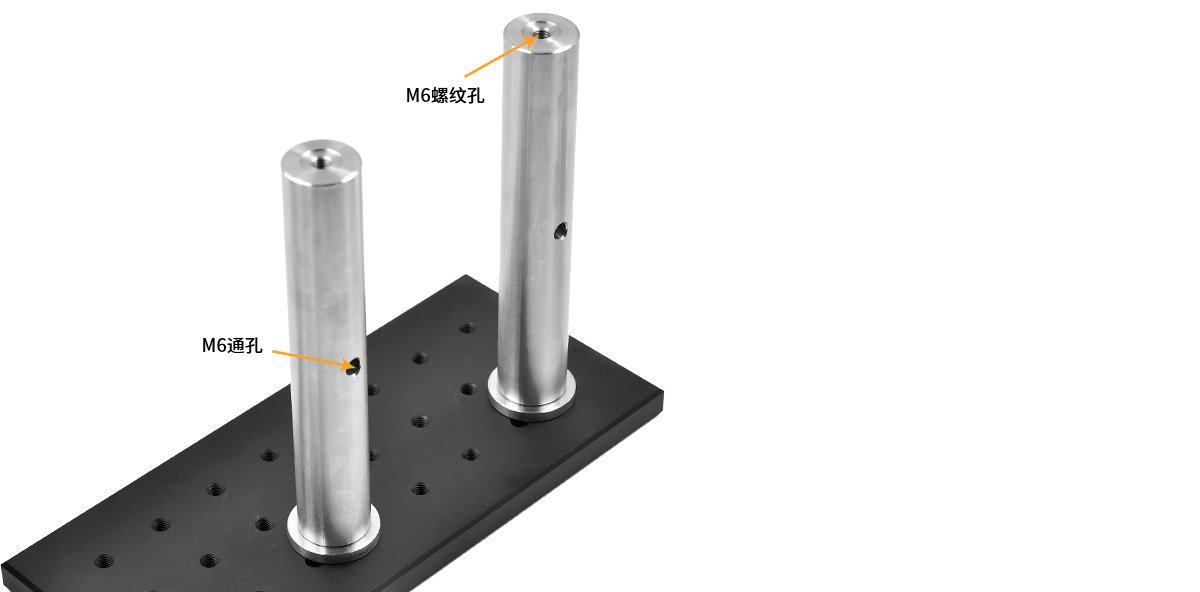

| 螺纹类型 | M6螺孔 |
| 直径 | Ø25mm |
