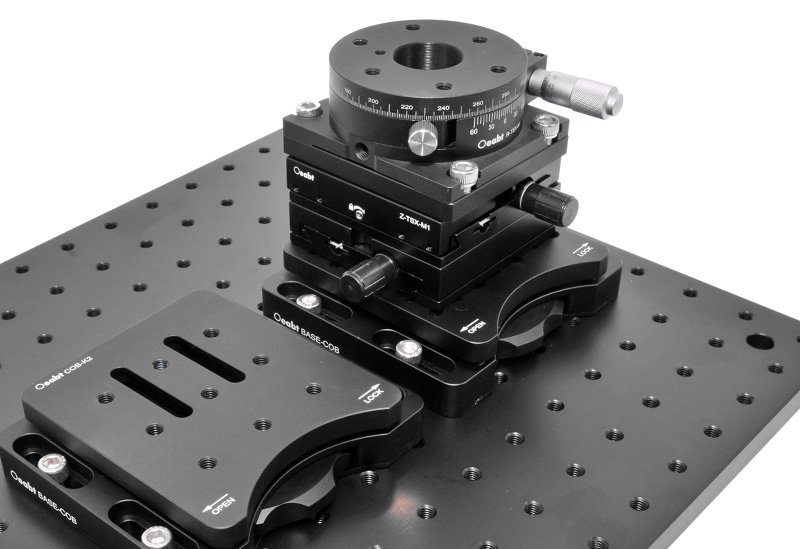

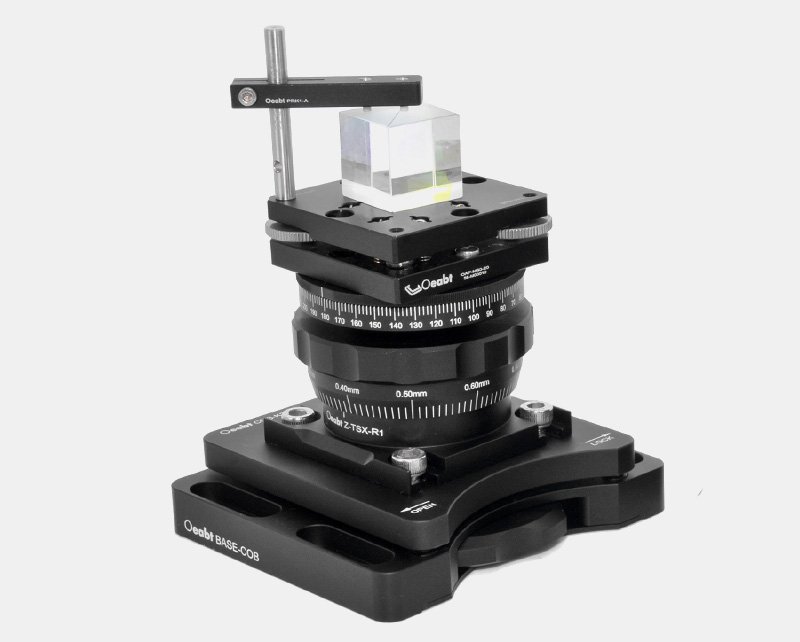

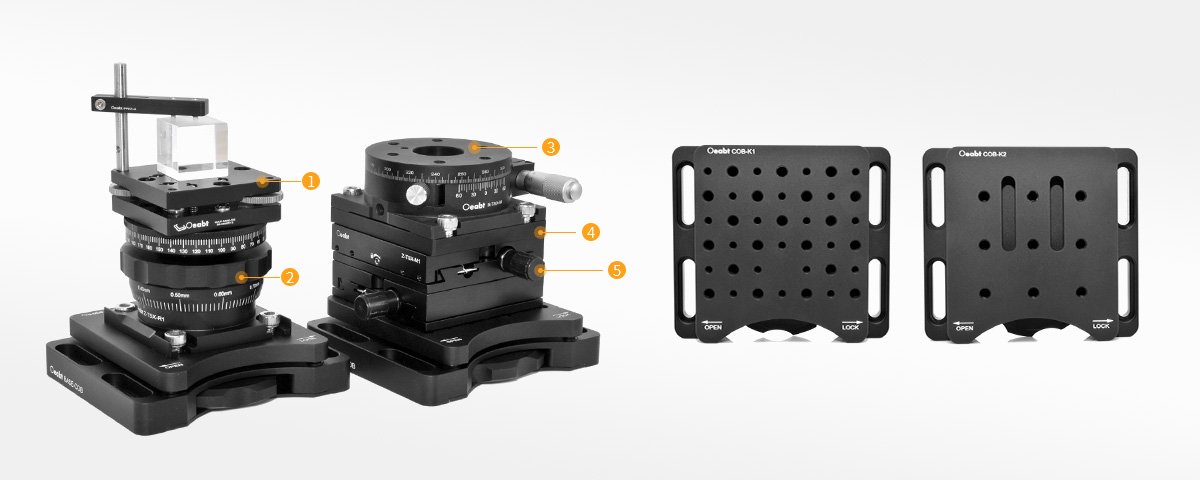

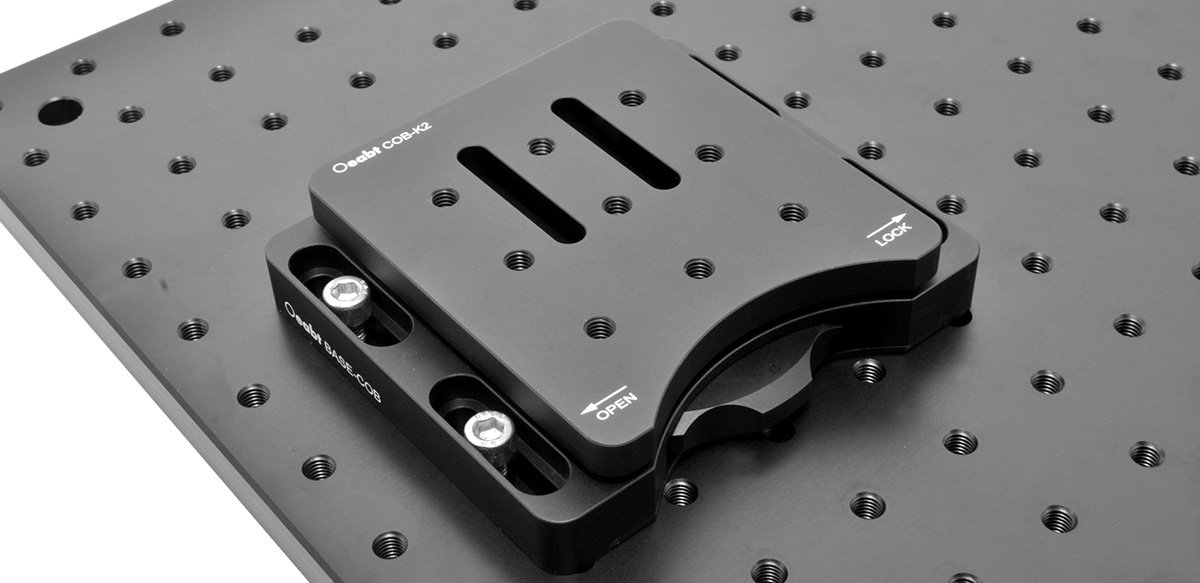

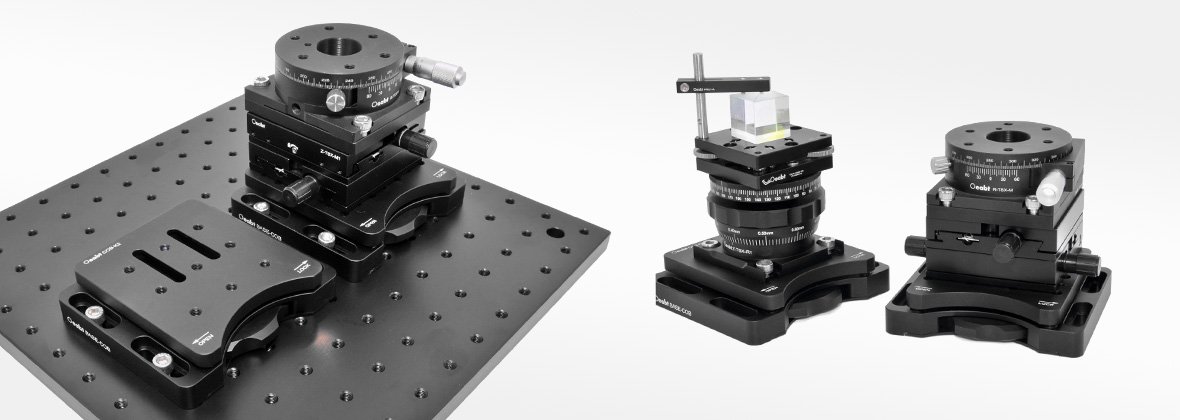

BASE-COB-K1 快拆底座
Price range: $300.00 through $867.00

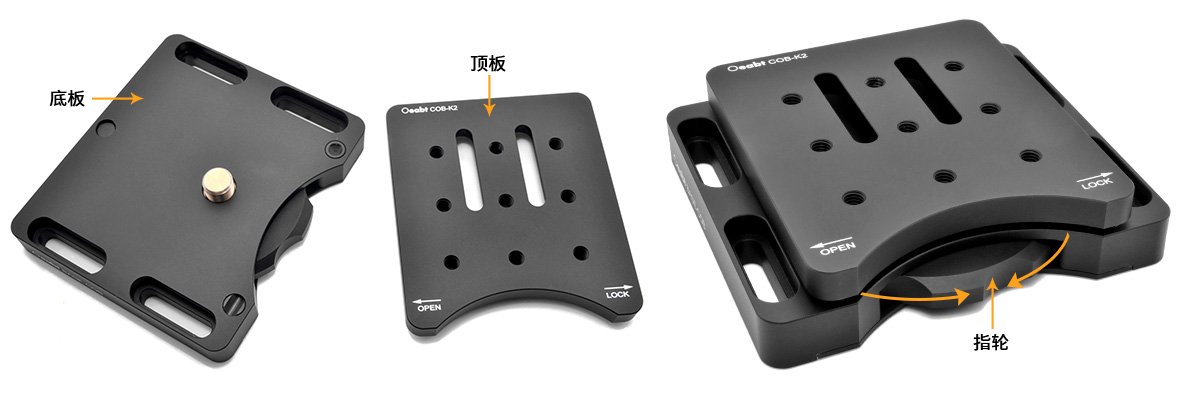

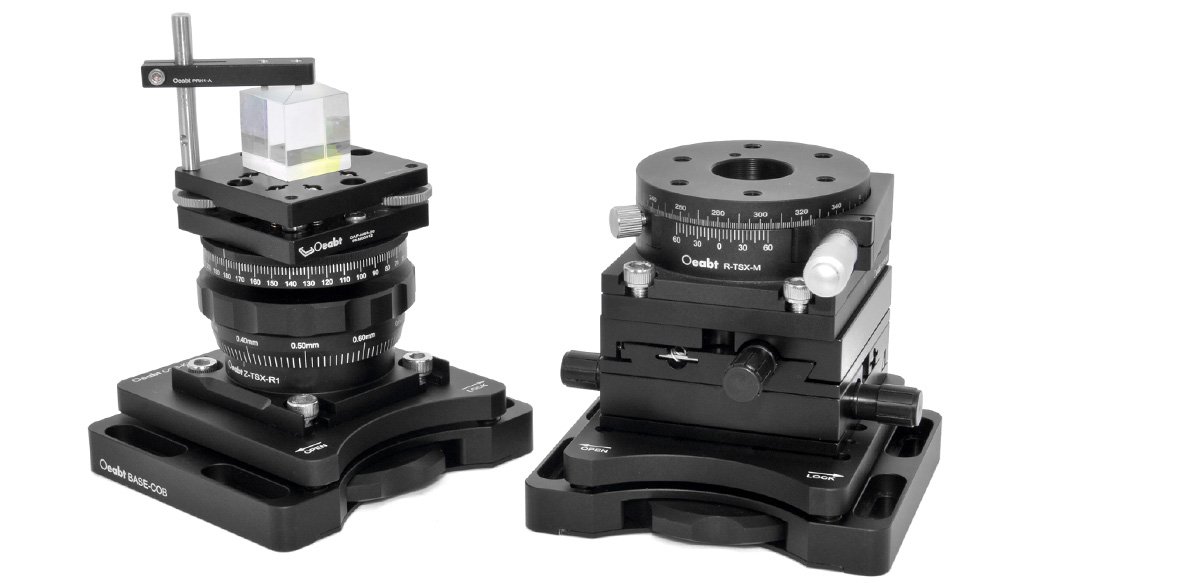

• 快拆底座，顶板和底板通过转动基座指轮即可快速拆卸安装； • 通过锁定螺纹机械连接，允许以非常高的重复性安装、卸下和更换光学组件； • 顶板台面螺纹孔阵列可提供与光学面包板相同的安装功能；
Description

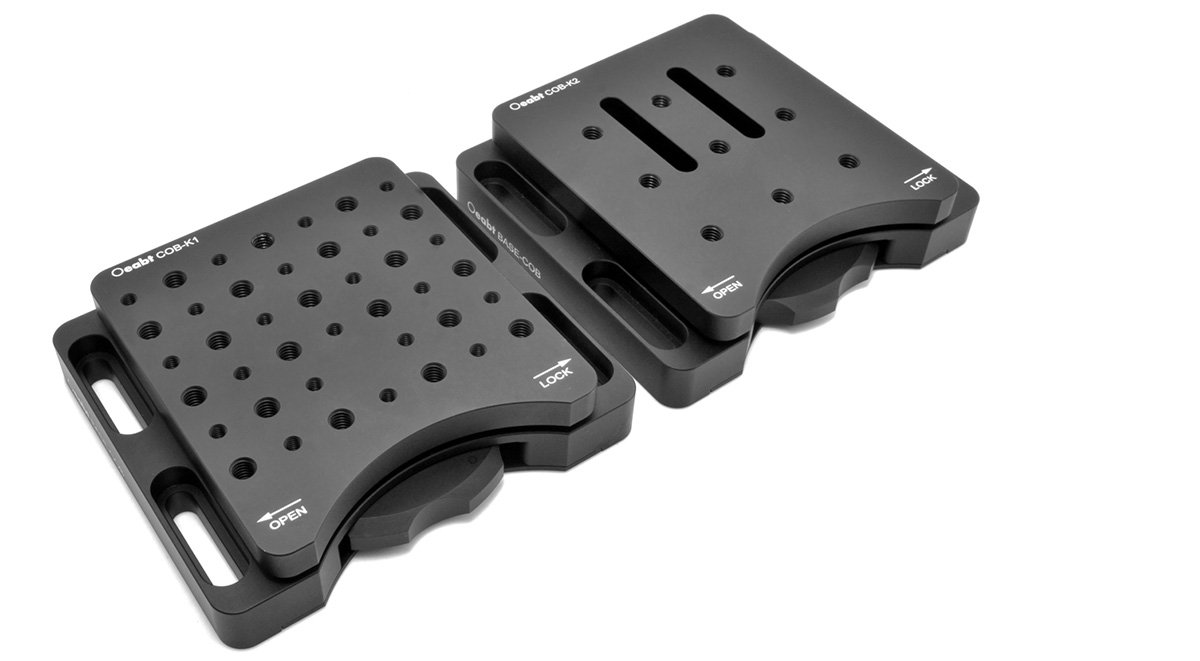

| 快拆底座【顶板+底板】 | |
| 型号 | 参数信息 |

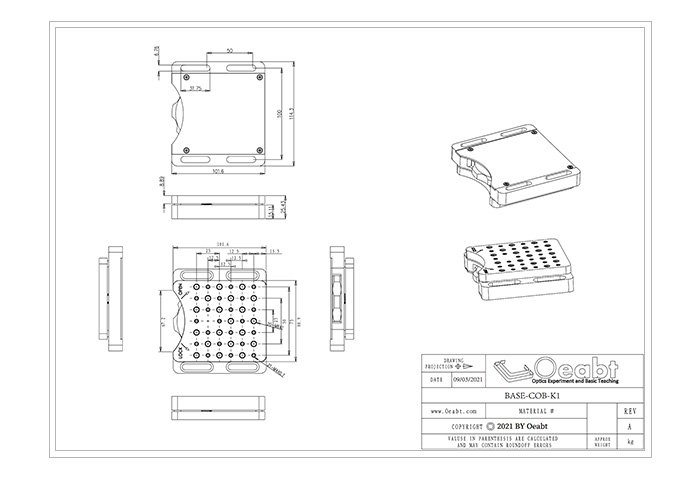

| BASE-COB-K1 | 规格:114.3*101.6*25.4mm; 顶板螺纹:21处M4, 20处M6; 重量: 570.0g; | |

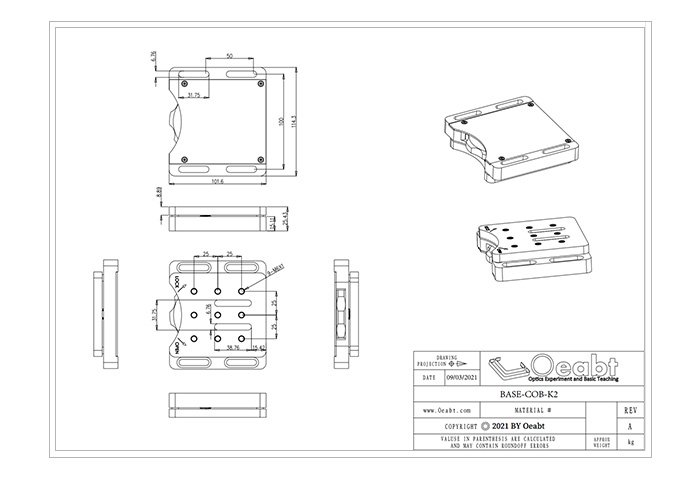

| BASE-COB-K2 | 规格:114.3*101.6*25.4mm; 顶板螺纹:9处M6, 2条38.6*6.7mm沉头孔槽; 重量: 565.1g; | |
| 顶板/底板 | |
| 型号 | 参数信息 |

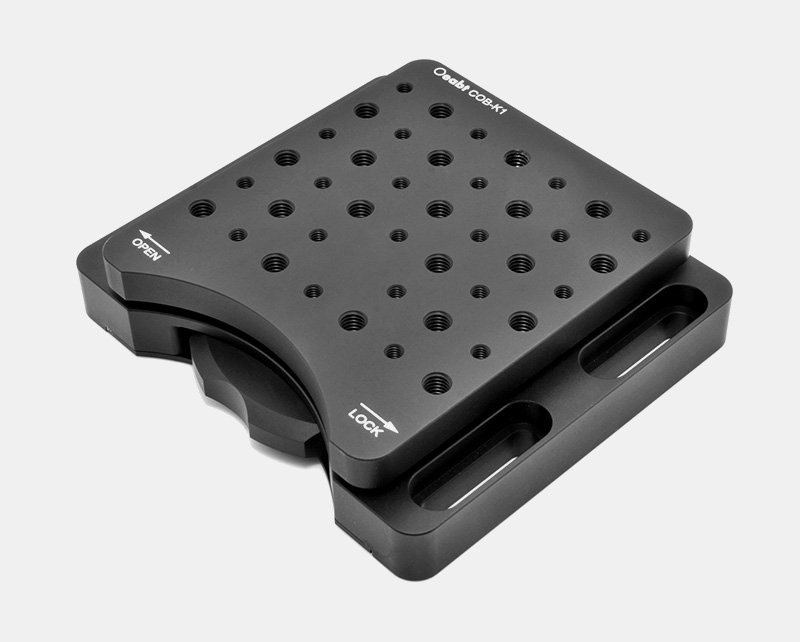

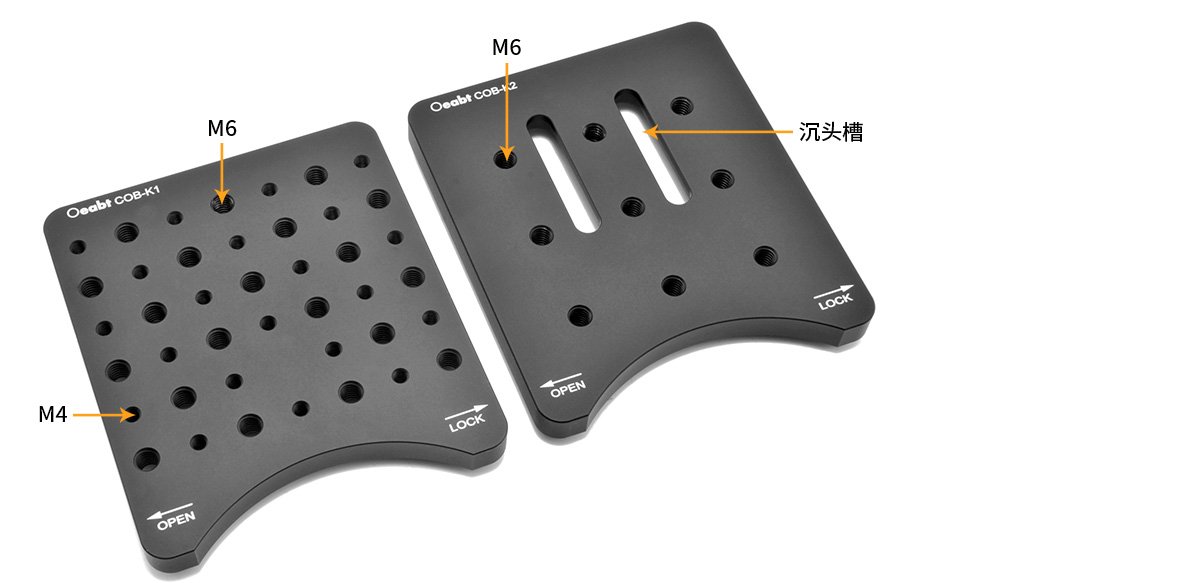

| COB-K1顶板 | 规格:88.9*101.6*8.9mm; 螺纹类型:21个M4,20个M6; 重量:183.3g; | |

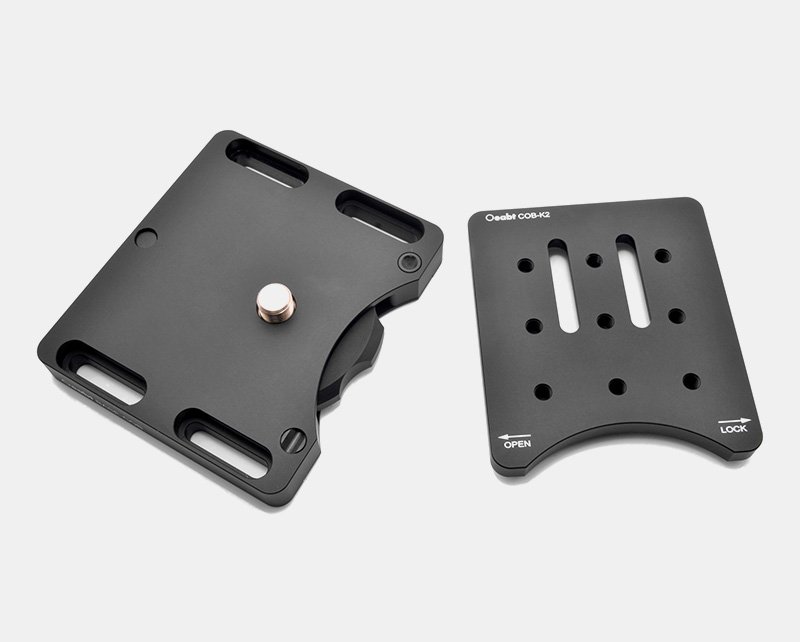

| COB-K2顶板| 规格:88.9*101.6*8.9mm; 螺纹类型:9个M6，2条38.6*6.7mm沉头孔槽; 重量:178.2g; | |
| BASE-COB底板 | 规格:114.3*101.6*15.1mm; 螺纹类型:4条*31.4*6.4mm沉头孔槽; 重量:386.4g; | |
Additional information
| 型号 | BASE-COB-K1, COB-K1, BASE-COB, BASE-COB-K2, COB-K2, BASE-COB |
|---|
