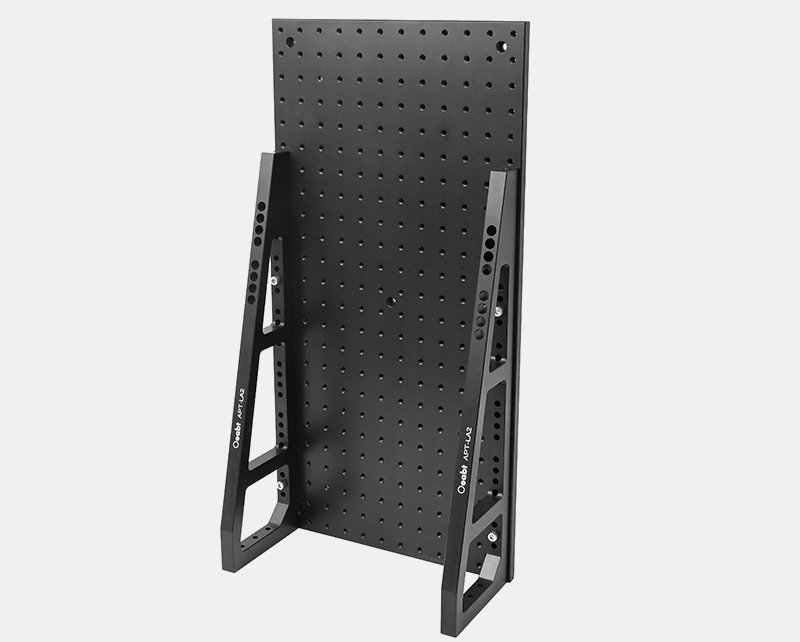

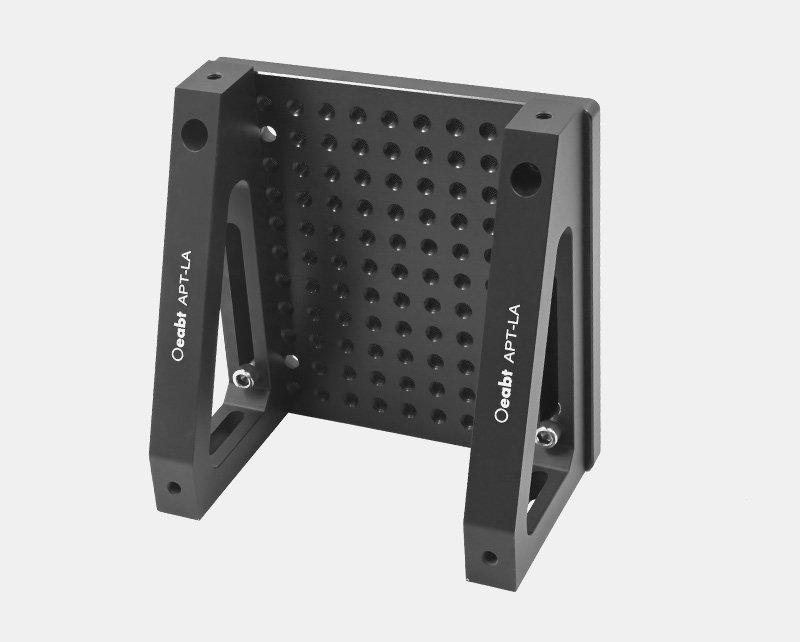

APT-LA 面包板垂直支架
Price range: $490.00 through $863.00

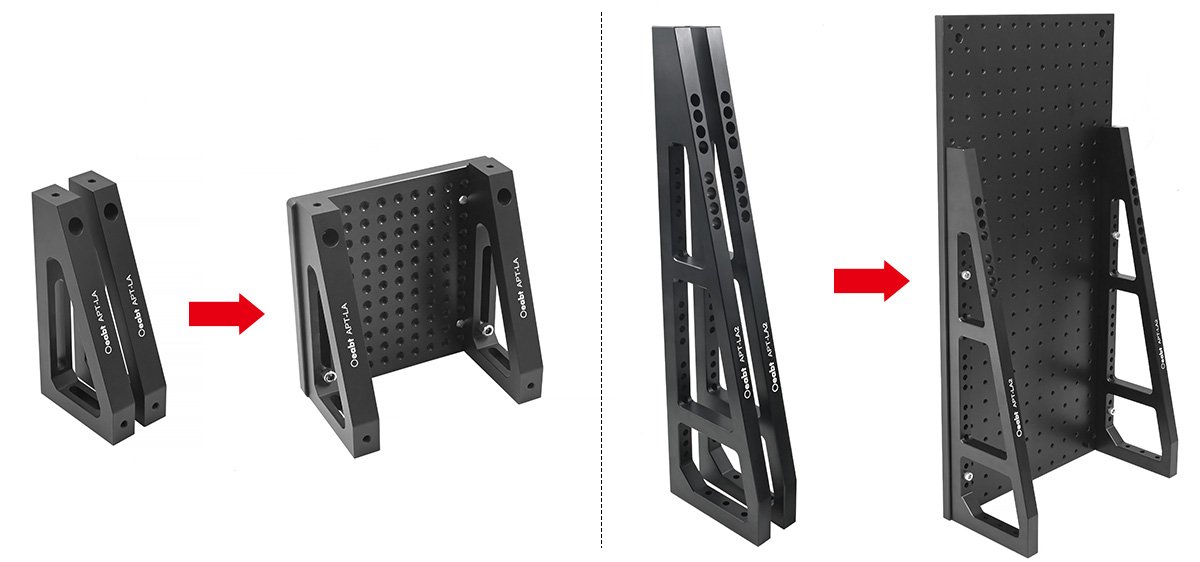

• 以90°角垂直安装面包板； • 一体式结构，具有出色的刚度； • 平行度和垂直度偏差在0.08mm以内；
Description

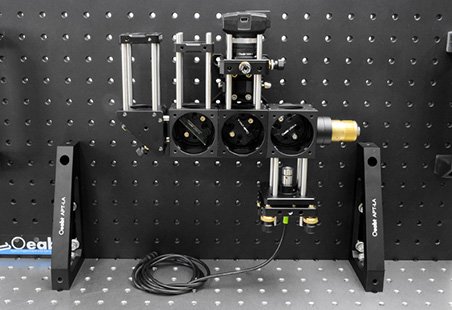

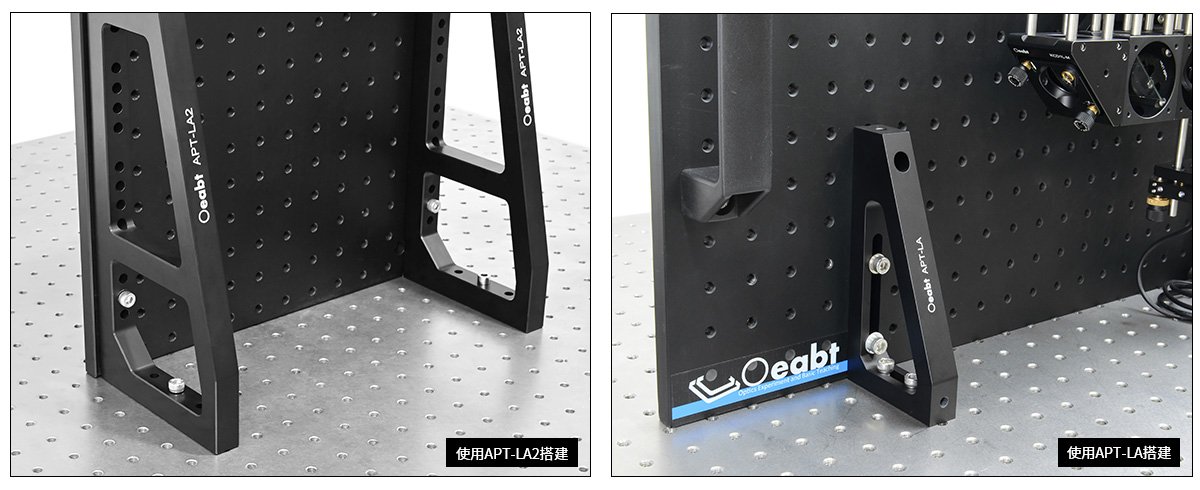

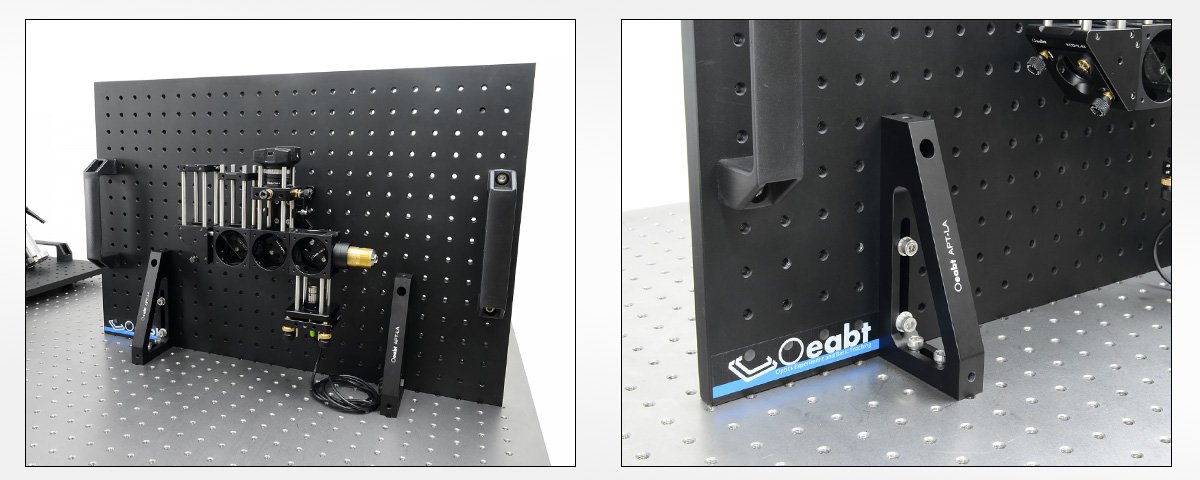

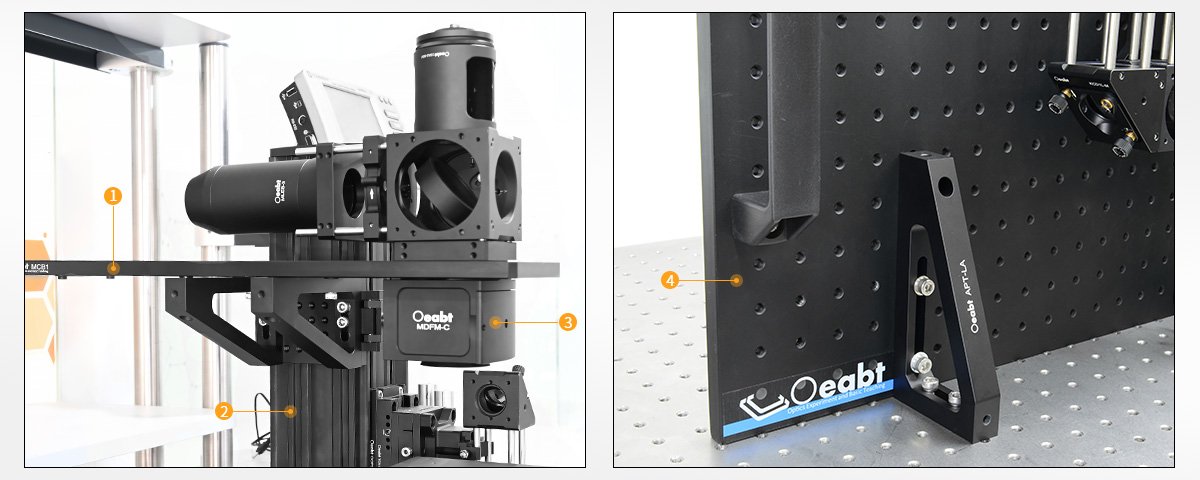

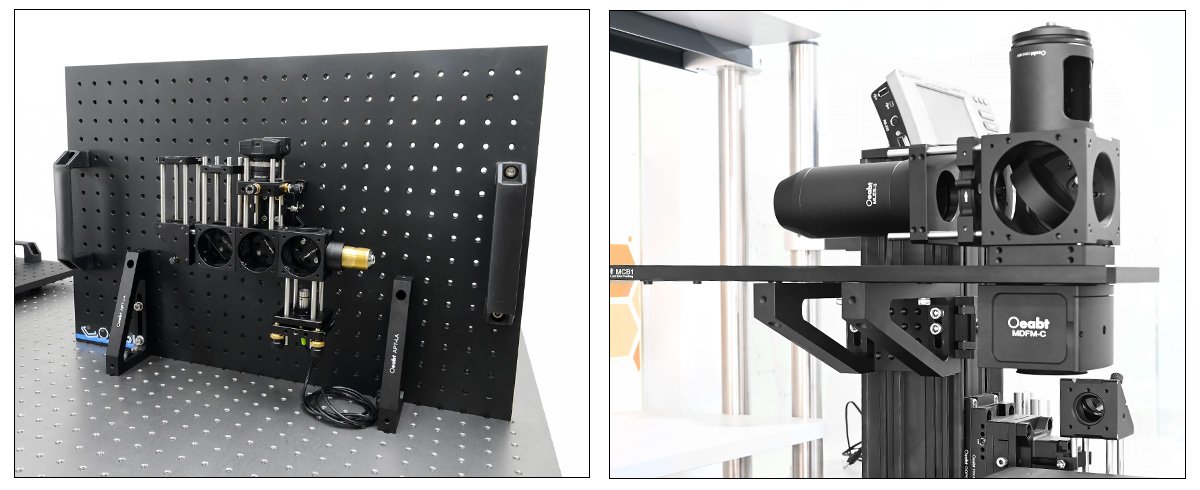

垂直支架设计用于铝制面包板垂直安装到光学平台上。该刚性支架架高度6英寸，18英寸可选，设有开槽安装点，也可用于直接连接安装好的光机设备或者作为较大结构的支撑。

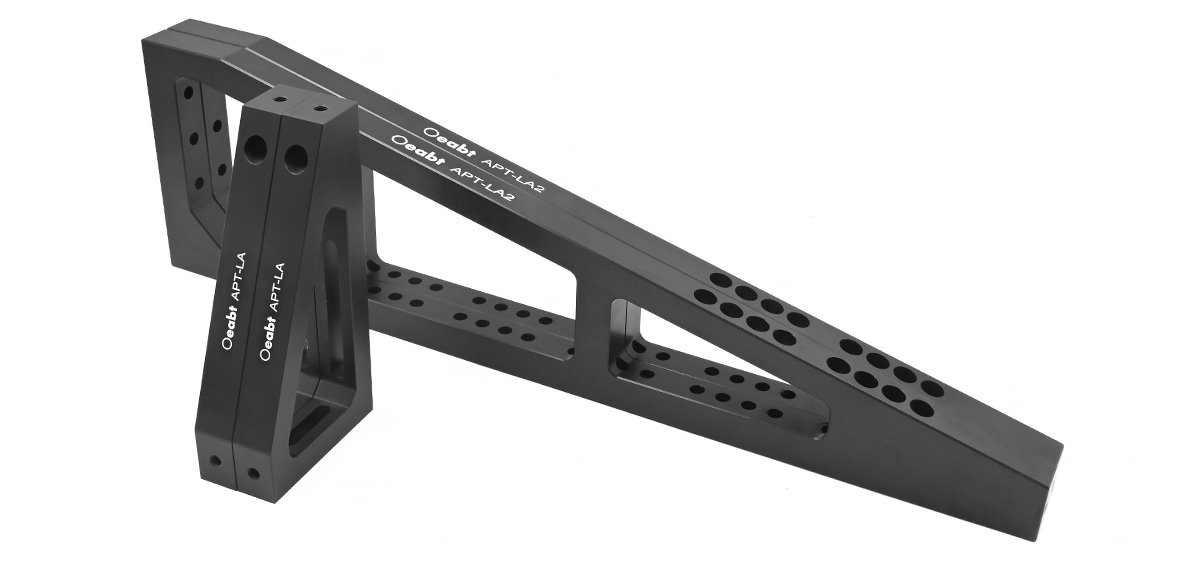

| 型号 | APT-LA | APT-LA2 |

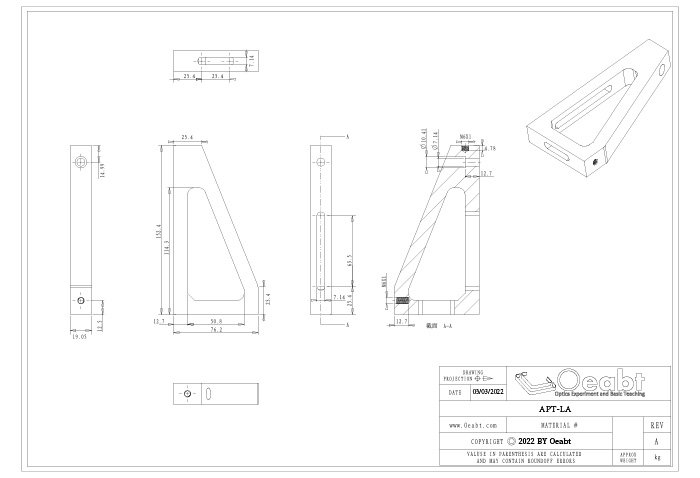

| 规格 | 152.4*76.2*19.2*mm | 457.2*127.0*18.5mm |
| 螺纹类型 |
M6*2处，M6*2处(沉头孔) M6孔槽：32.3mm*1处、70.5mm*1处 |
M6*12处，M6*27处（通孔） 通孔：Ø7.1*27处 |
| 重量 | 222.1g*2 | 893.3g*2 |
| 材质 | 7075铝合金 | |
Additional information
| 型号 | APT-LA, APT-LA2 |
|---|
