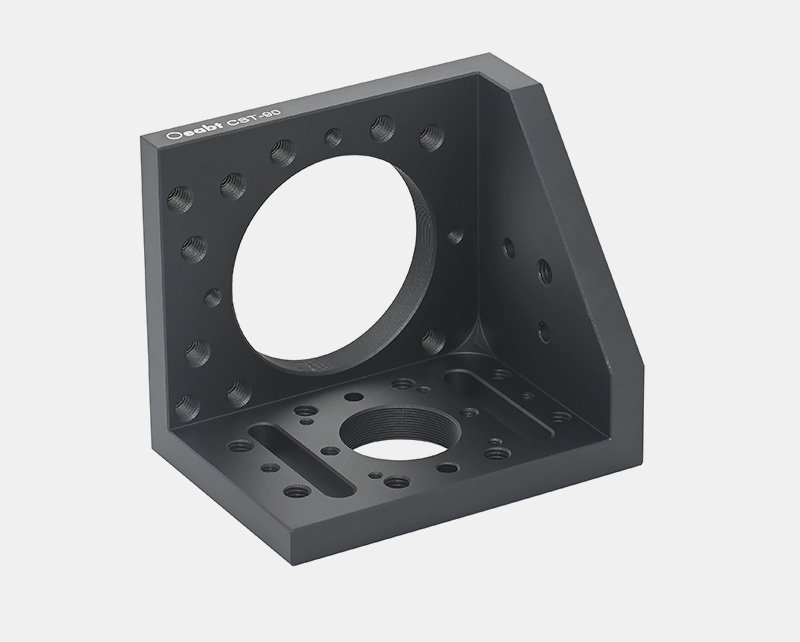

CST-90 直角安装支架
$375.00
• 安装支架，以90角安装光机件； • 适合在有限空间安装笼式构件和透镜套管系列； • 一体式铝质结构，具有出色的刚度；
Description

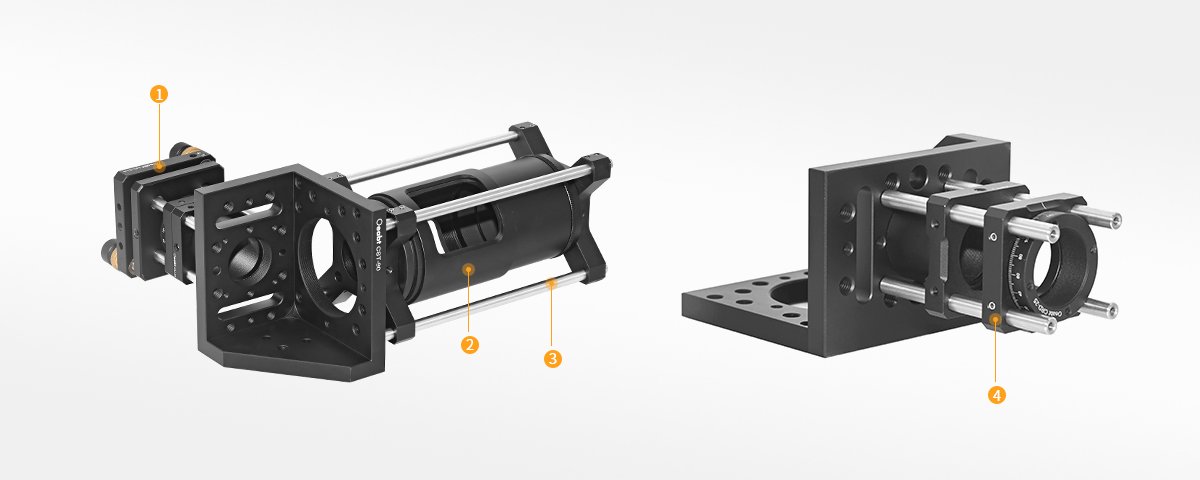

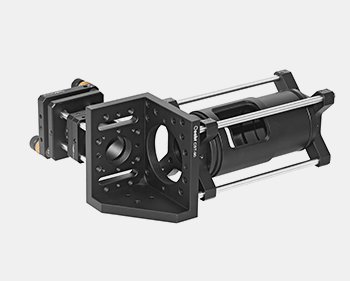

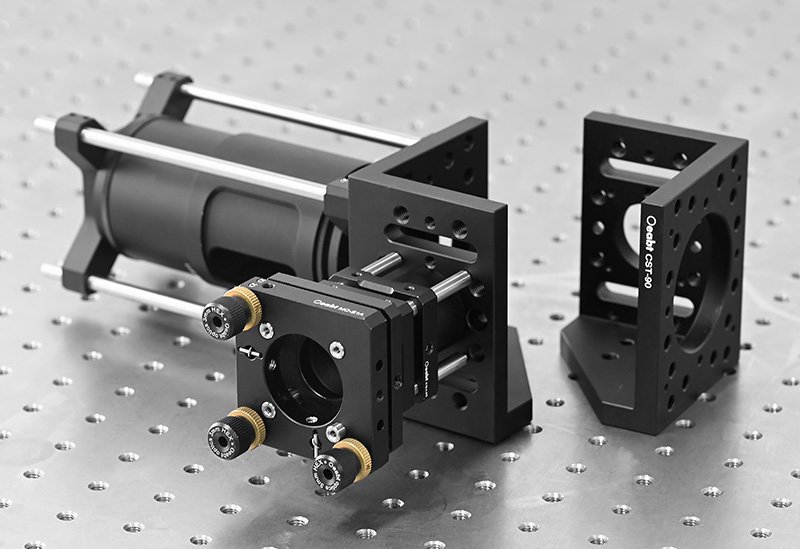

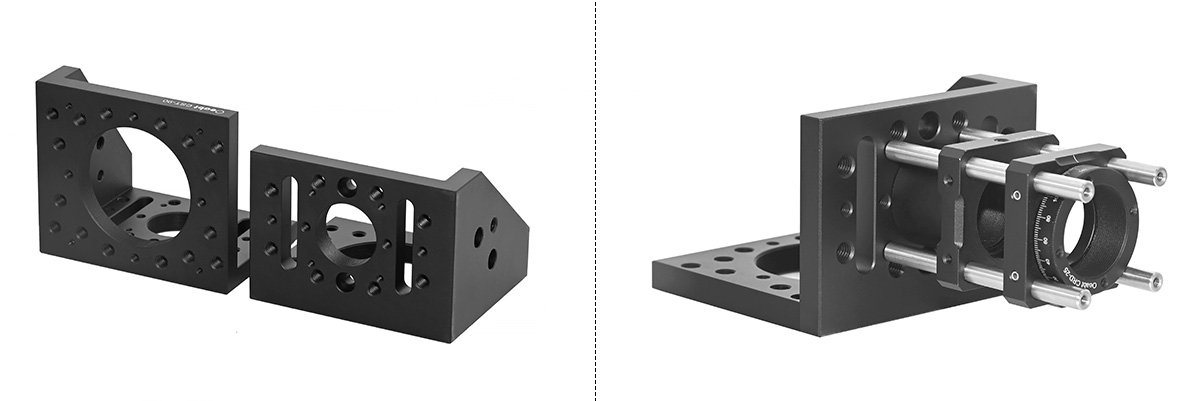

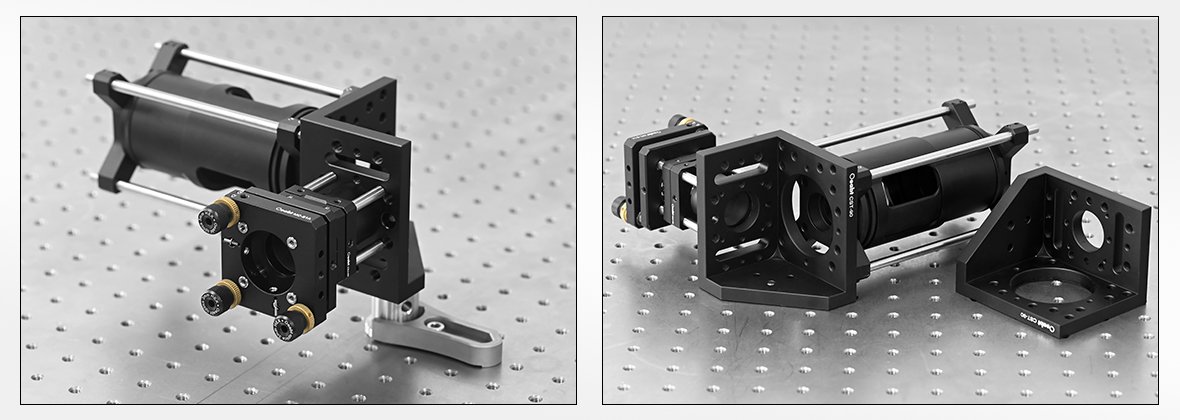

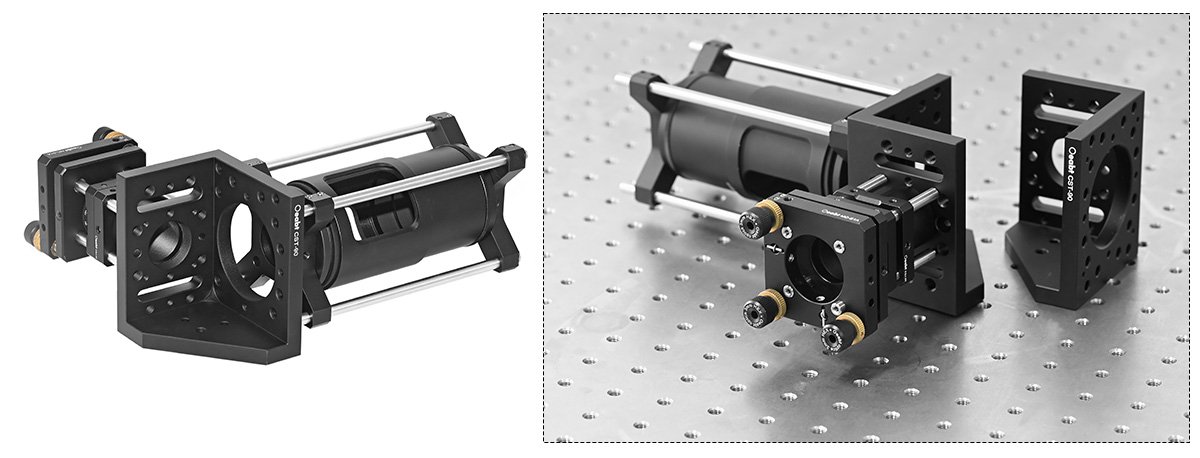

CST-90角度支架两个安装面互成90°，很适合需要垂直安装光学元件和子系统的光机系统。一体式铝制结构，是搭建稳固三维光机光机装配结构的理想选择。
| 型号 | CST-90 |

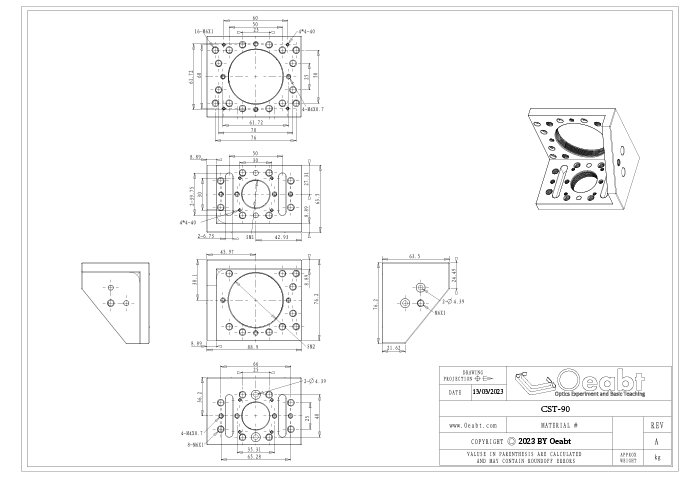

| 规格 | 88.9*76.2*76.2mm |
| 螺孔类型 |

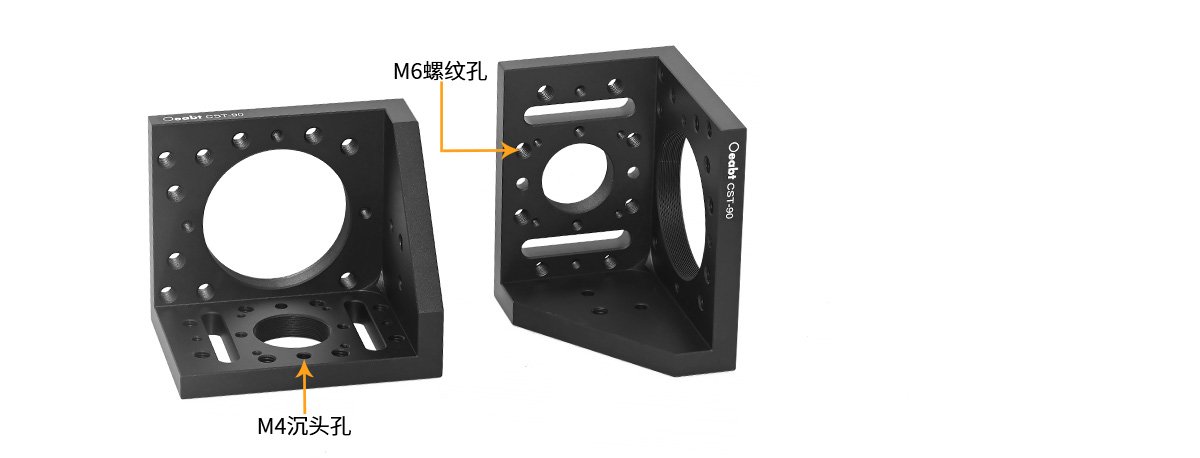

前面板：SM2*1处，M6*16处，M4*4处，4-40*4处 侧面板：SM1*1处，M6*8处，M4*4处，6.7*3.8*2处（腰孔） 底面板：M6*1处，M4*2处（沉头孔） |
| 重量 | 246.2g |
| 材质 | 7075铝合金 |
Additional information
| 型号 | CST-90 |
|---|
