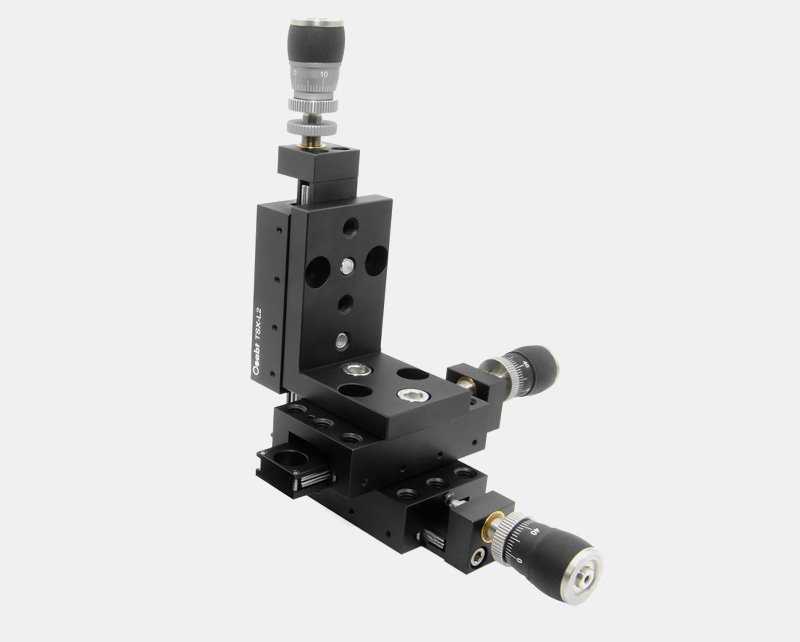

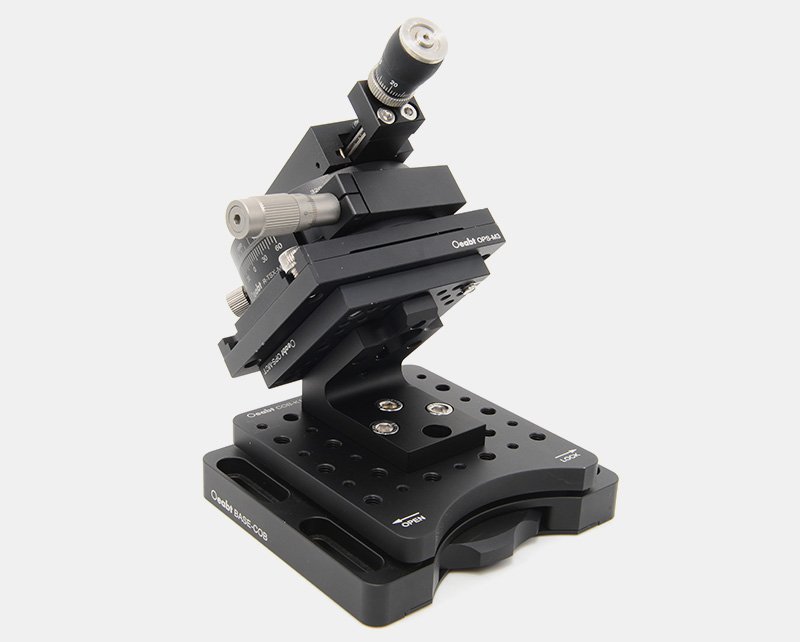

APT-L 角度安装支架
Price range: $193.00 through $234.00

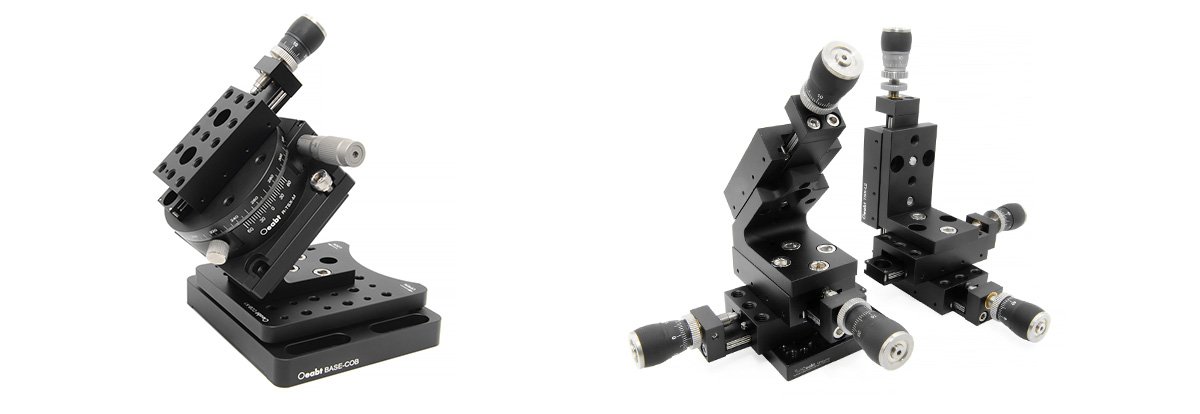

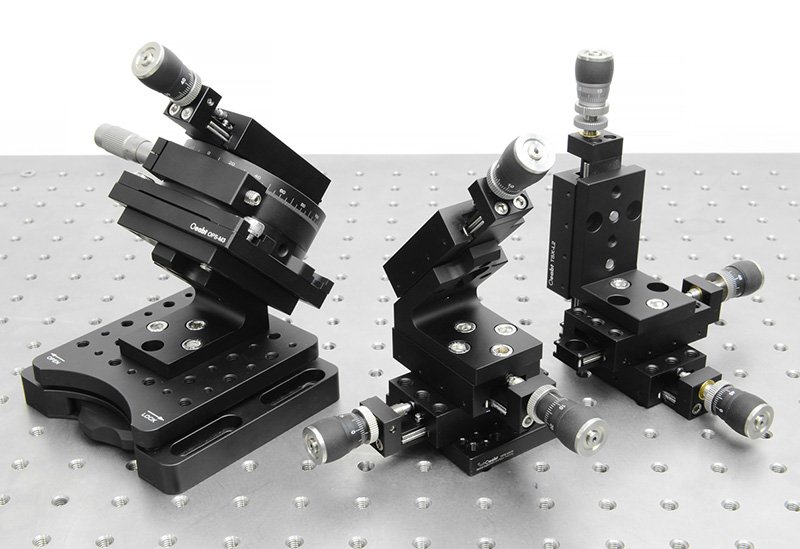

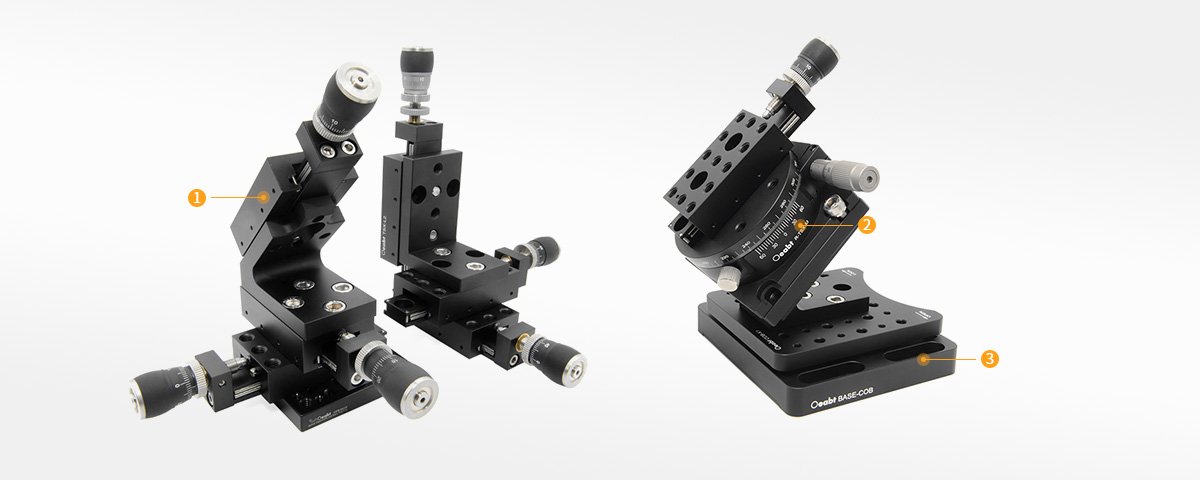

• 一体式、小体积的45°或90°转接件； • 平行度和垂直度偏差在±0.05mm左右； • 适用于构建三轴位移台配件；
Description

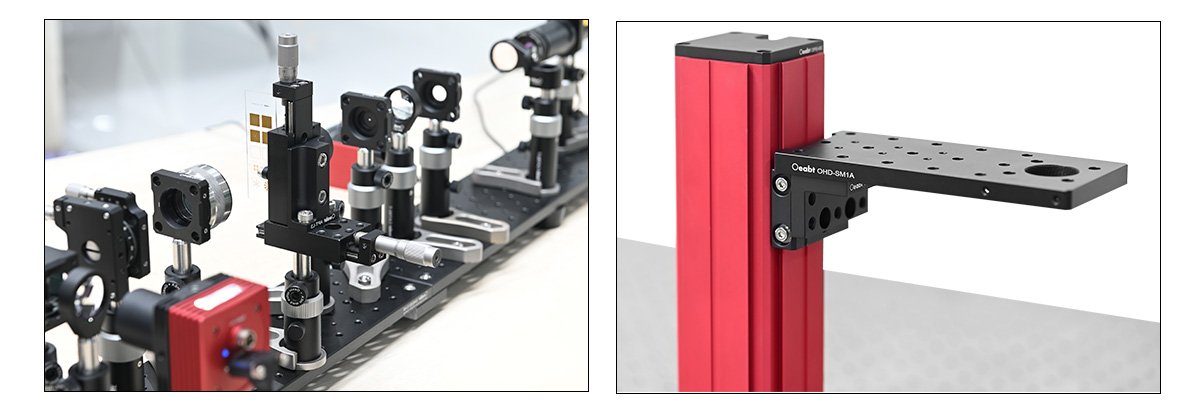

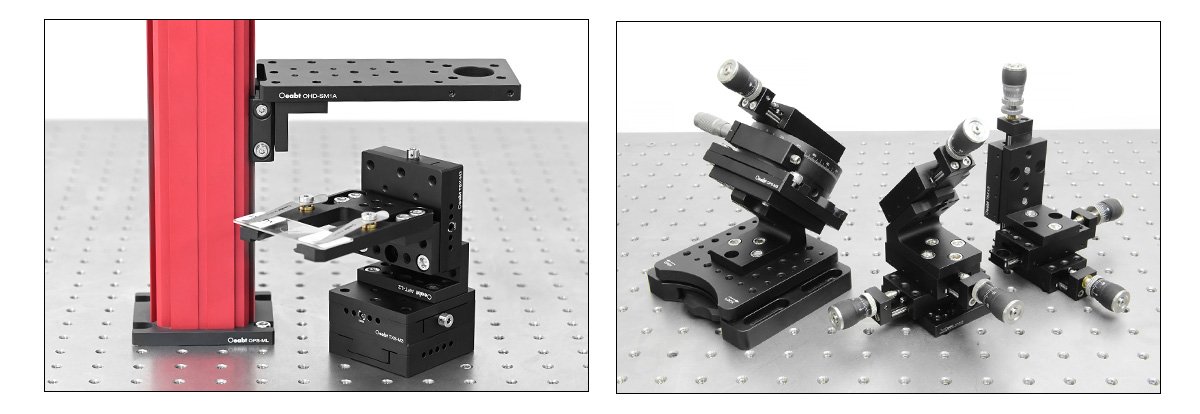

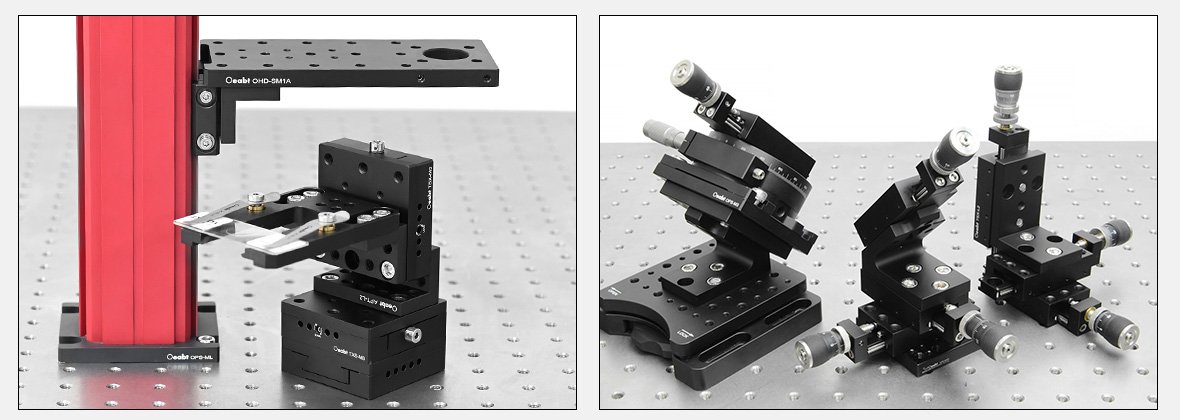

适用于将光机械件相对光学平台、面包板或工作表面以45°或90°角垂直安装
| 型号 | 规格 | 螺纹类型 | 重量 |

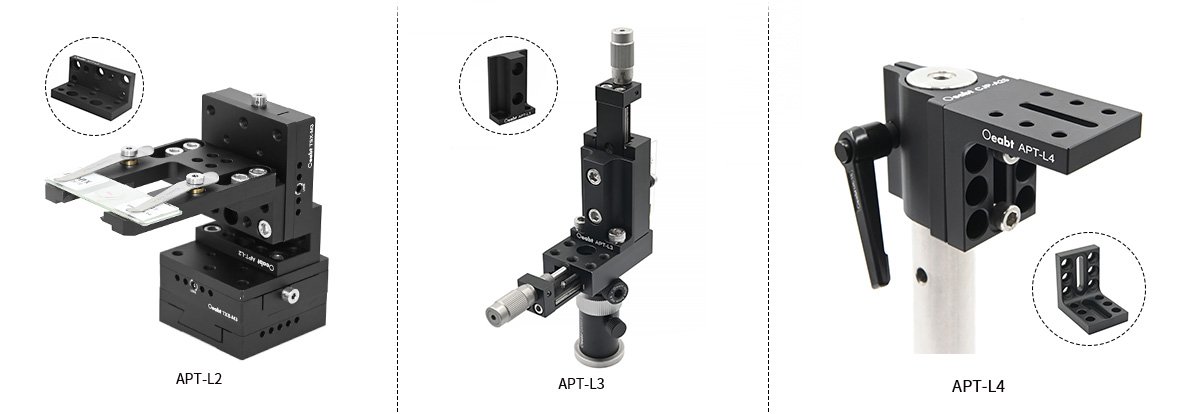

| APT-L2 | 64.0*32.1*32.1mm | 前面板:M6*5处,M6*3处沉孔；底面板:M6*6处,M6*2处沉孔 | 62.6g |

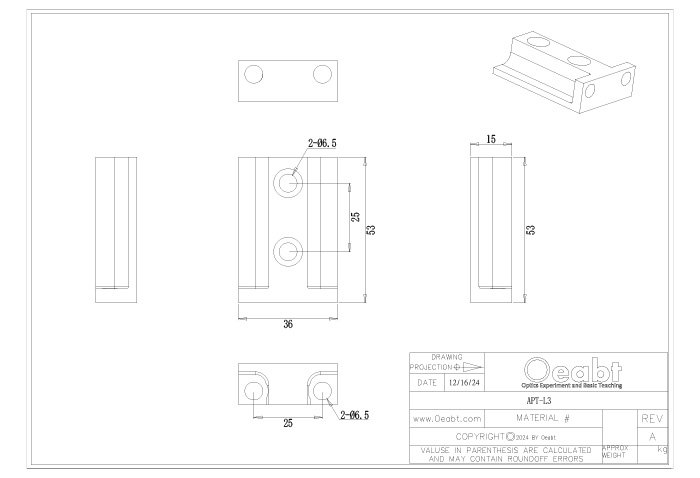

| APT-L3 | 36.0*15.0*53.0mm | 前板:M6*2处；底板:M6*2处 | 39.2g |
| APT-L4 | 50.8*38.2*19.1mm | 上板:M4*6处沉孔、Ø6.5*25.4mm*1处孔槽；侧板:M4*6处沉孔、Ø4.5*25.4mm*1处孔槽 | 72.6g |

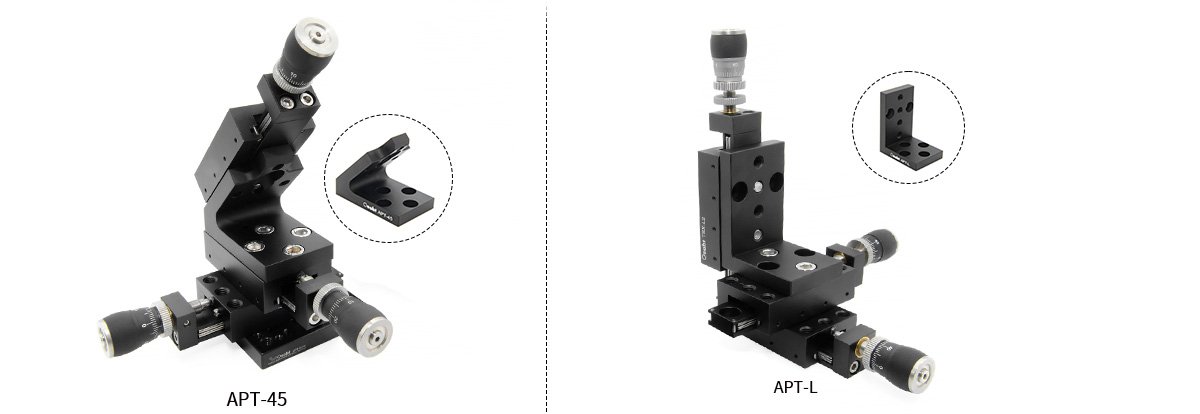

| APT-L | 48.0*36.0*60.0mm | 4处M6螺孔，6处Ø6.2mm沉头孔 | 66.6g |
| APT-45 | 60.0*36.0*53.0mm | 5处M6螺孔，4处Ø6.2mm沉头孔 | 74.7g |
Additional information
| 型号 | APT-L, APT-45, APT-L2, APT-L3, APT-L4 |
|---|
