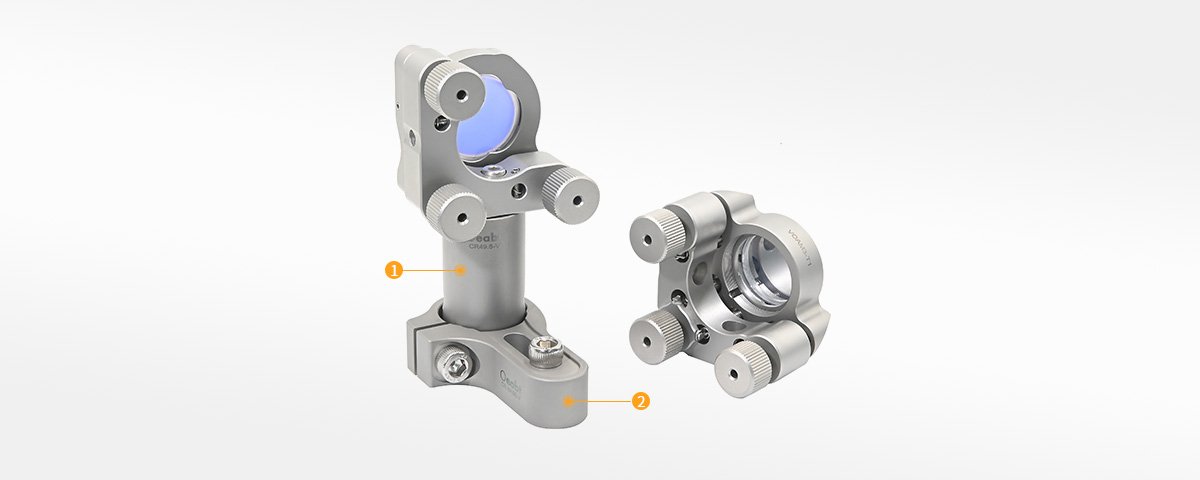

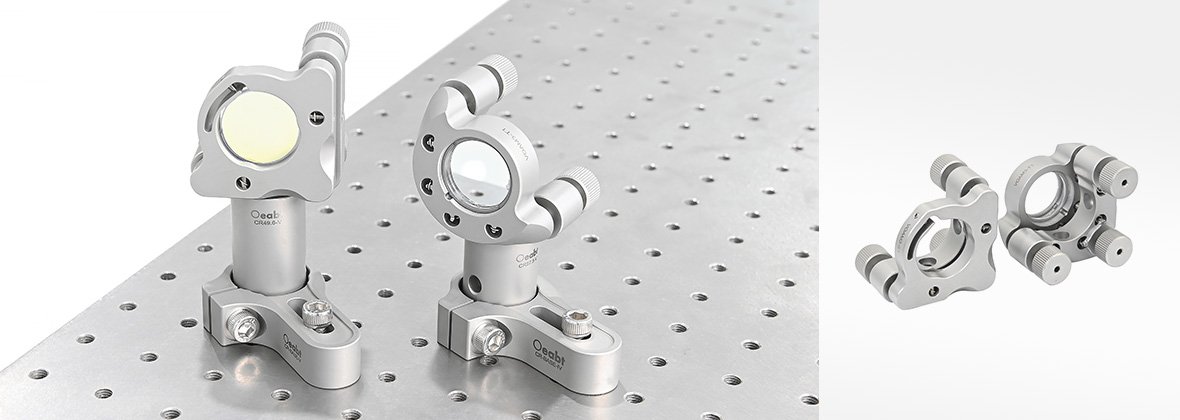

VOAM3-1系列 Ø1英寸低漂移三轴调整镜架
Price range: $915.00 through $1,372.00

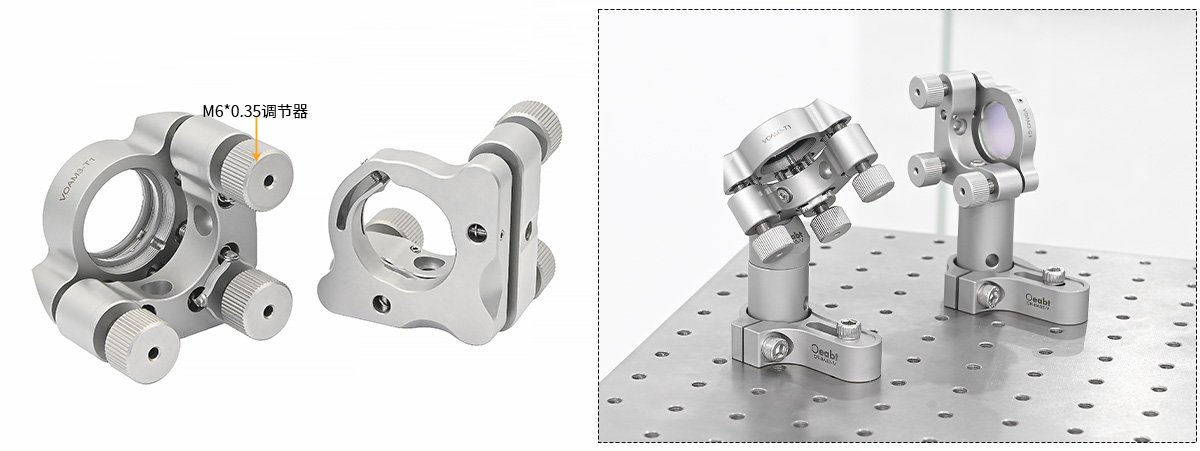

• 三轴调节，调节器：M6*0.35； • ±4°角度调节，精度14.13mrad/rev； • 兼容安装Ø1英寸光学元件；
Description
低漂移调整架由经过热处理的不锈钢制成，相比其它光学调整架具有较高的耐用性和温度性能。

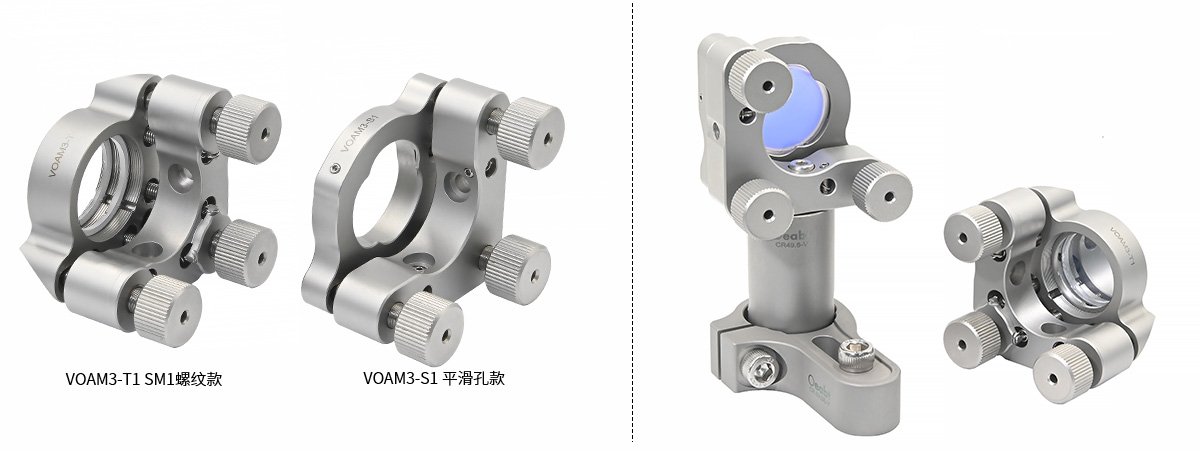

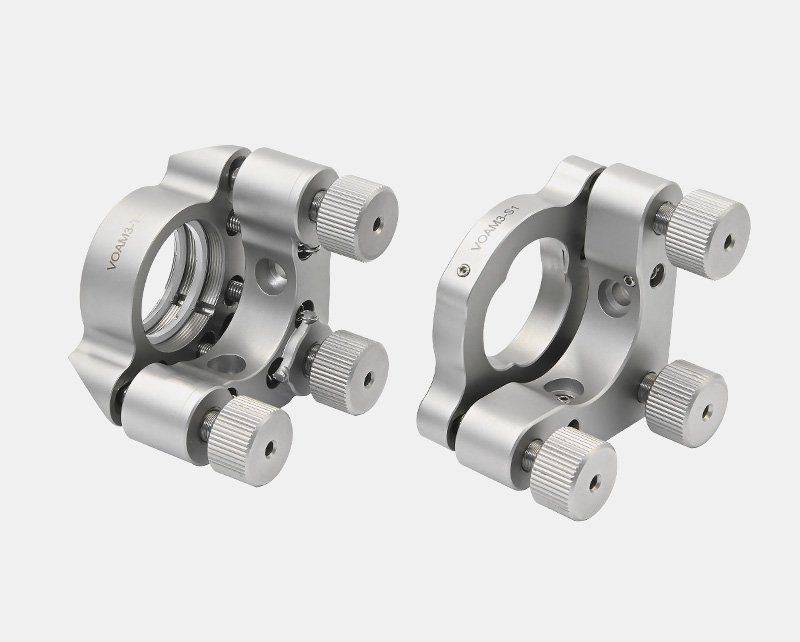

| 型号 | VOAM3-T1 | VOAM3-S1 |

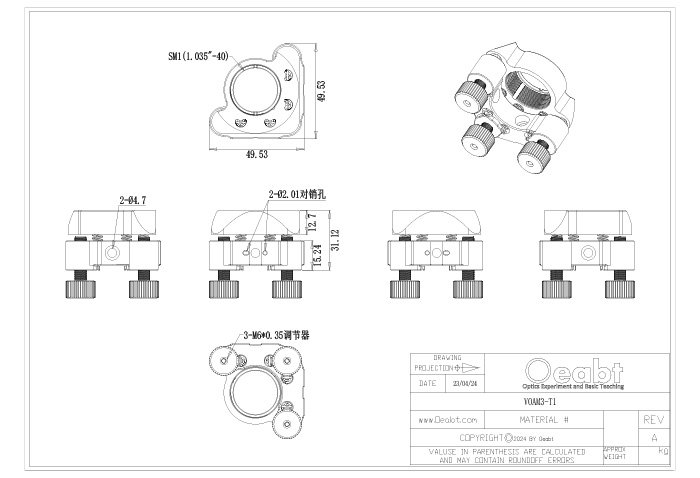

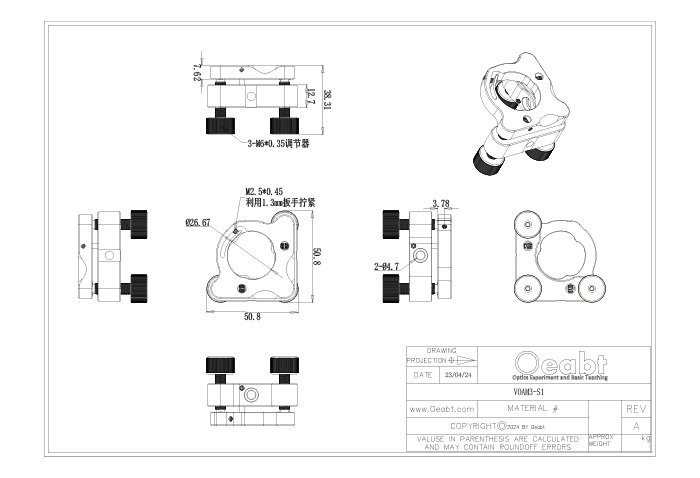

| 规格 | 49.6*49.6*28.8mm | 49.5*49.5*23.7mm |
| 调节范围 | ±4°角度调节，精度14.13mrad/rev | |
| 中心孔径 | SM1（1.035”-40）内螺纹 | Ø26.0mm |
| 安装镜片 | Ø1英寸，厚度≤8.75mm | Ø1英寸 |
| 螺孔类型 | M4*2处（沉头孔） | |
| 重量 | 229.8g | 210.0g |
| 材质 | 304不锈钢热处理 | |
Additional information
| 型号 | VOAM3-T1, VOAM3-S1 |
|---|---|
| 材质 | 304不锈钢热处理 |
| 端口孔径 | Ø26.0mm, SM1（1.035”-40）内螺纹 |
