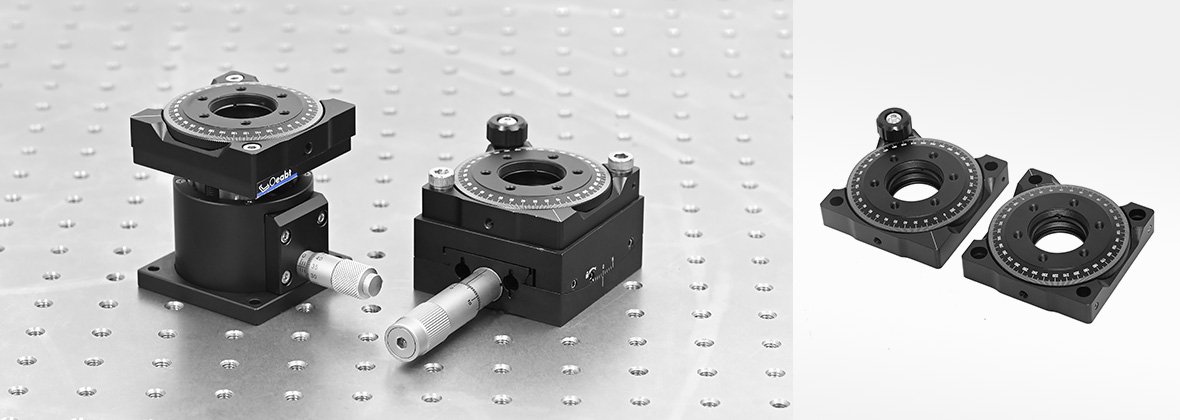

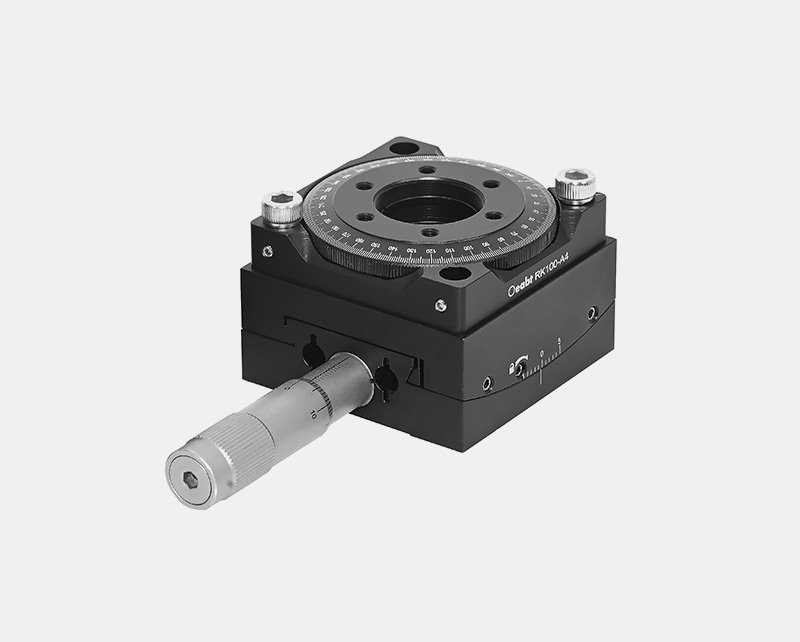

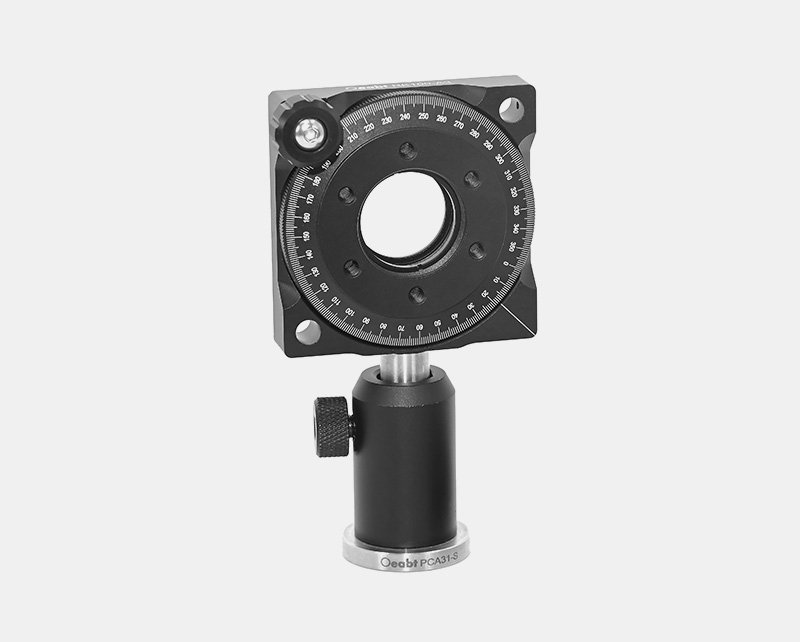

RK100-A3 旋转镜架360度分度台
Price range: $165.00 through $185.00
• 360°连续旋转，分度1°； • SM1（1.035”-40）内螺纹； • 兼容安装Ø1英寸的偏振光学元器件；
Description

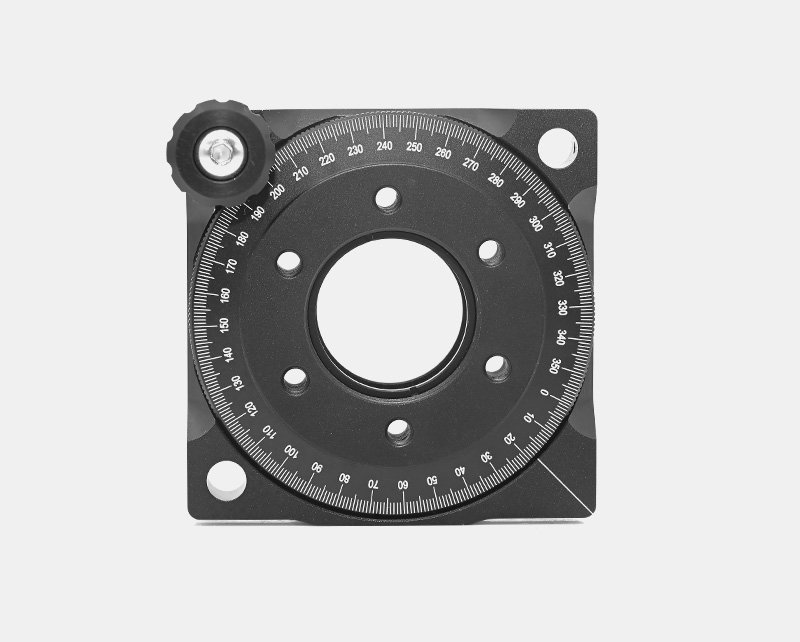

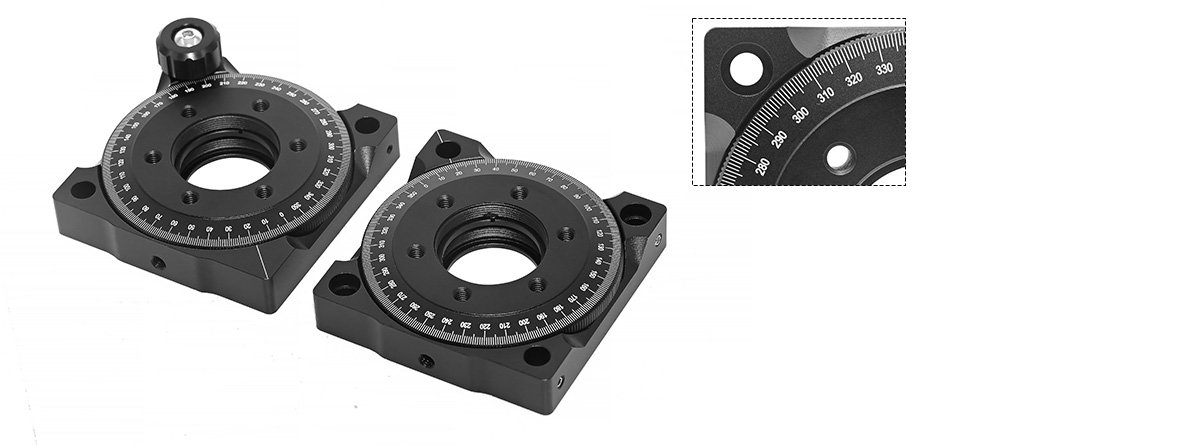

分度台具有完整的滚珠轴承座圈，旋扭平台的滚花边缘或旋钮进行连续旋转，一侧边角激光刻有对准线，用于辅助对准。 刻度盘以1°增量，每10°标记刻度数字以便进行精密移动和重复定位。

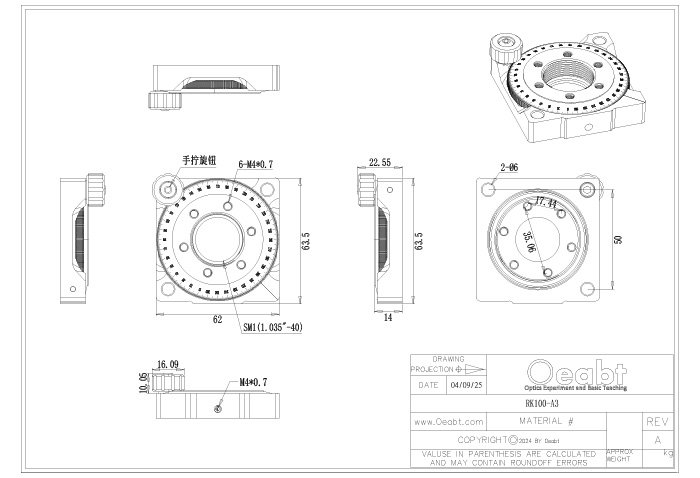

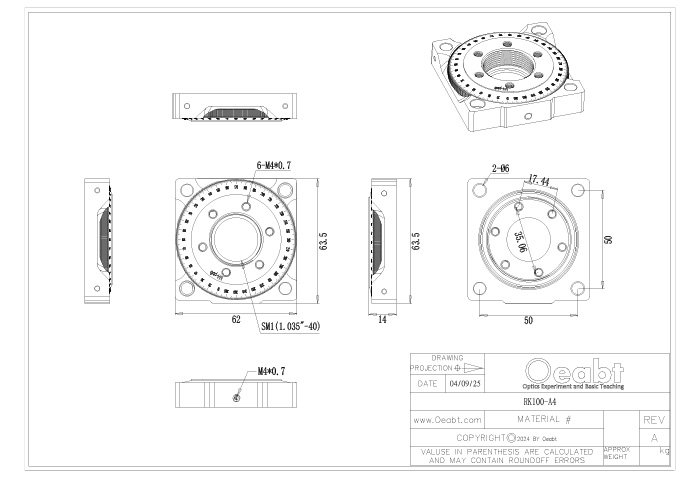

| 规格 | 63.5*62.0*12.5mm |
| 调节范围 | 360°连续旋转，分度1° |

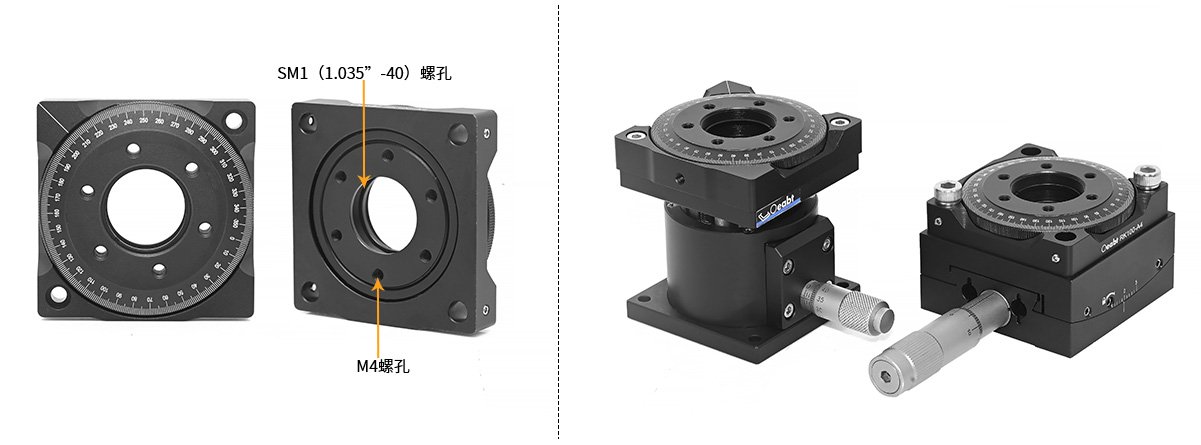

| 中心孔径 | SM1（1.035”-40）内螺纹 |

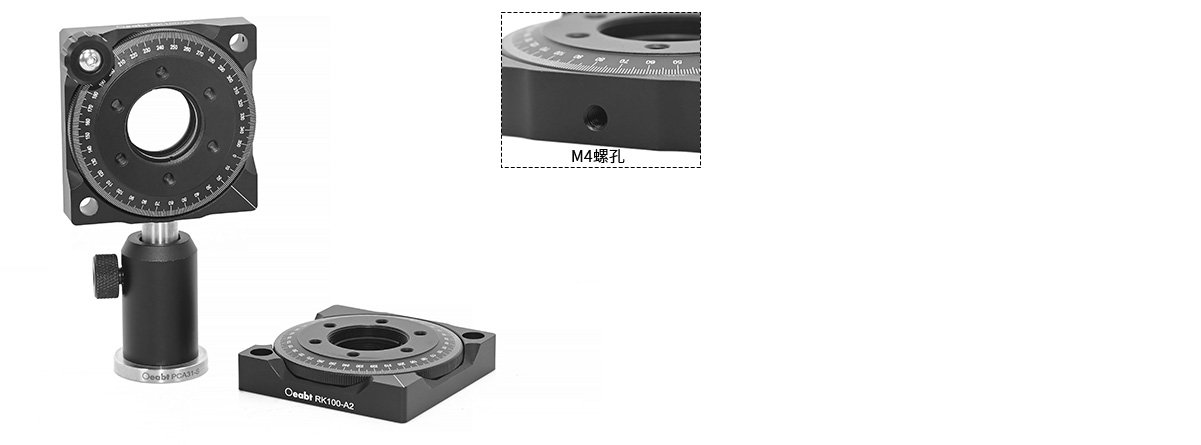

| 螺孔类型 | 台面：M4*6处，底部：M4*1处 |
| 材质 | 7075铝合金 |
| 型号 | 调节方式 | 沉孔间距 | 重量 |
| RK100-A3 | 手拧旋钮 | M6*2处（通孔），对角 | 107.1g |
| RK100-A4 | 滚花边缘 | M6通孔*4处，间距50*50mm | 102.2g |
Additional information
| 型号 | RK100-A3, RK100-A4 |
|---|---|
| 材质 | 7075铝合金 |
| 螺纹类型 | M6通孔*2处，对角, M6通孔*4处，间距50*50mm |
| 安装孔直径 | SM1（1.035”-40）内螺纹 |
