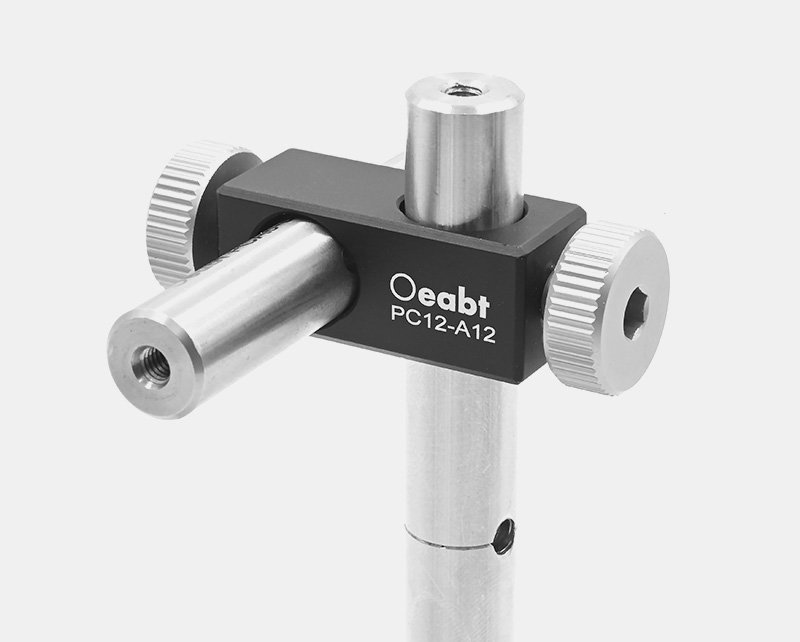

PC12-A12 接杆角度夹具
Price range: $59.00 through $77.00
• 用于Ø12mm或12.7mm接杆不同角度的安装夹具； • 角度选项：固定90°，单个限位孔； • 固定45°(左向或右向式)，两个限位孔；
Description
PC12系列角度夹具是专为优化接杆安装而设计的多功能组装配件。
| 型号 | 规格 | 角度安装 | 限位孔 | 螺孔类型 | 重量 | 兼容接杆 |

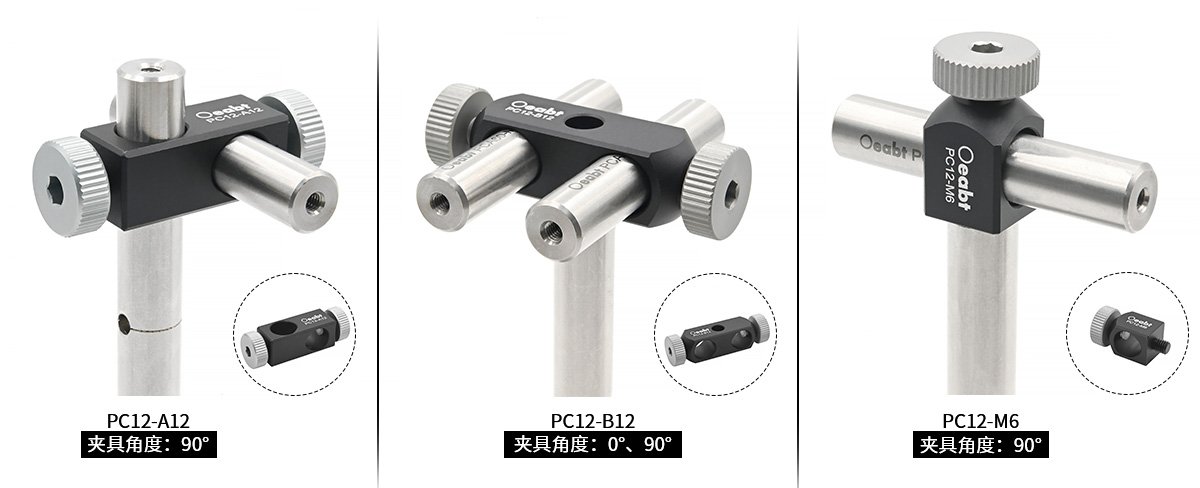

| PC12-A12 | 52.8*15.7*15.7mm | 90° | 2处 | / | 21.7g | Ø12mm（Ø12.7mm）接杆 |

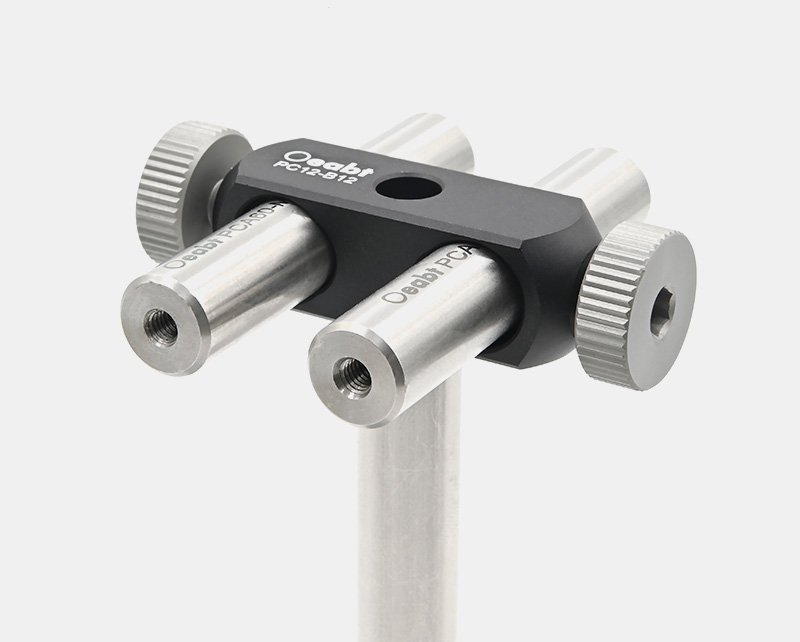

| PC12-B12 | 63.2*15.8*15.8mm | 0°、90° | 2处 | M4*1处（沉头孔） | 25.1g | |

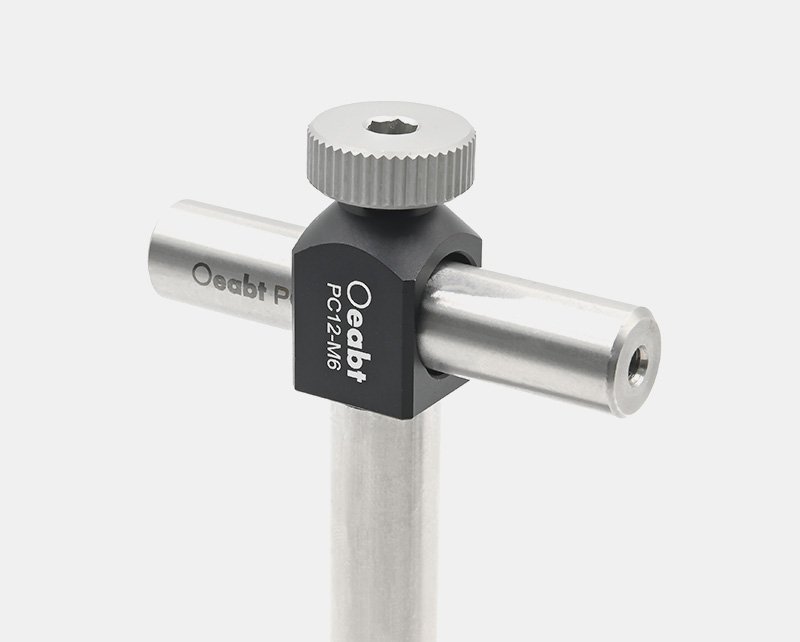

| PC12-M6 | 29.4*15.8*15.8mm | 90° | 1处 | M6*1处（螺栓） | 12.1g | |

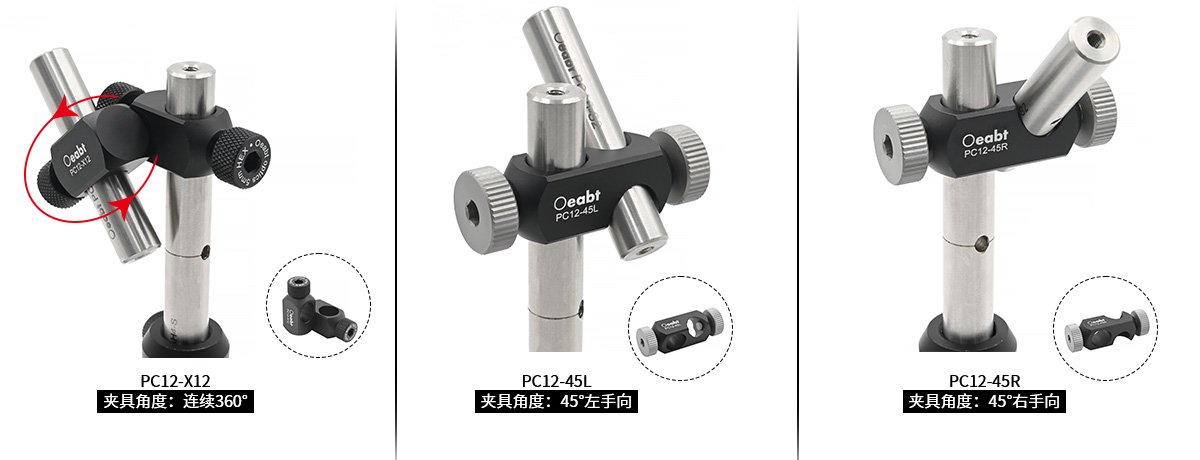

| PC12-45R | 55.5*15.8*15.8mm | 45°右手向 | 2处 | / | 20.7g | |

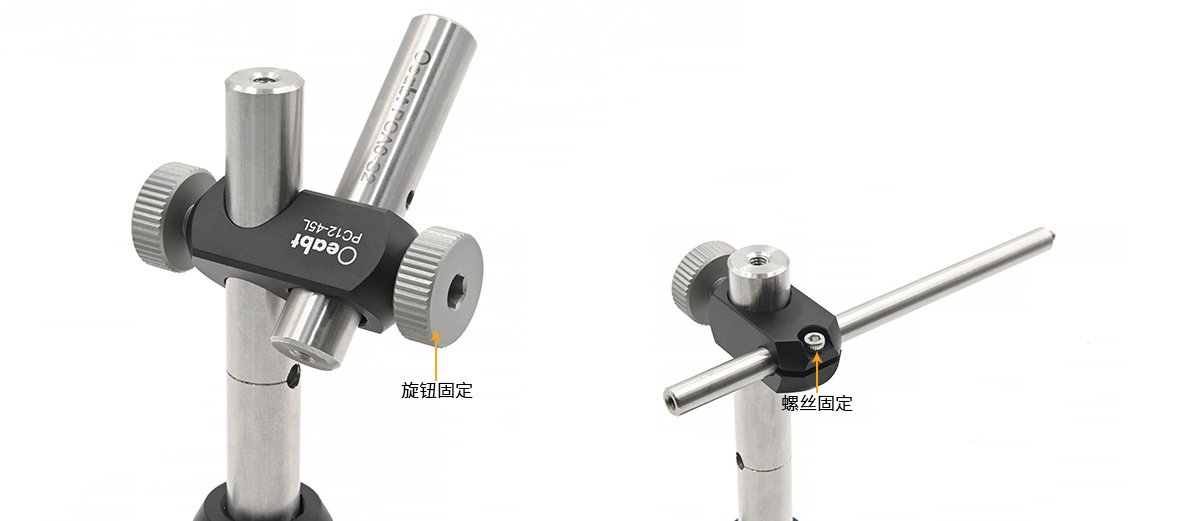

| PC12-45L | 55.5*15.8*15.8mm | 45°左手向 | 2处 | / | 20.7g | |

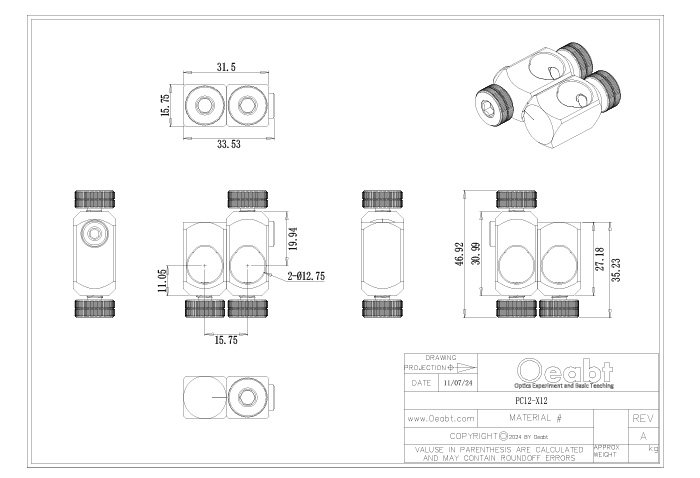

| PC12-X12 | 46.9*33.5*15.8mm | 连续360° | 2处 | / | 38.2g | |

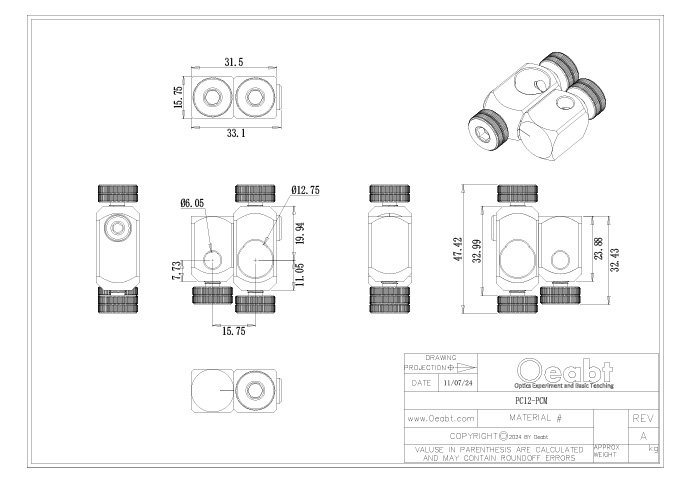

| PC12-PCM | 47.4*33.1*15.8mm | 连续360° | 2处 | / | 40.5g |
Ø6mm笼杆 和Ø12mm（12.7mm）接杆 |

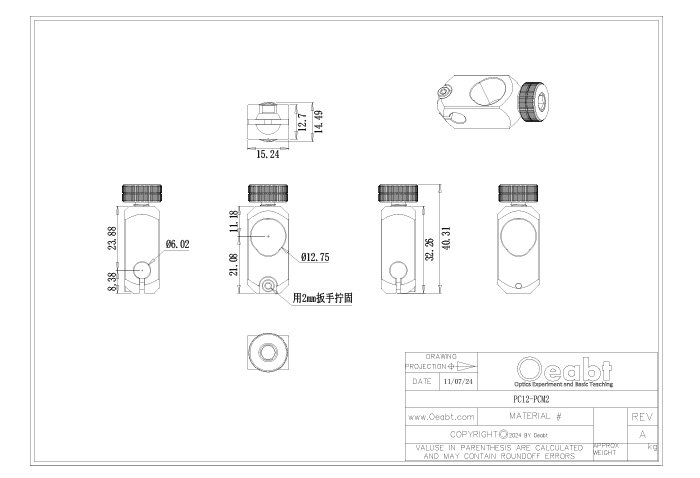

| PC12-PCM2 | 40.3*15.2*14.5mm | 90° | 2处 | / | 13.5g |
Additional information
| 型号 | PC12-A12, PC12-B12, PC12-M6, PC12-45R, PC12-45L, PC12-X12, PC12-PCM, PC12-PCM2 |
|---|
