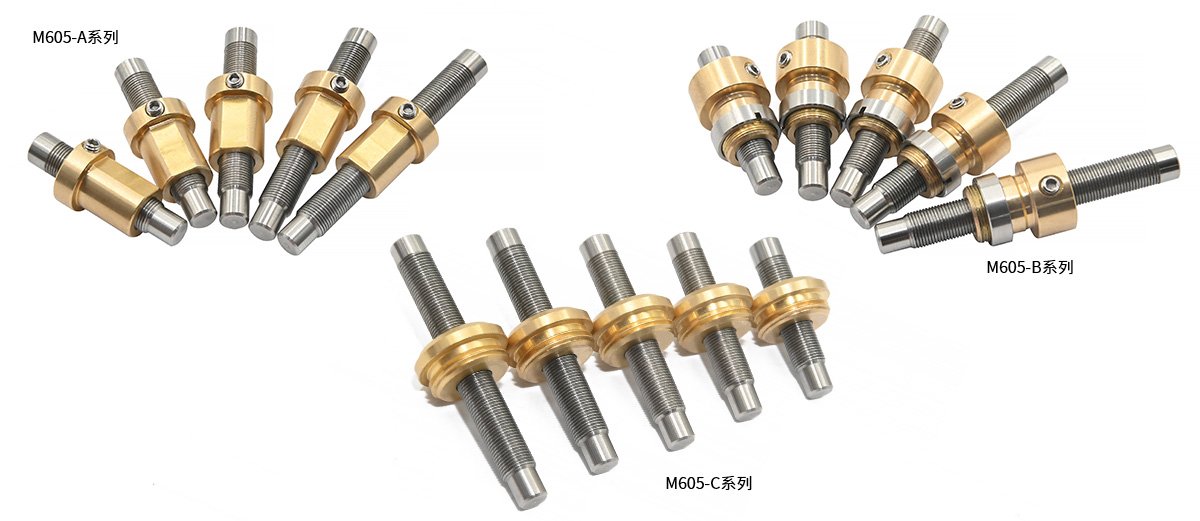

M605-A系列 精调螺丝
Price range: $44.00 through $71.00
• M6*0.5精密调节器； • 螺纹精密小公差，更具灵敏度和调节精度； • 螺纹衬套和锁定螺母，用于螺纹集成；
Description
精调螺丝经过预润滑以确保可平滑匹配所兼容的组件，具有超小公差，达到更高的灵敏度以及调节精度，负载能力较强。
|
型号 |
调节螺丝 |
螺纹长度 |
黄铜类型 |
重量 |
|
|
黄铜尺寸 |
安装直径 |
||||
|

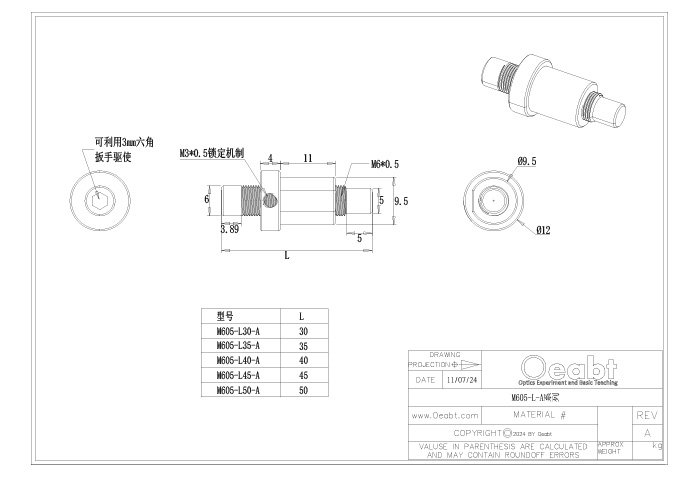

M605-L30-A |
M6*0.5 |
30mm |
Ø12*15mm |
Ø9.5mm |
12.3g |
|
M605-L35-A |
35mm |
13.3g |
|||
|
M605-L40-A |
40mm |
14.2g |
|||
|
M605-L45-A |
45mm |
15.1g |
|||
|
M605-L50-A |
50mm |
16.2g |
|||
|

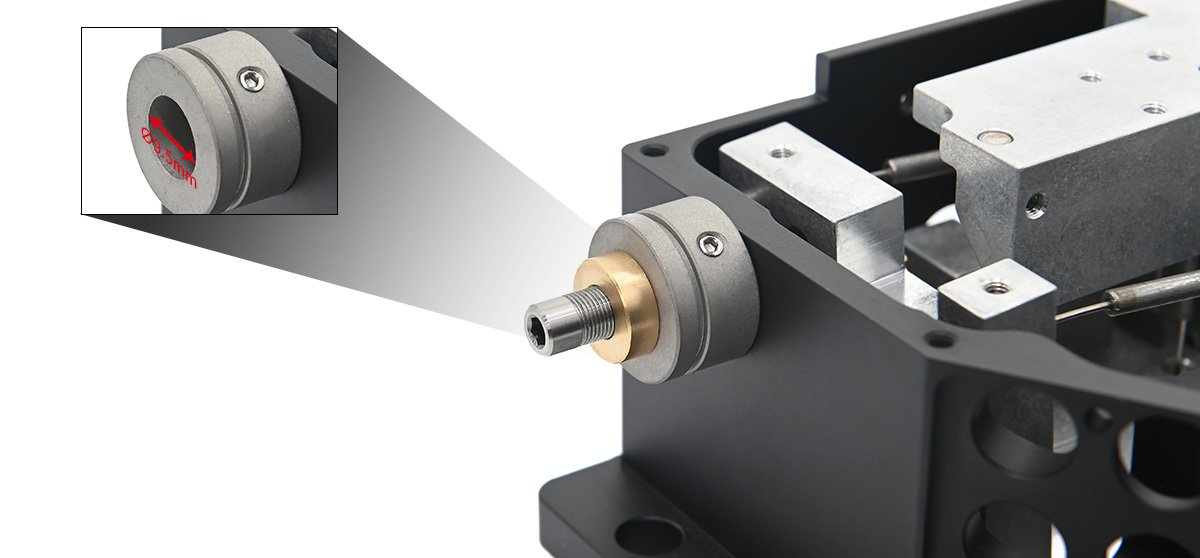

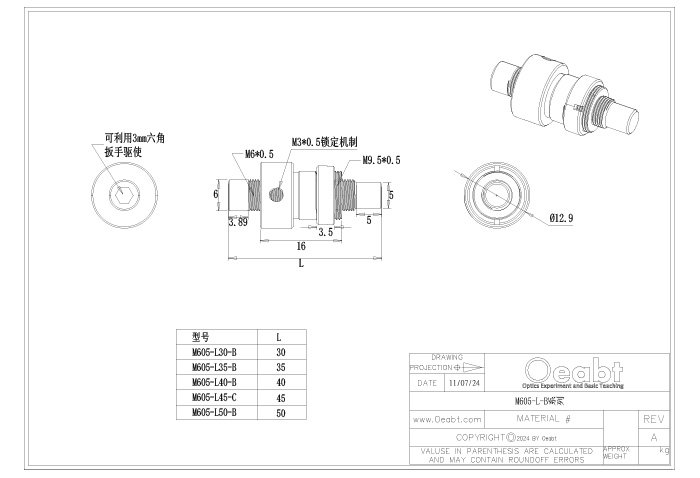

M605-L30-B |
30mm |
Ø12.9*16mm |
M9.5*0.5 |
15.1g |
|
|
M605-L35-B |
35mm |
16.0g |
|||
|
M605-L40-B |
40mm |
17.0g |
|||
|
M605-L45-B |
45mm |
18.0g |
|||
|
M605-L50-B |
50mm |
19.0g |
|||
|

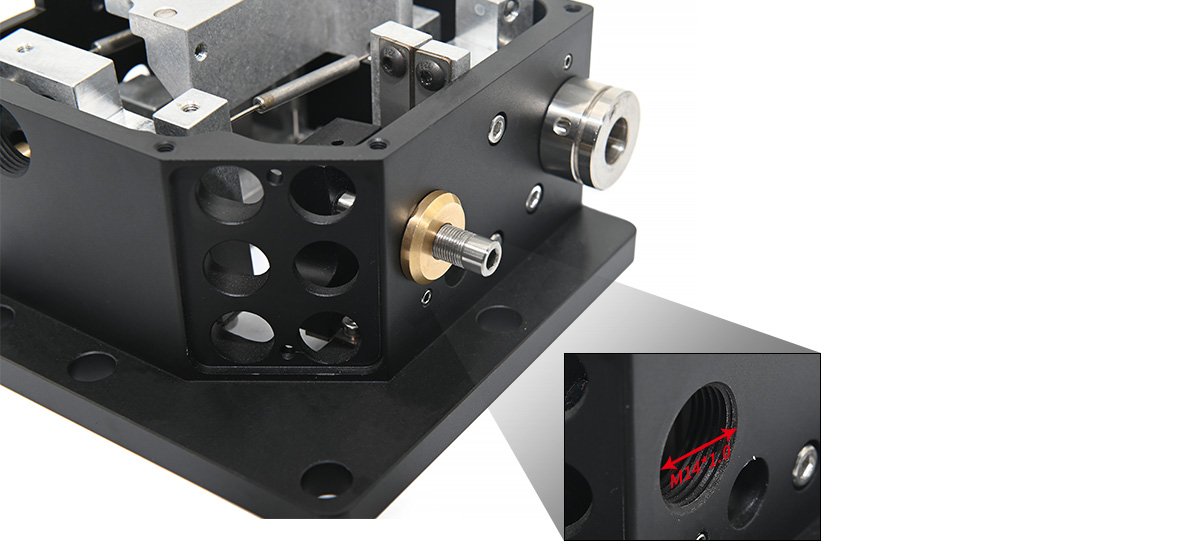

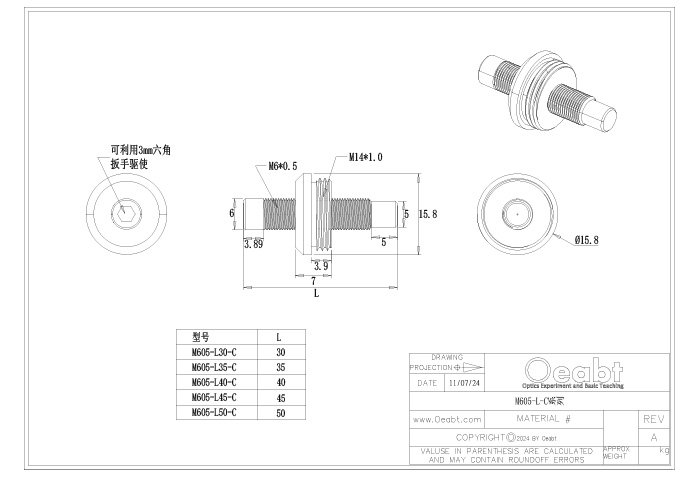

M605-L30-C |
30mm |
Ø15.8*7mm |
M14*1.0 |
13.0g |
|
|
M605-L35-C |
35mm |
14.0g |
|||
|
M605-L40-C |
40mm |
15.0g |
|||
|
M605-L45-C |
45mm |
16.0g |
|||
|
M605-L50-C |
50mm |
17.0g |
|||
Additional information
| 型号 | M605-L30-A, M605-L35-A, M605-L40-A, M605-L45-A, M605-L30-B, M605-L50-A, M605-L35-B, M605-L40-B, M605-L45-B, M605-L50-B, M605-L30-C, M605-L35-C, M605-L40-C, M605-L45-C, M605-L50-C |
|---|
