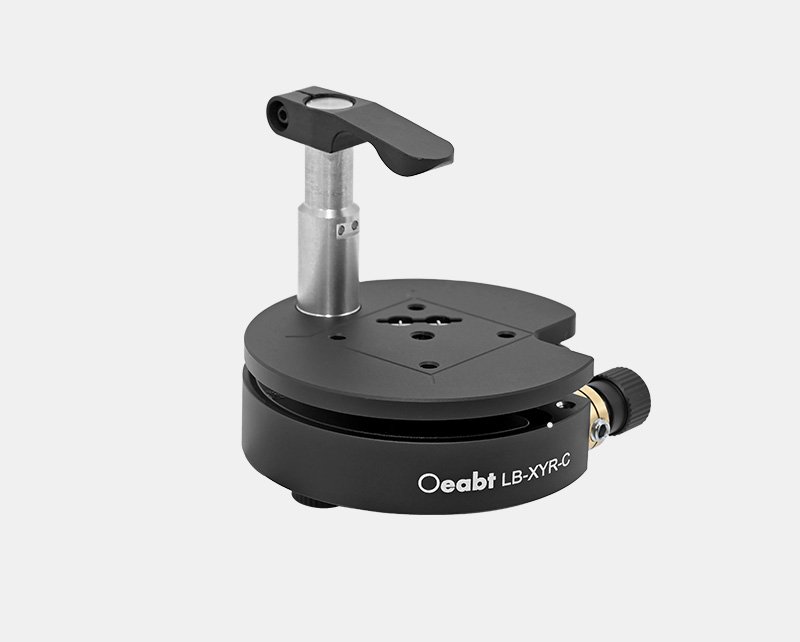

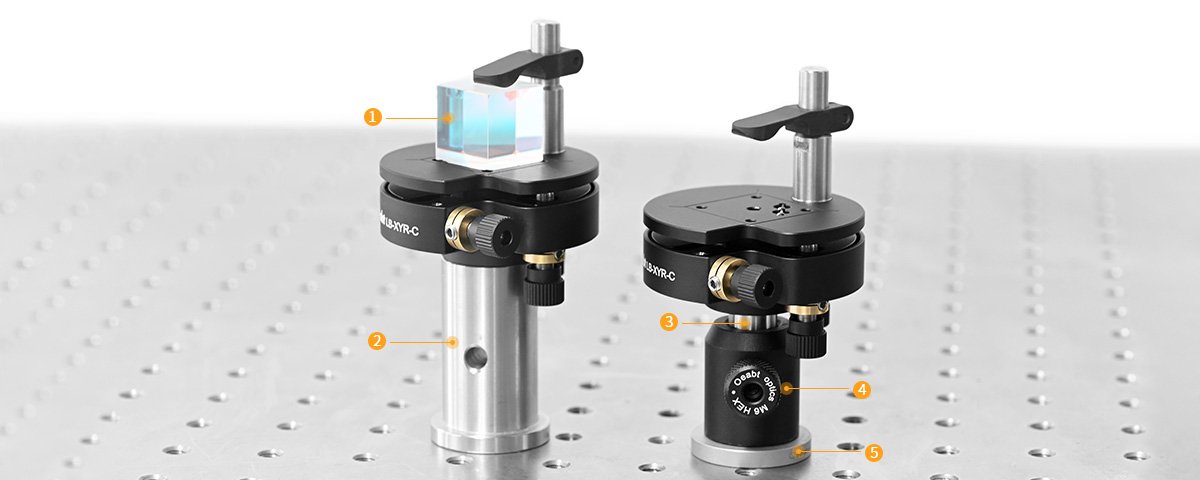

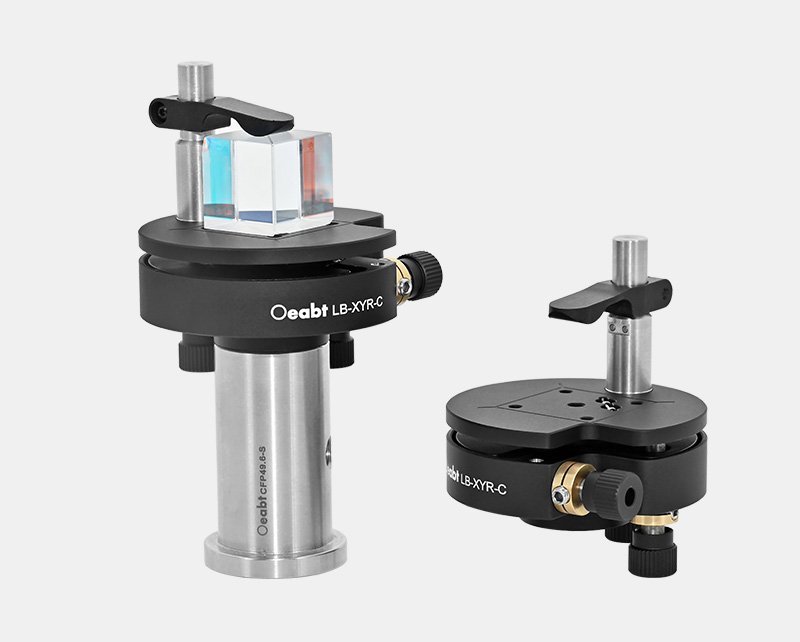

LB-XYR-C 棱镜倾斜调整架
$1,005.00
• 三轴倾斜，提供俯仰和偏转调节±5°； • 用于安装高度在17.5~28.0mm的棱镜、分束镜、非标准光学元件； • 可锁定式M5*0.25调节螺钉；
Description

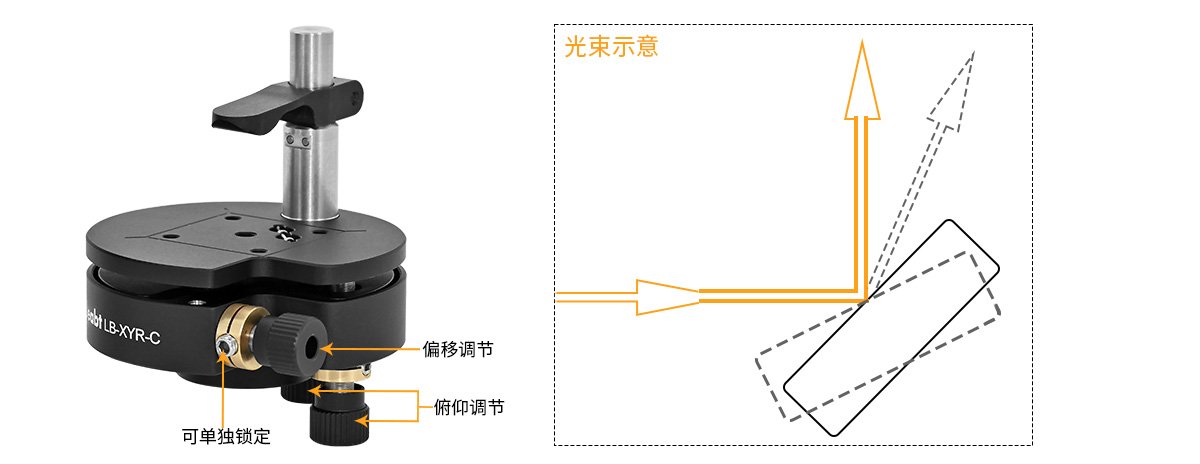

LB-XYR-C棱镜调整架具有与光学元件反射表面中心相交的旋转轴，可消除在调整期间不必要的线性光束平移，是分束光学器件或棱镜精密对准的理想解决方案。
| 型号 | LB-XYR-C |

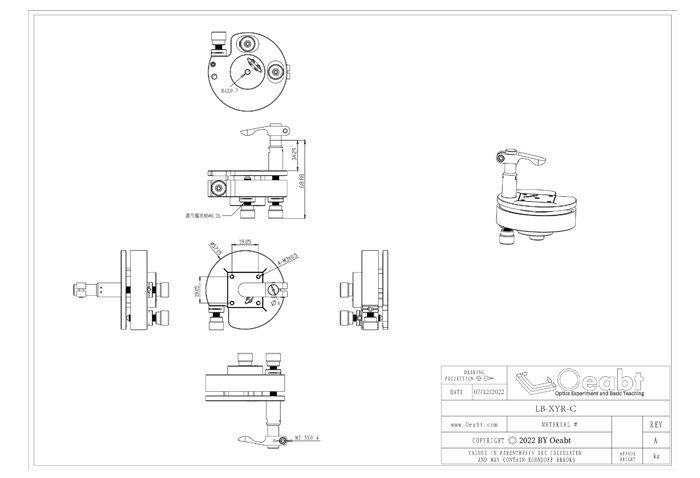

| 规格 | Ø57.2*68.9mm |
| 调节范围 | 俯仰倾斜、偏转调节±5 |

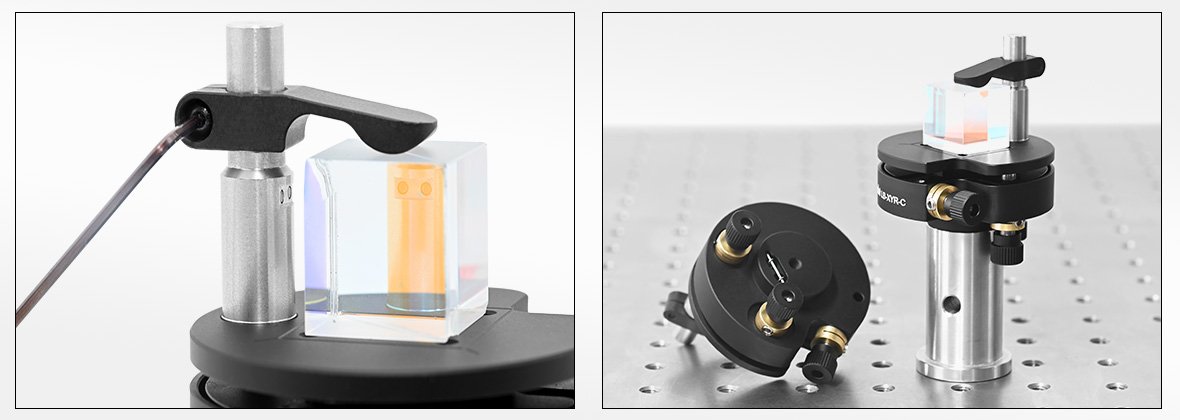

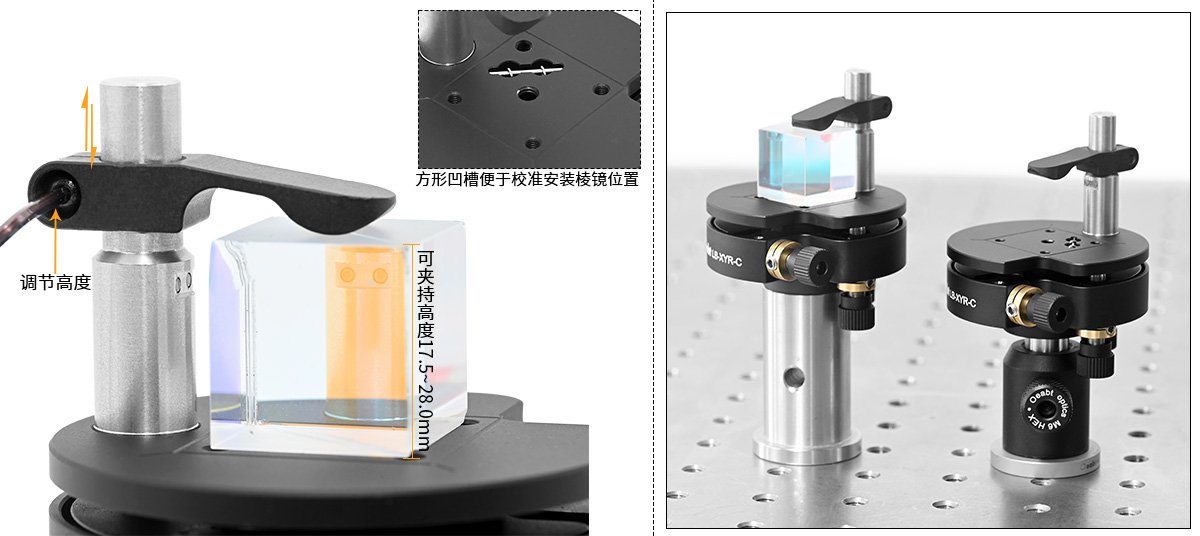

| 夹持高度 | 17.5~28.0mm |

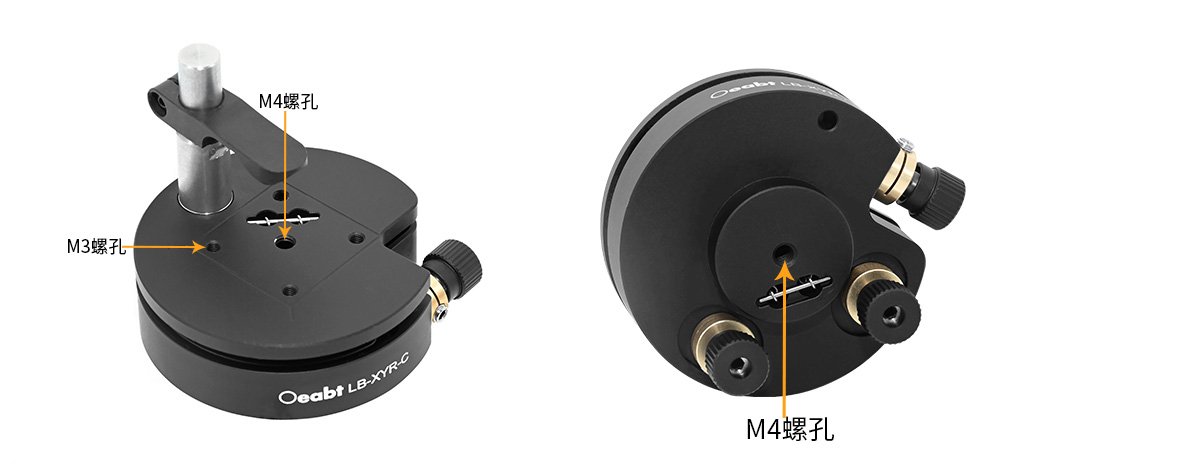

| 螺纹类型 | 台面：M3*4处、M4*1处；底部：M4*1处 |
| 重量 | 139.2g |
| 材质 | 铝合金+不锈钢 |
Additional information
| 型号 | LB-XYR-C |
|---|---|
| 材质 | 7075铝合金+不锈钢 |
| 螺纹类型 | 台面：M3*4处、M4*1处；底部：M4*1处 |
| 安装孔直径 | / |
