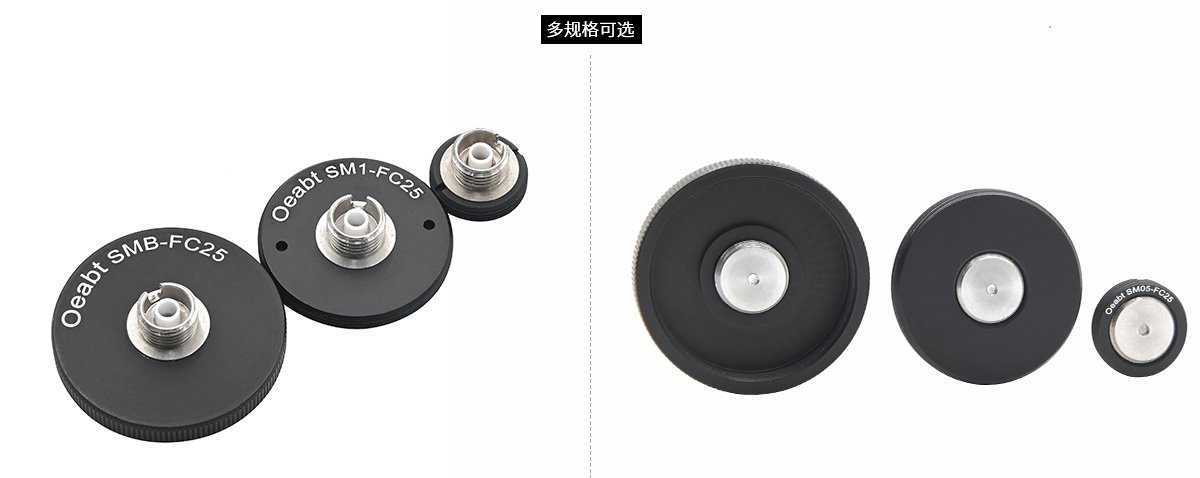

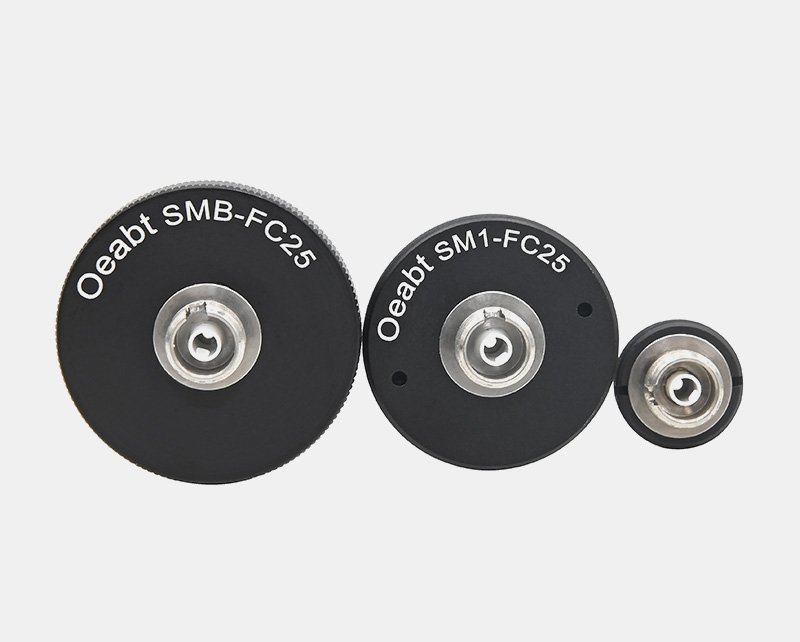

FC/PC 光纤接头转接盘
Price range: $118.00 through $148.00

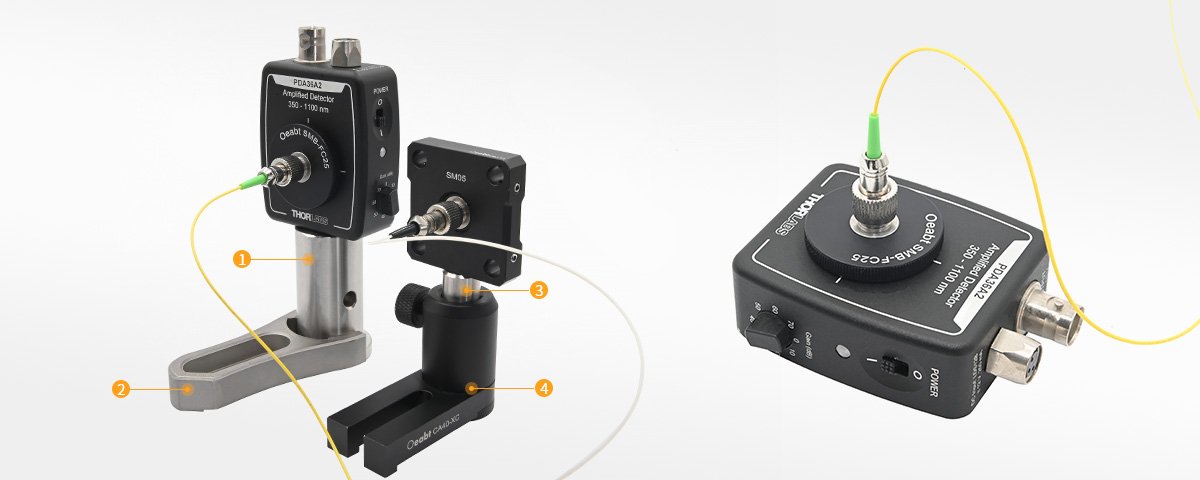

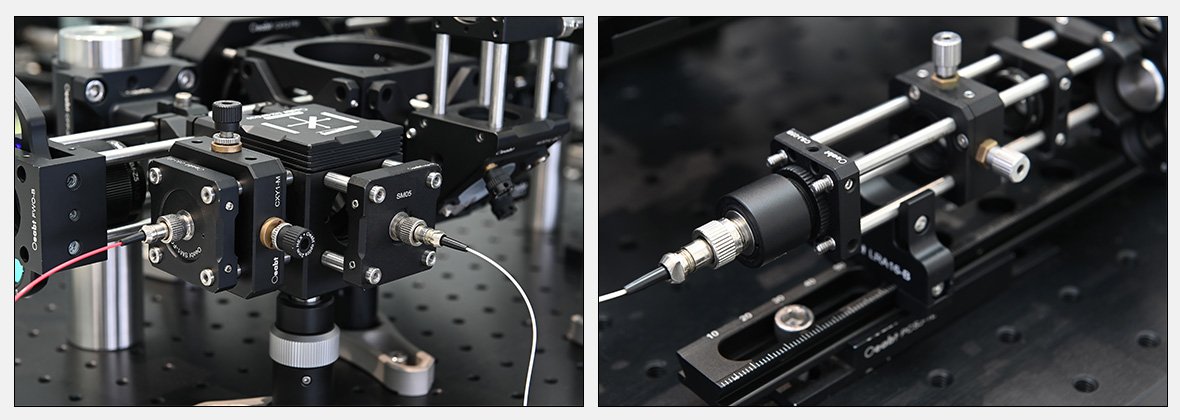

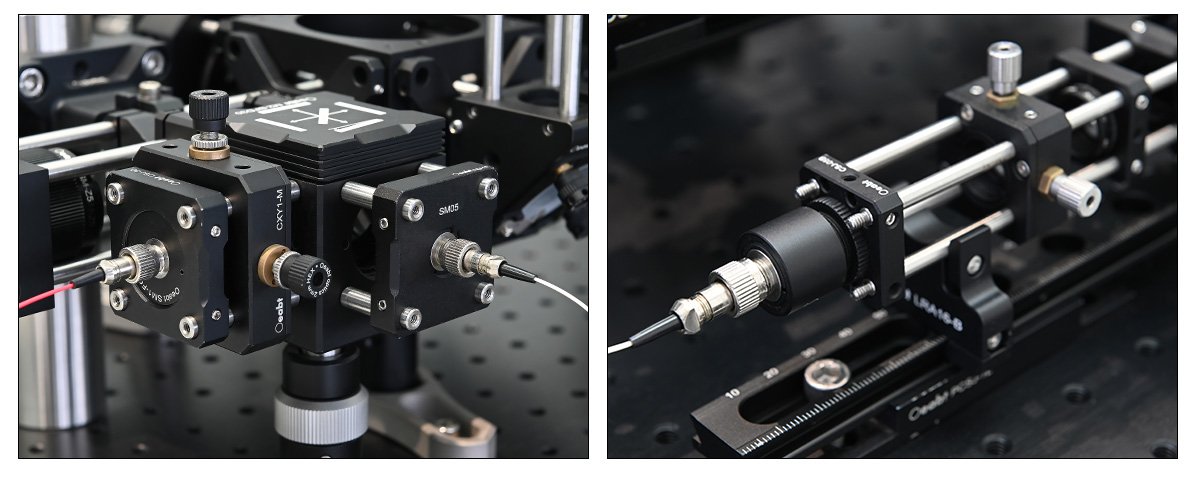

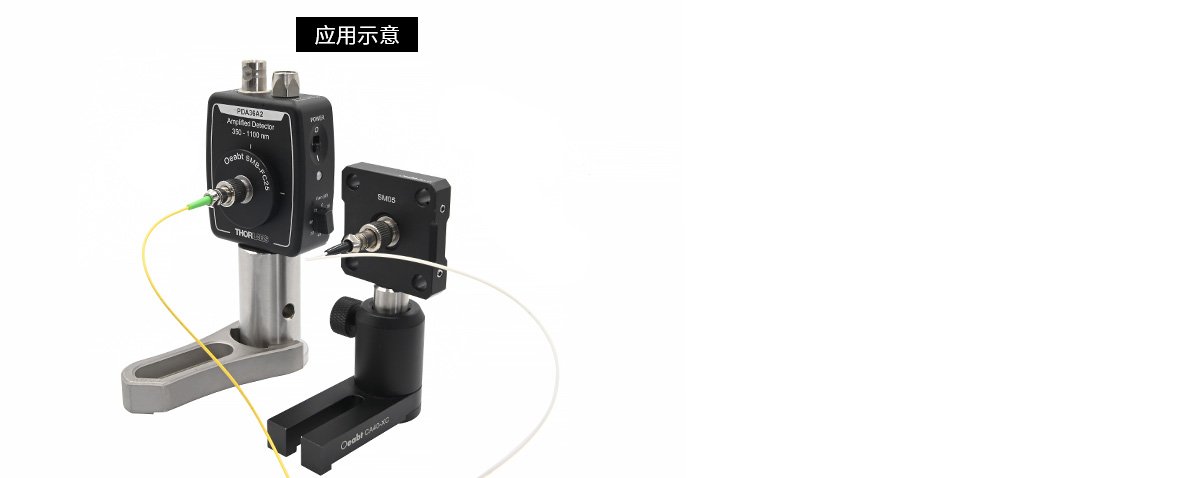

• FC插口转接盘，宽键2.2mm，插口孔径Ø2.5mm； • 常用于组装自由空间光纤耦合器和准直器或其他自由空间耦合应用； • 搭配透镜套管实现不透光的结构；
Description

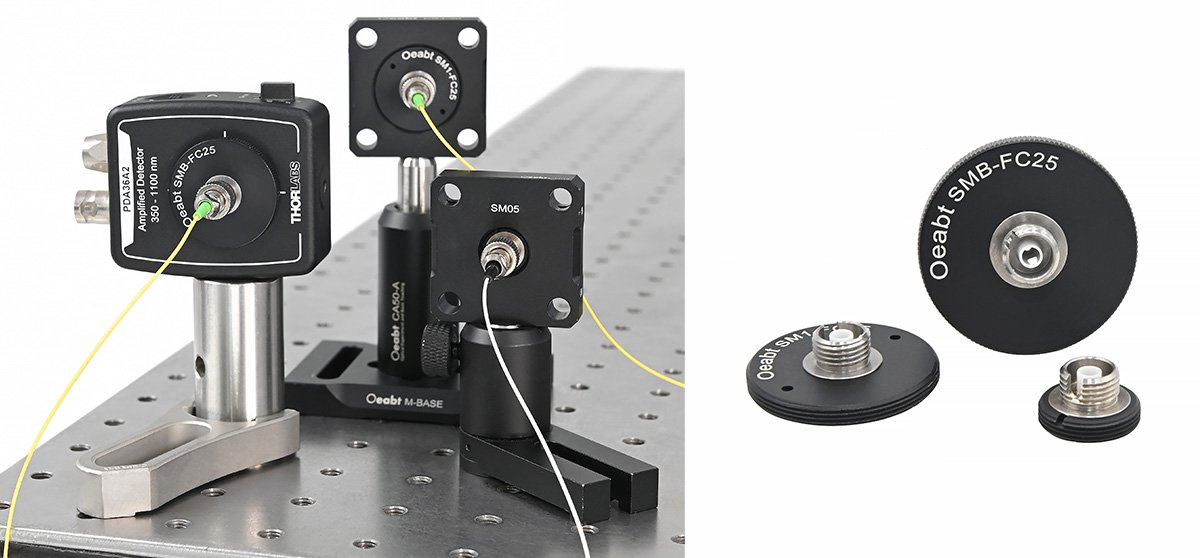

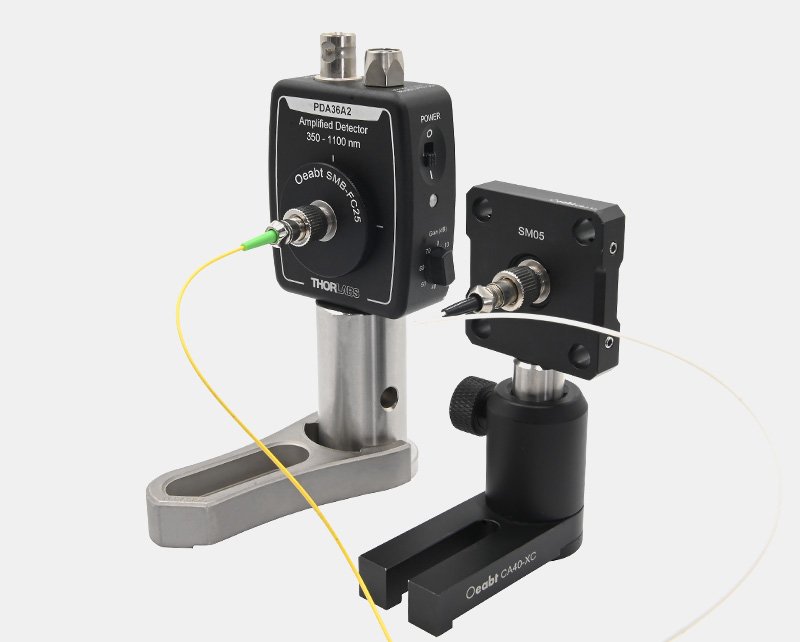

FC光纤转接盘可以将FC/PC接头的光纤连接至带SM螺纹的组件上。
|
插口类型 |
FC/PC接口，宽键2.2mm |
|
插口孔径 |
Ø2.5mm |
|
材质 |
铝合金+不锈钢+陶瓷芯 |
|
型号 |

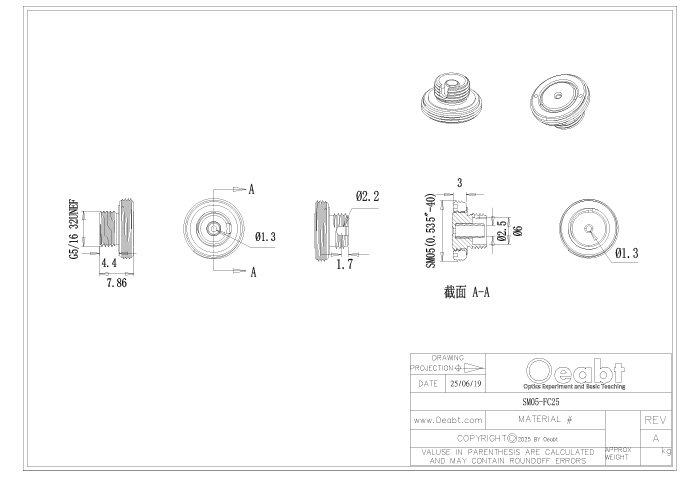

SM05-FC25 |

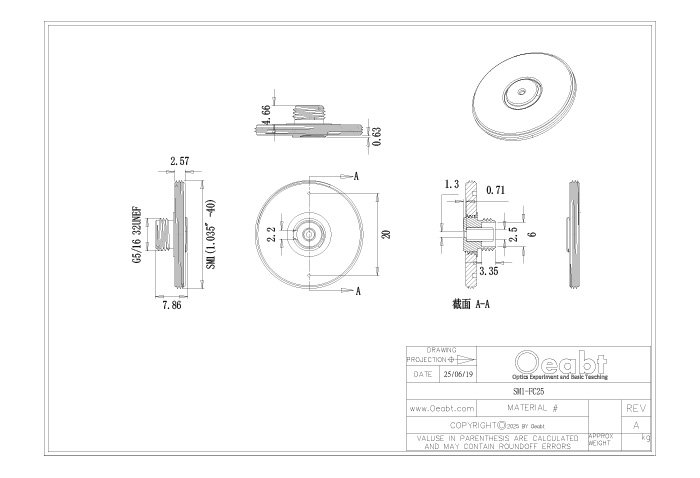

SM1-FC25 |

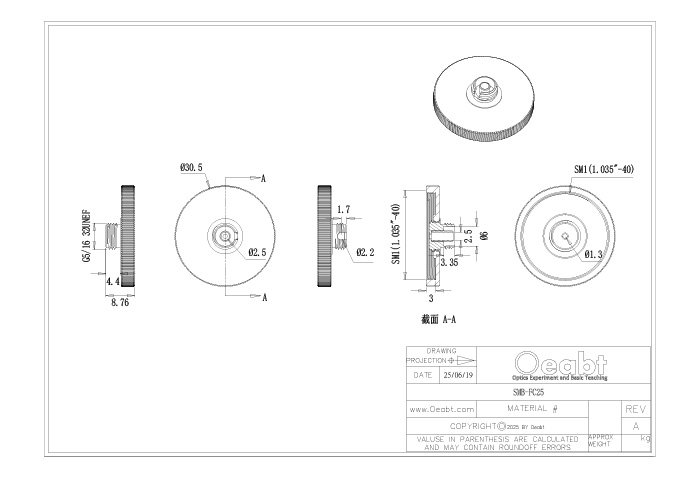

SMB-FC25 |
|
规格 |
Ø13.3*7.6mm |
Ø26*7.6mm |
30.4*7.6mm |
|
螺纹类型 |
SM05(0.535”-40)外螺纹 |
SM1(1.035”-40)外螺纹 |
SM1(1.035”-40)内螺纹 |
|
重量 |
2.7g |
5.7g |
5.8g |
Additional information
| 型号 | SM05-FC25, SM1-FC25, SMB-FC25 |
|---|---|
| 材质 | 铝合金+不锈钢+陶瓷芯 |
