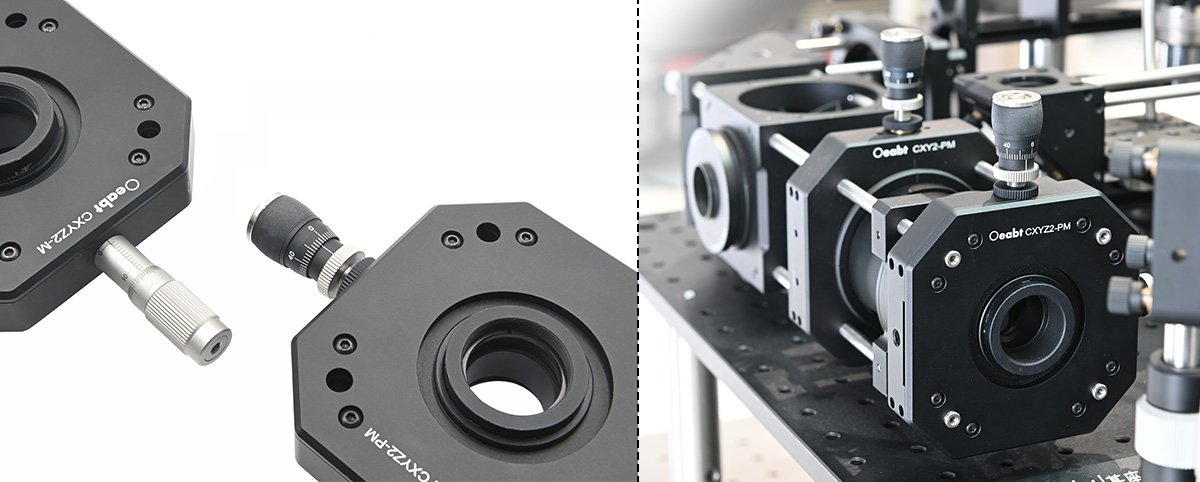

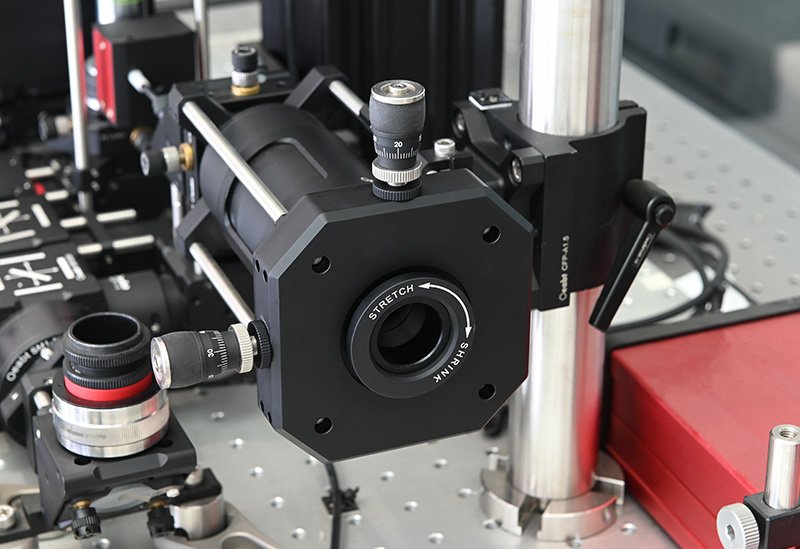

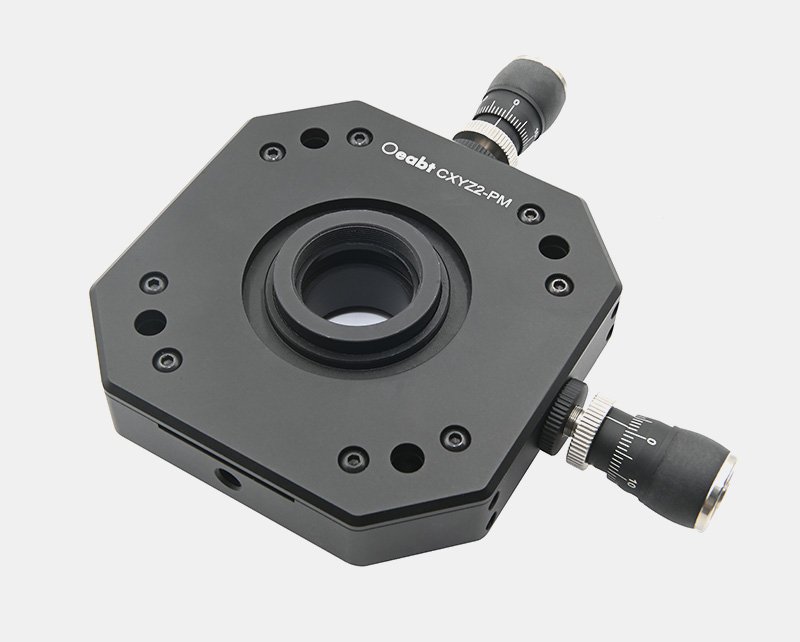

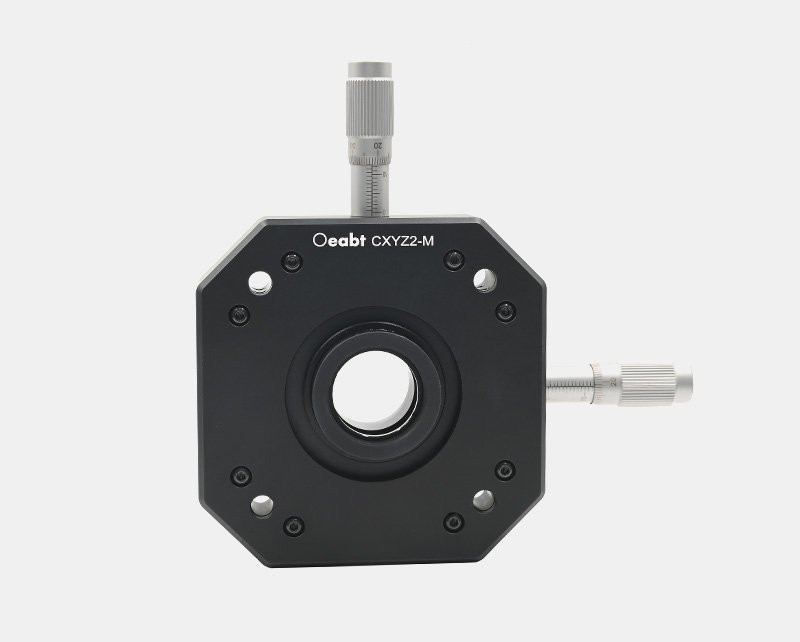

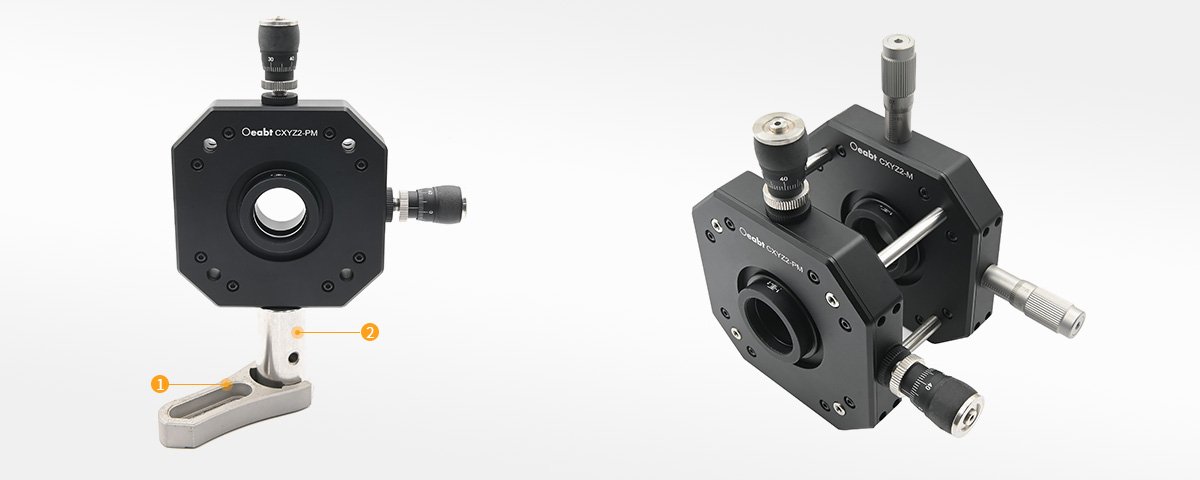

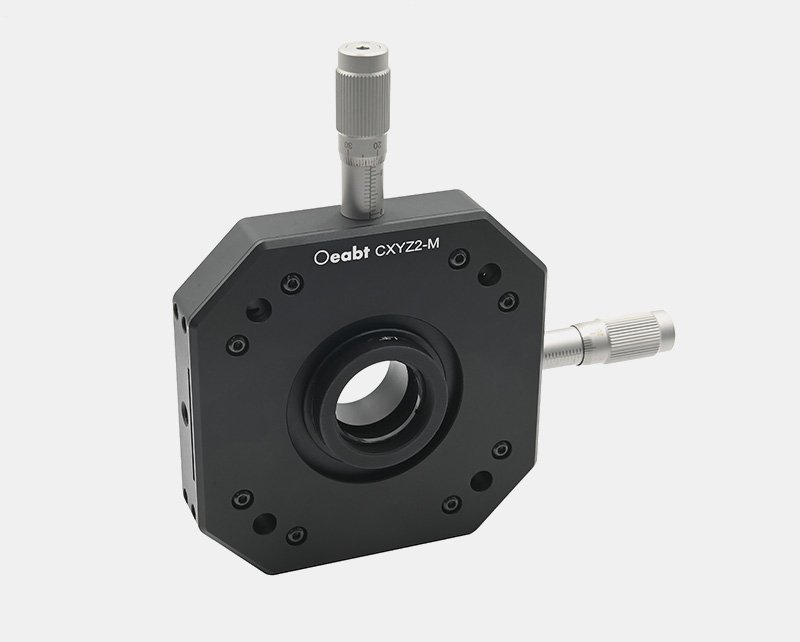

CXYZ2-M 笼式XYZ平移安装架
Price range: $1,290.00 through $1,389.00
• 兼容60mm笼式系统； • X轴和Y轴的行程为±3mm，非旋转Z轴行程±1.5mm； • 能安装Ø1英寸最厚为10.5mm的光学元件；
Description

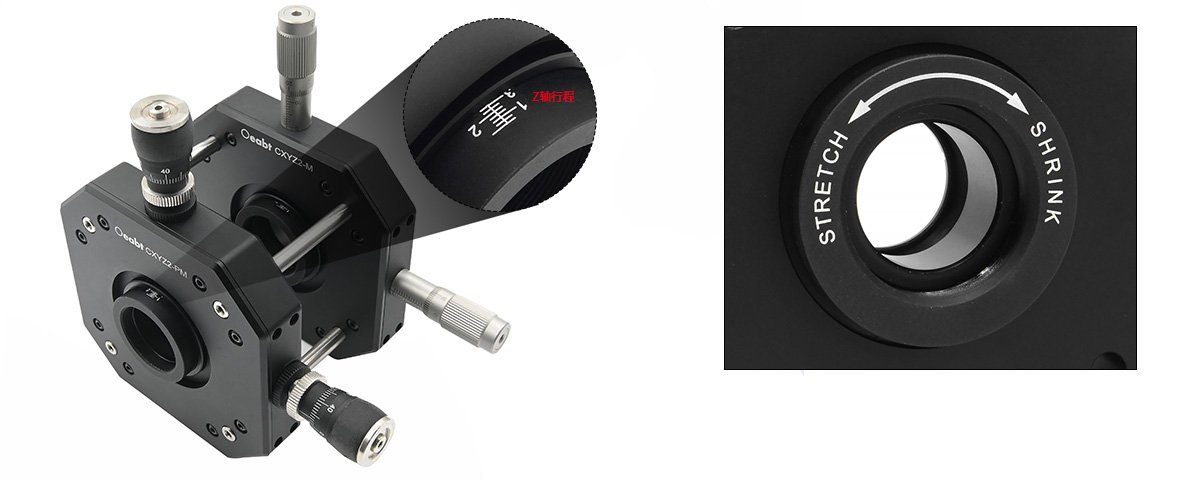

CXYZ2-M系列平移安装座具有X、Y和Z轴的平移行程，XY行程允许系统中的物体垂直±3mm的光轴运动。而Z轴行程±1.5mm，能补偿比如光纤对准或透镜安装等应用中的聚焦误差。

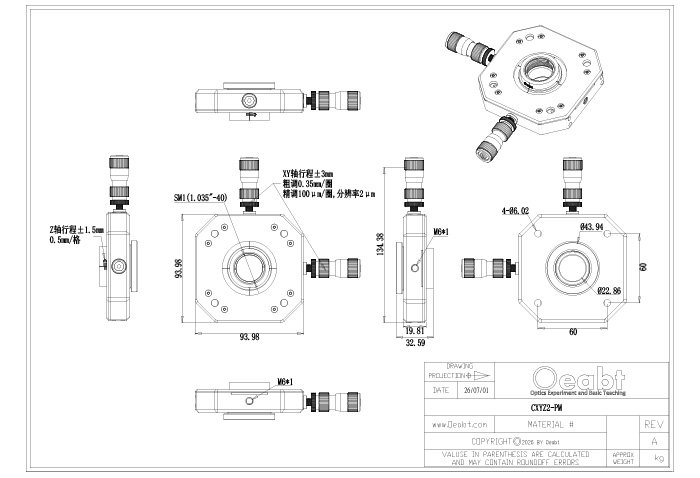

| 型号 | CXYZ2-M | CXYZ2-PM |

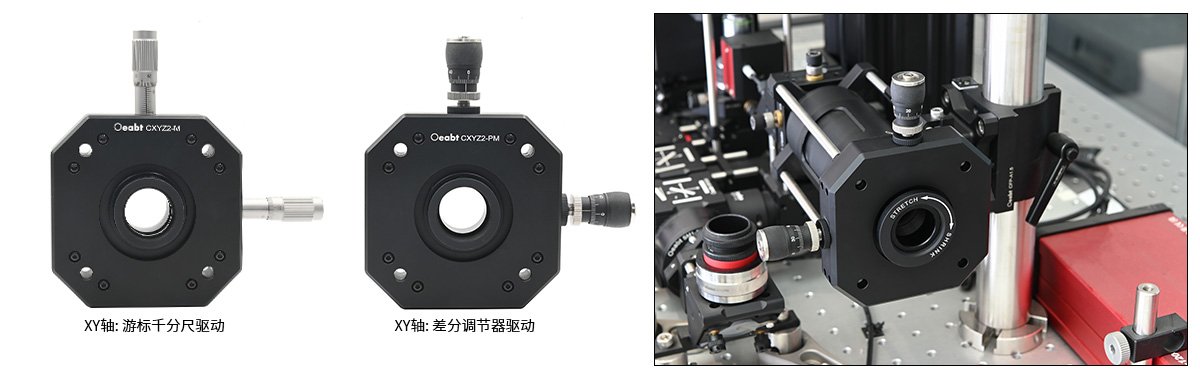

| 分度精度 | XY轴0.5mm/圈,分度10μm；Z轴刻度0.5mm | XY轴粗调0.35mm/圈,精调100μm/圈,分辨率2μm；Z轴刻度0.5mm |
| 规格 |

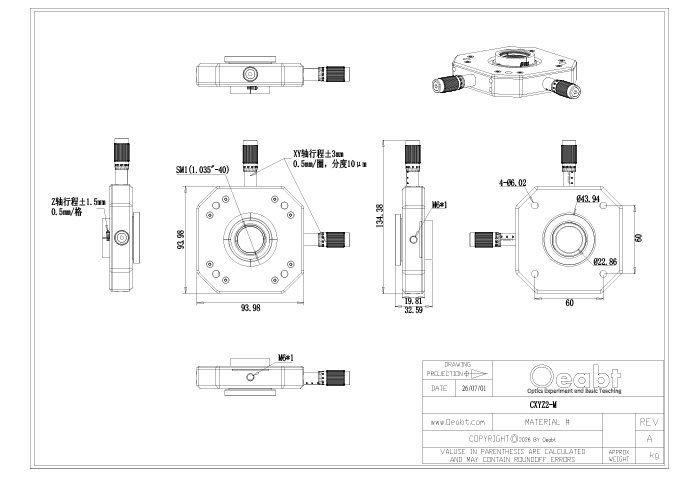

94.0*94.0*32.6mm(不含调节器） |
|
| 行程范围 | XY轴行程为±3mm, Z轴行程±1.5mm | |

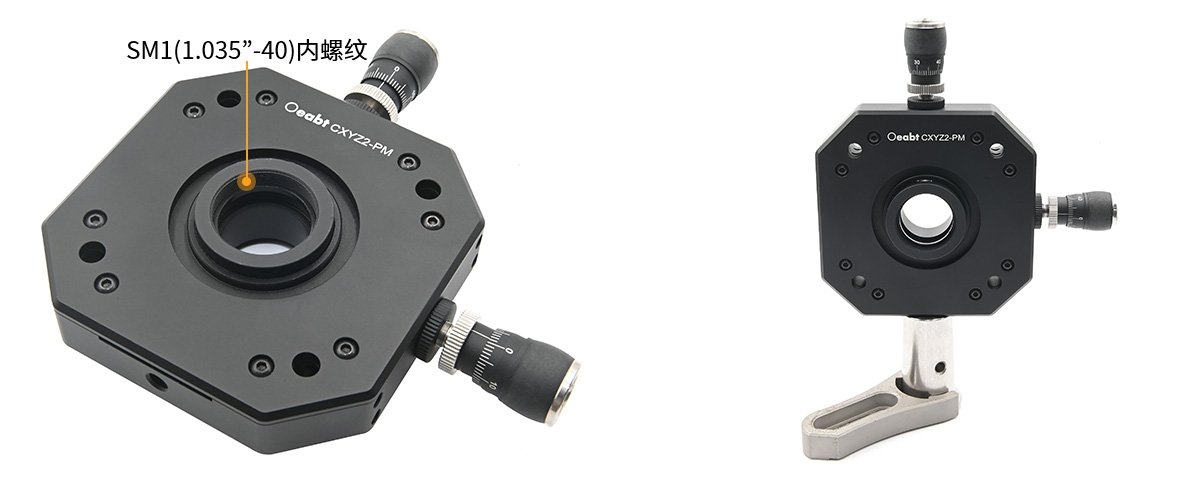

| 中心孔径 | SM1（1.035”-40）内螺纹 | |
| 螺纹类型 | 2处M6螺孔 | |
| 通孔间距 | Ø6mm通孔，间距60*60mm | |
| 重量 | 425.3g | |
| 材质 | 7075铝合金 | |
Additional information
| 型号 | CXYZ2-M, CXYZ2-PM |
|---|---|
| 材质 | 7075铝合金 |
| 螺纹类型 | 2处M6螺孔 |
| 中心孔径 | SM1(1.035”-40)内螺纹 |
