CVMP系列 笼式垂直安装板
$187.00
• 将笼式组件垂直安装到光学平台； • 兼容16、30、60mm笼式系统； • 中心孔径兼容SM05或SM1螺纹组件；
Description

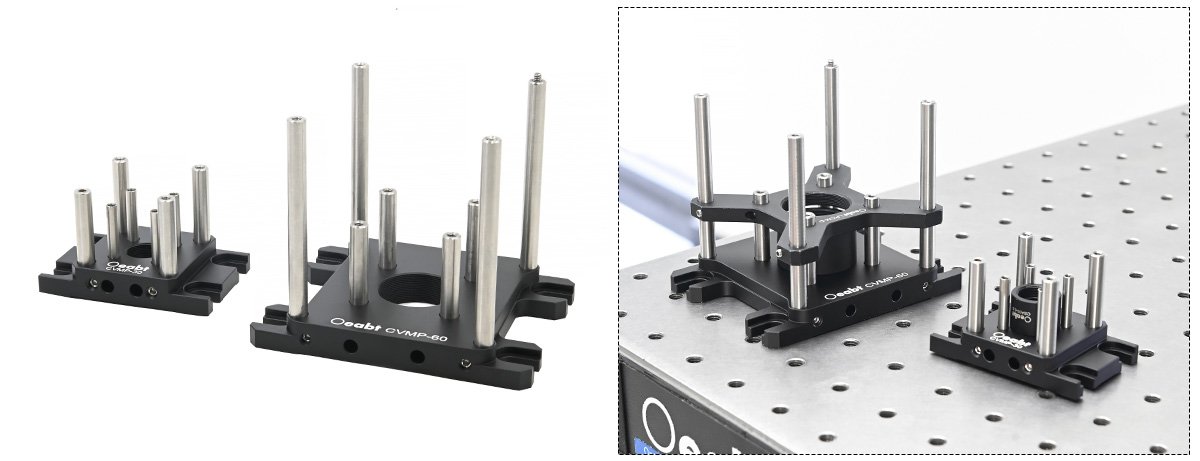

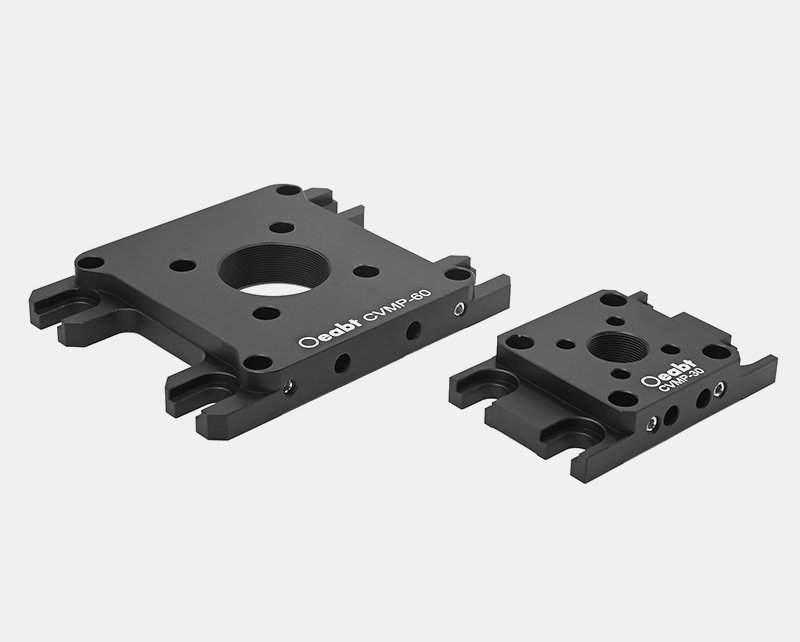

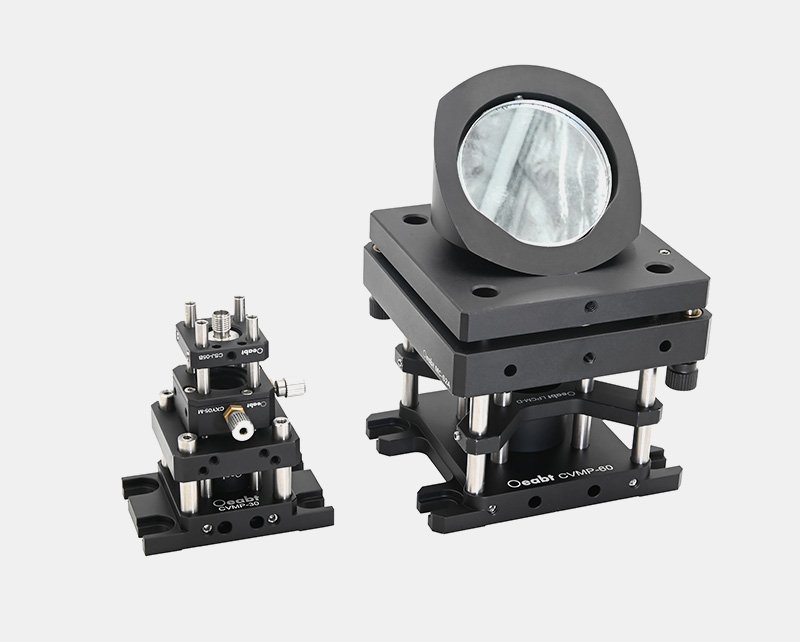

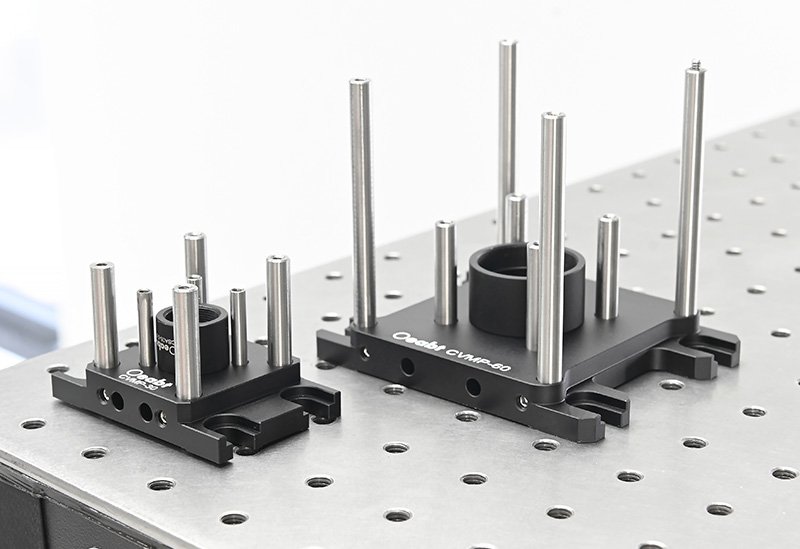

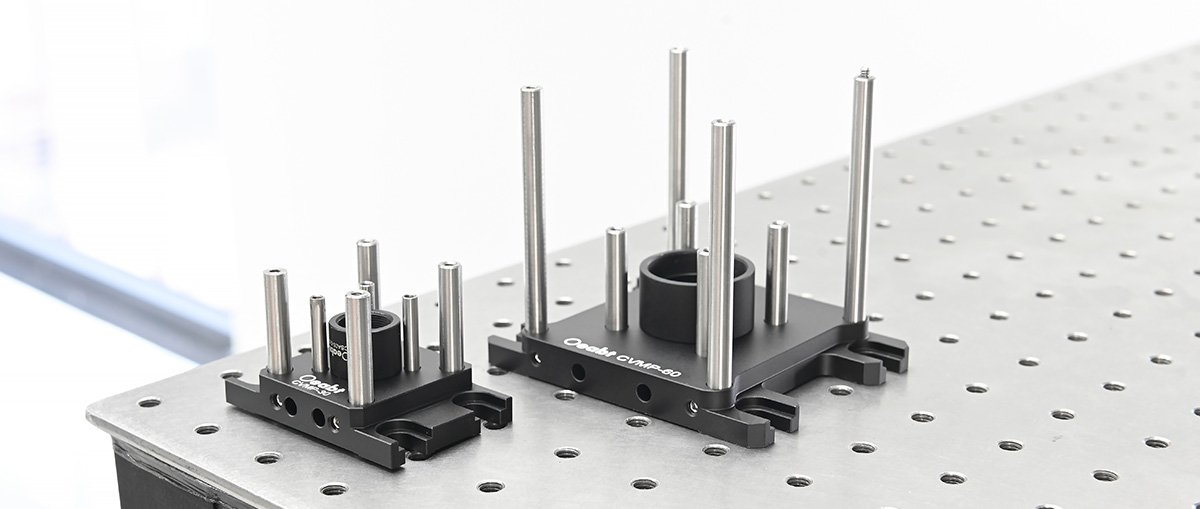

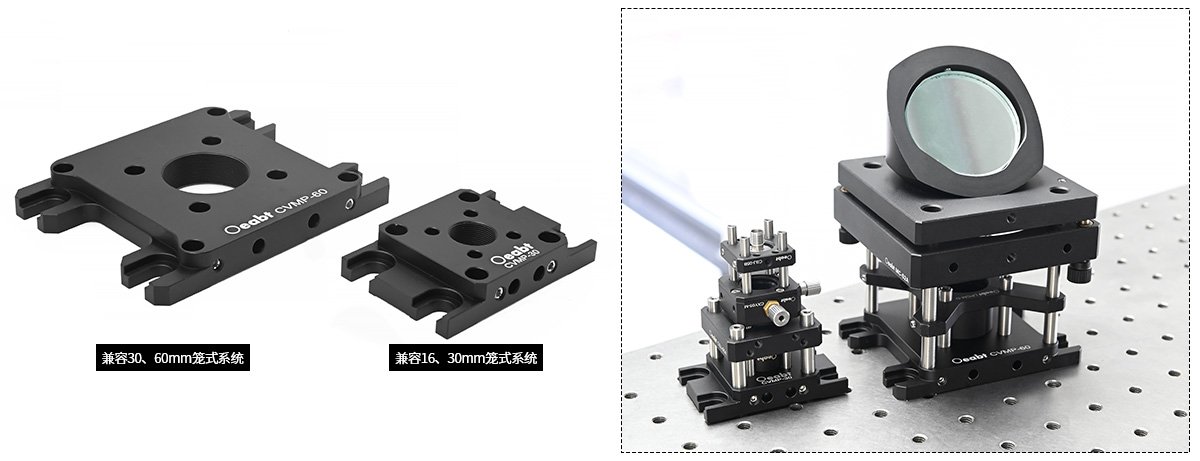

垂直安装板可以将16mm、30mm和60mm笼式系统垂直安装到光学平台表面，还可实现不同尺寸笼式系统的兼容转换。

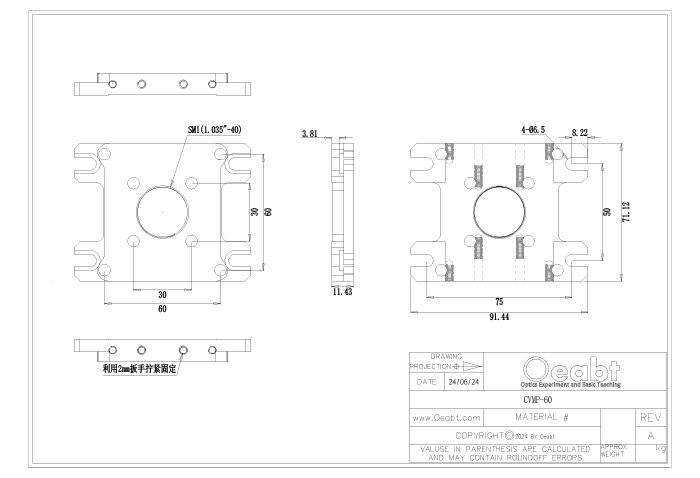

| 型号 | CVMP-30 | CVMP-60 |
| 规格 | 62.0*40.6*11.4mm | 91.4*71.1*11.4mm |
| 中心孔径 | SM05（0.535”-40）内螺纹 | SM1（1.035”-40）内螺纹 |
| 兼容笼式 | 16mm、30mm | 30mm、60mm |
| 重量 | 47.0g | 120.0g |
| 沉头孔槽 | Ø6.5mm*4处 | |
| 材质 | 7075铝合金 | |
Additional information
| 型号 | CVMP-30, CVMP-60 |
|---|---|
| 材质 | 7075铝合金 |
| 螺纹类型 | SM05(0.535”-40)内螺纹, SM1（1.035”-40）内螺纹 |
