CSM1-1系列 透镜套管连接件
Price range: $86.00 through $169.00

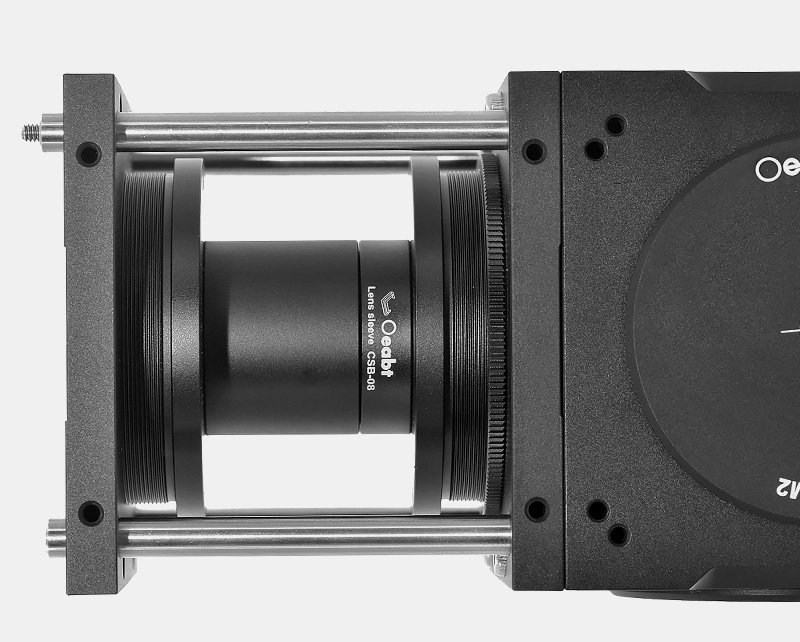

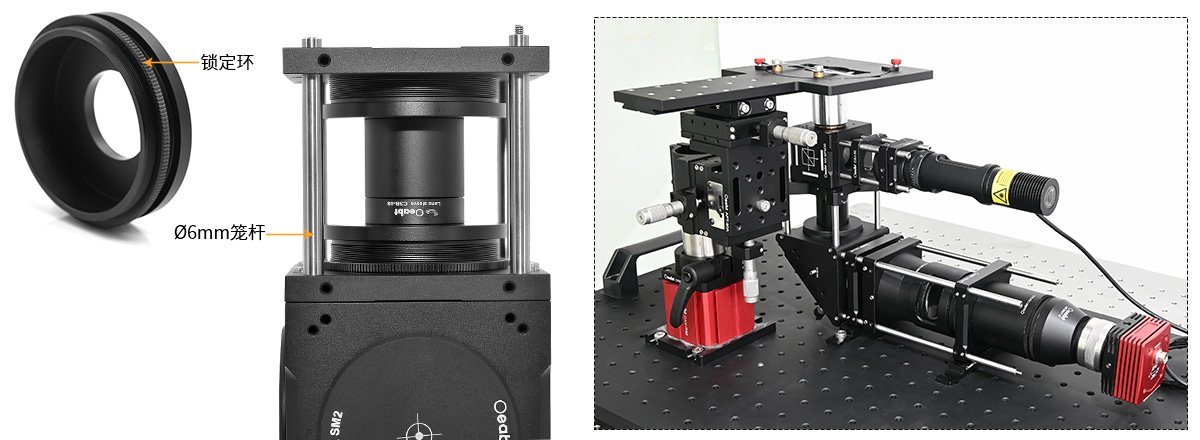

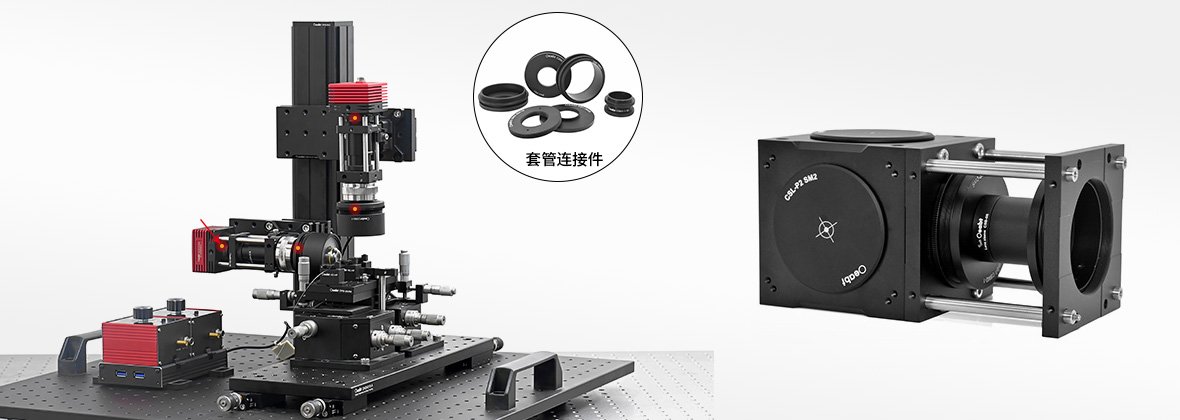

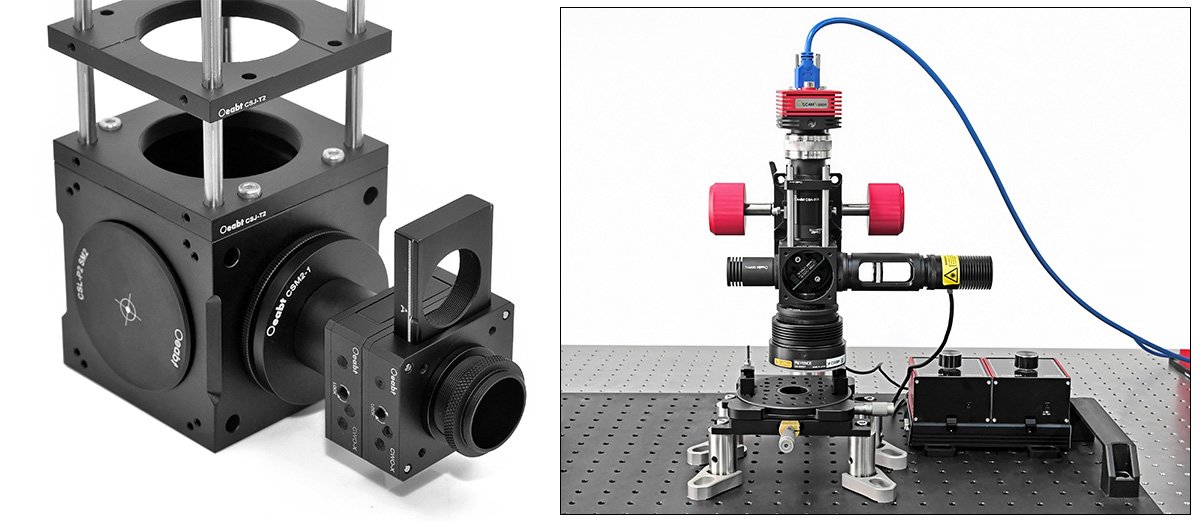

• 螺纹连接件，应用于套管套筒与其它光机组件的连接； • 连接件带有SM1（1.035″-40）和SM2（2.035″-40）螺纹； • 可优化附接到其上的组件的位置和角度；
Description
透镜套管转接件的外螺纹设计用于SM1或SM2内螺纹组件之间的连接。

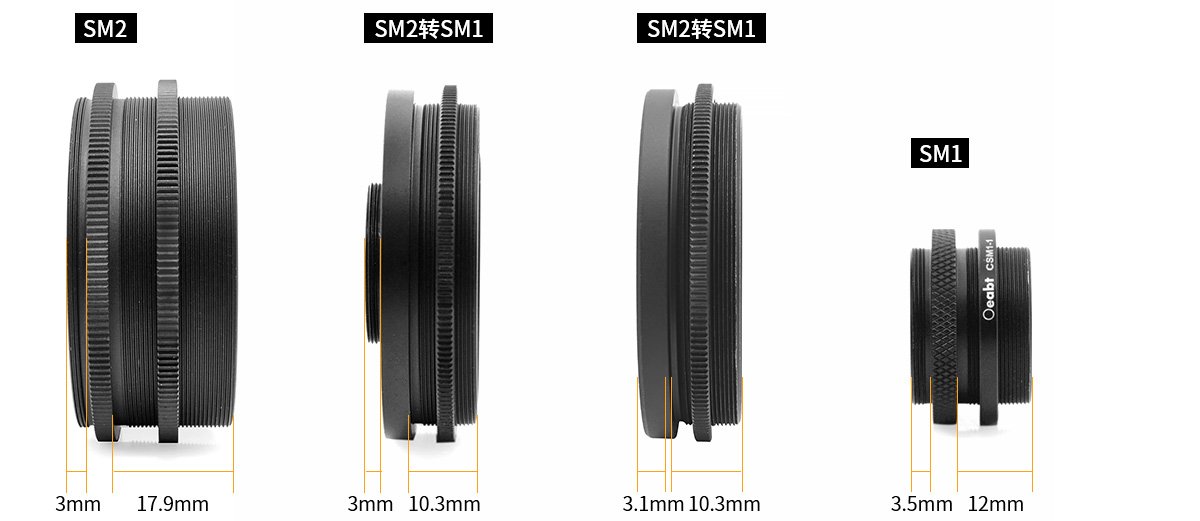

| 型号 | 规格 | 螺纹类型 | 重量 | |
| CSM1-1-12 | Ø31.8*19.5mm | SM1外螺纹，L=3.5mm | SM1外螺纹，L=12mm | 10.7g |
| CSM1-1-24 | Ø31.8*31.5mm | SM1外螺纹，L=3.5mm | SM1外螺纹，L=24mm | 14.0g |
| CSM1-1-24 | Ø31.8*55.5mm | SM1外螺纹，L=3.5mm | SM1外螺纹，L=48mm | 20.9g |

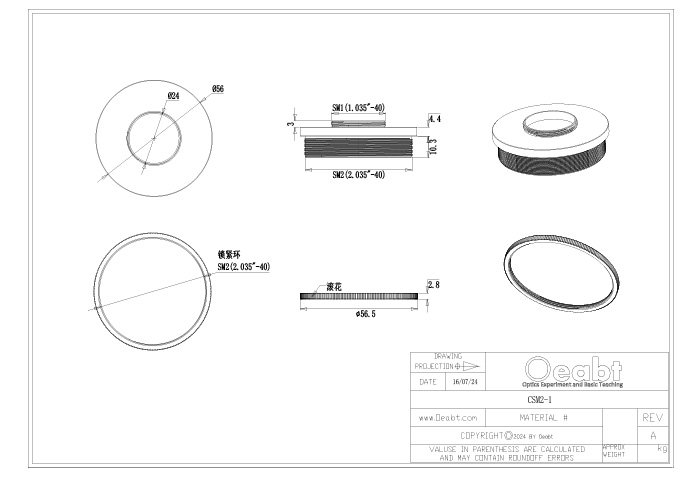

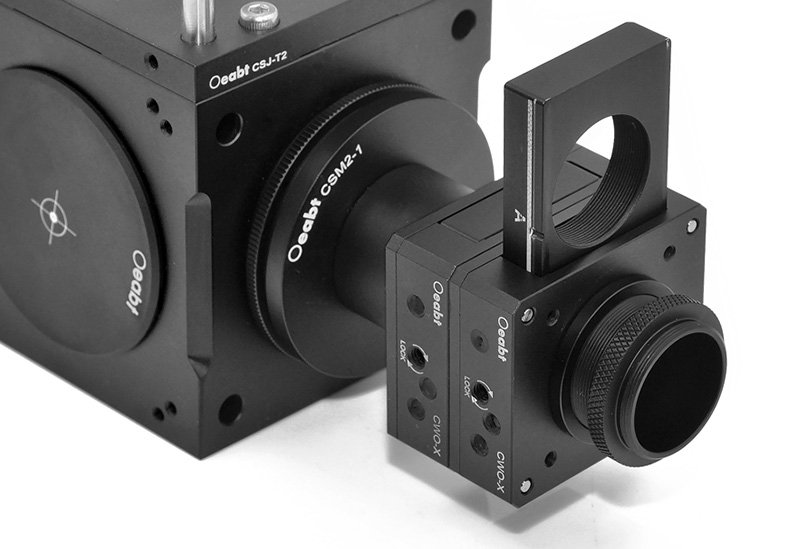

| CSM2-1 | Ø56.0*18.0mm | SM2外螺纹，L=3mm | SM1外螺纹，L=10.3mm | 25.0g |

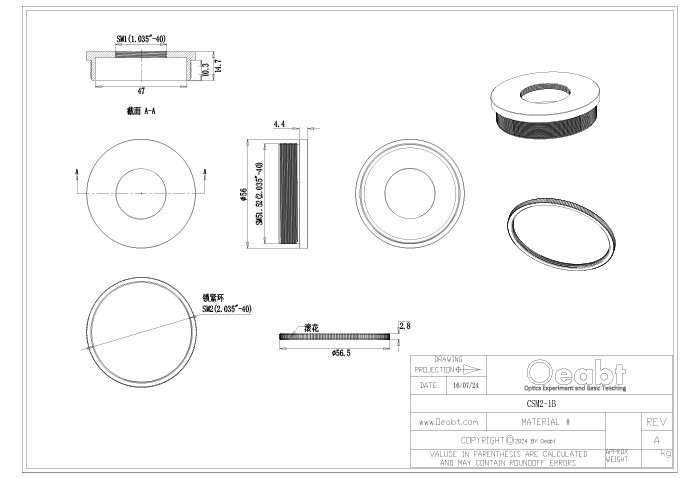

| CSM2-1B | Ø56.0*14.8mm | SM2外螺纹，L=10.3mm | SM1内螺纹，L=3.1mm | 30.0g |

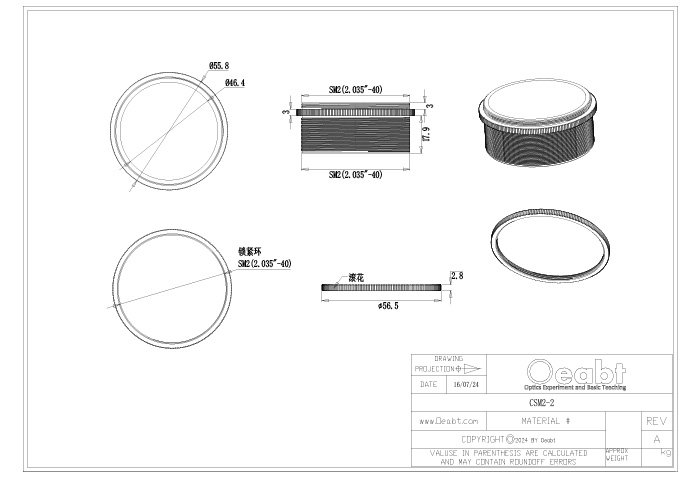

| CSM2-2 | Ø56.0*23.9mm | SM2外螺纹，L=3mm | SM2内螺纹，L=17.9mm | 29.5g |

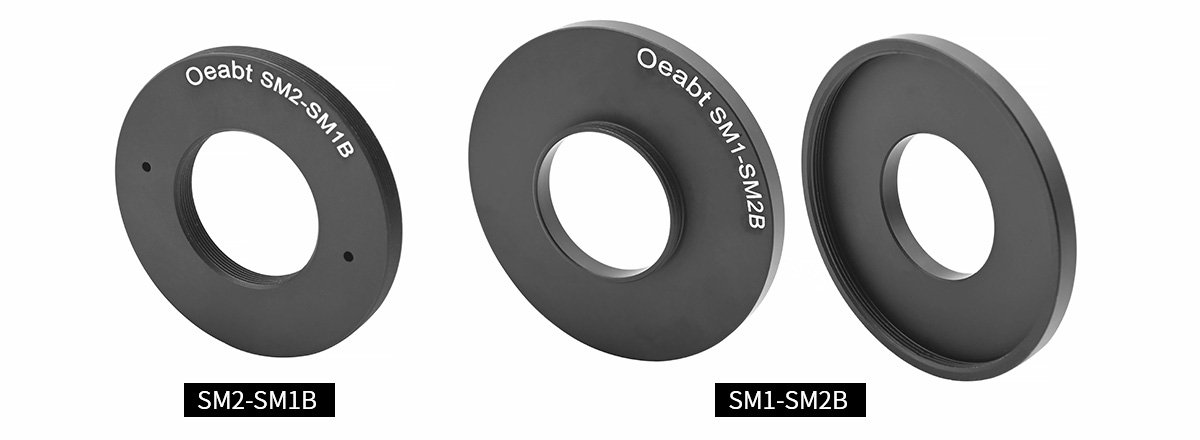

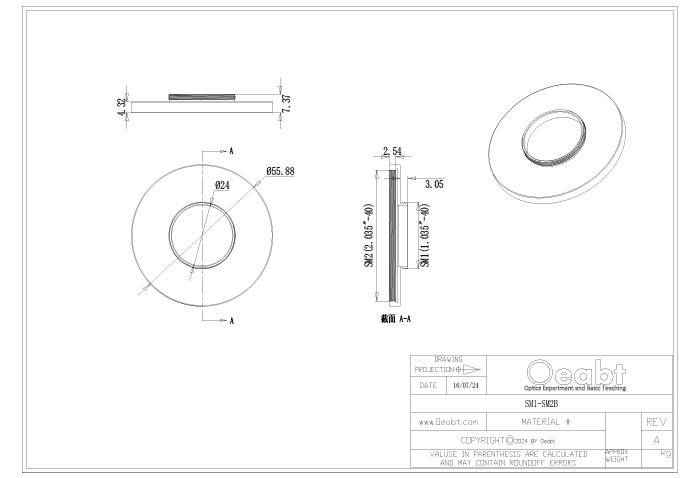

| SM1-SM2B | Ø55.9*7.4mm | SM1外螺纹，L=3mm | SM2内螺纹，L=2.5mm | 7.1g |

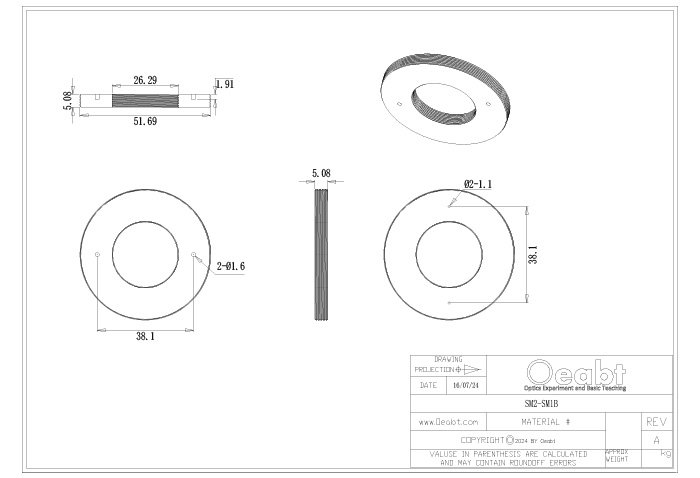

| SM2-SM1B | Ø51.7*5.1mm | SM2外螺纹，L=5.1mm | SM1内螺纹，L=5.1mm | 28.3g |
Additional information
| 型号 | CSM1-1-12, CSM1-1-24, CSM1-1-48, CSM2-1, CSM2-2, CSM2-1B, SM1-SM2B, SM2-SM1B |
|---|---|
| 材质 | 7075铝合金 |
| 螺纹类型 | SM1、SM2外螺纹, SM1(1.035”-40)外螺纹, SM1外螺纹、SM2内螺纹, SM2内外螺纹, SM2外螺纹、SM1内螺纹 |
