CPL-TILT 氦氖激光器安装座
$962.00

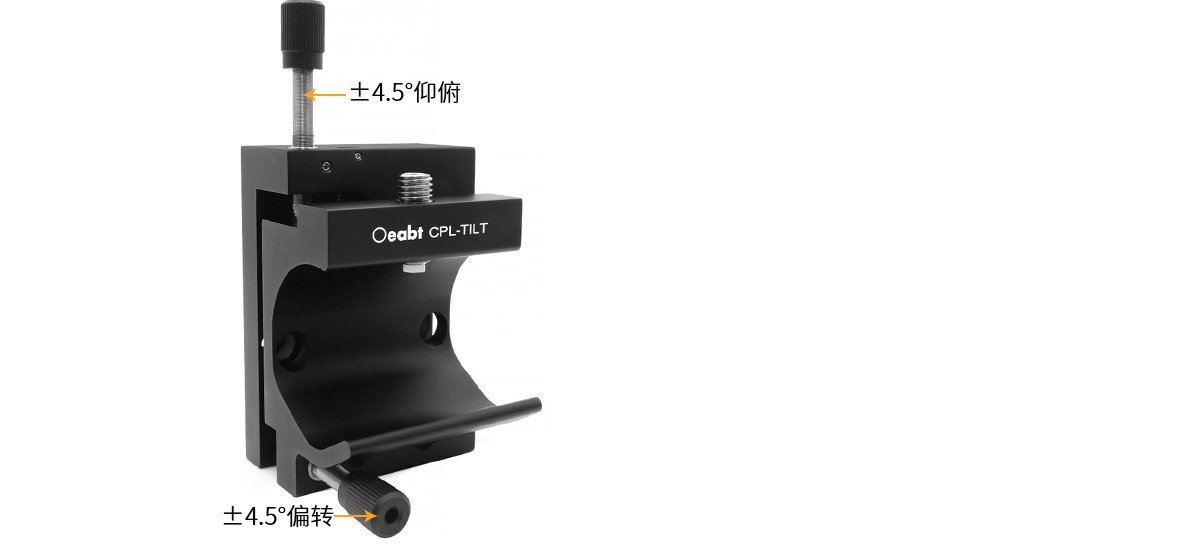

• 用于氦氖激光器和其他圆柱形物体的无漂移定位； • 两轴调整，调节旋钮提供±4.5°的俯仰和±4.5°的偏转控制； • 兼容从Ø25.4-Ø44.5mm的圆柱形元件组件；
Description

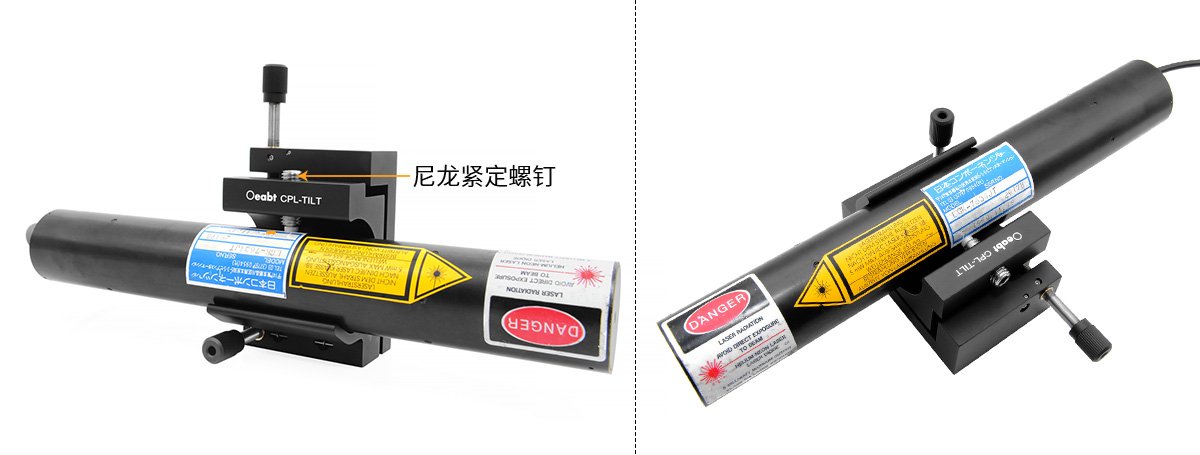

安装座提供两轴精密角度调整，可用于Ø25.4mm-44.5mm的圆柱形激光头和其他圆柱形物体的无漂移定位。为了防止摇晃抖动，可通过侧边尼龙紧定螺钉牢牢地固定在由U型槽形成的两个触面上。
| 型号 | CPL-TILT |

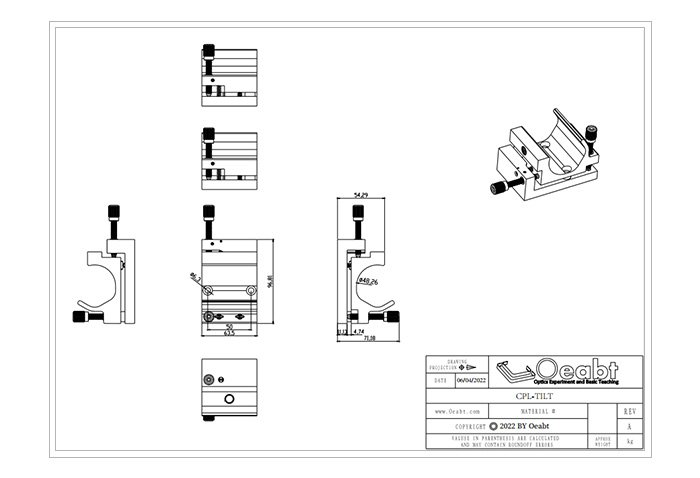

| 规格 | 96.5*63.4*63.1mm(不含调节器) |
| 调节范围 | ±4.5°俯仰，±4.5°偏转 |
| 调节精度 | M6*0.35调节螺丝，精度10.7mrad/转 |
| 夹持直径 | Ø25.4-44.5mm |
| 螺纹类型 | Ø6.3mm沉头孔 |
| 重量 | 510.0g |
| 材质 | 7075铝合金 |
Additional information
| 型号 | CPL-TILT |
|---|
