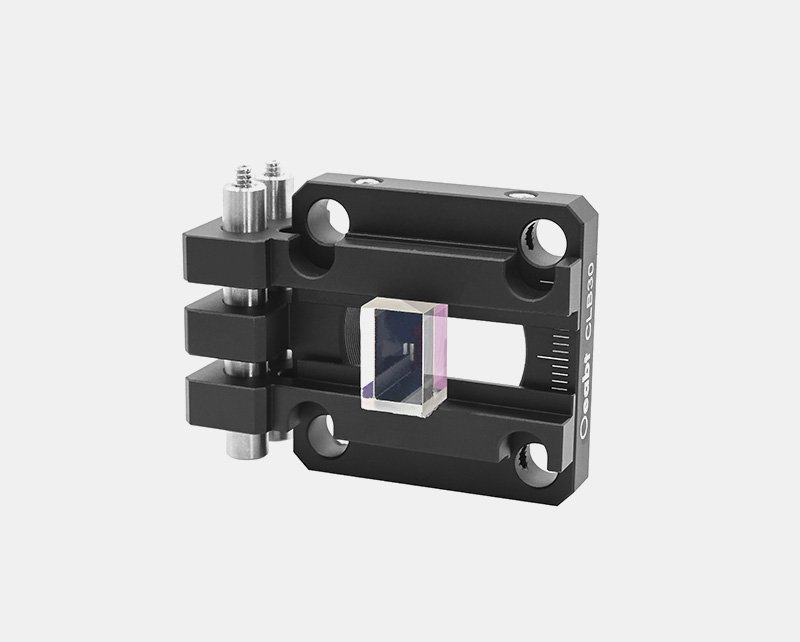

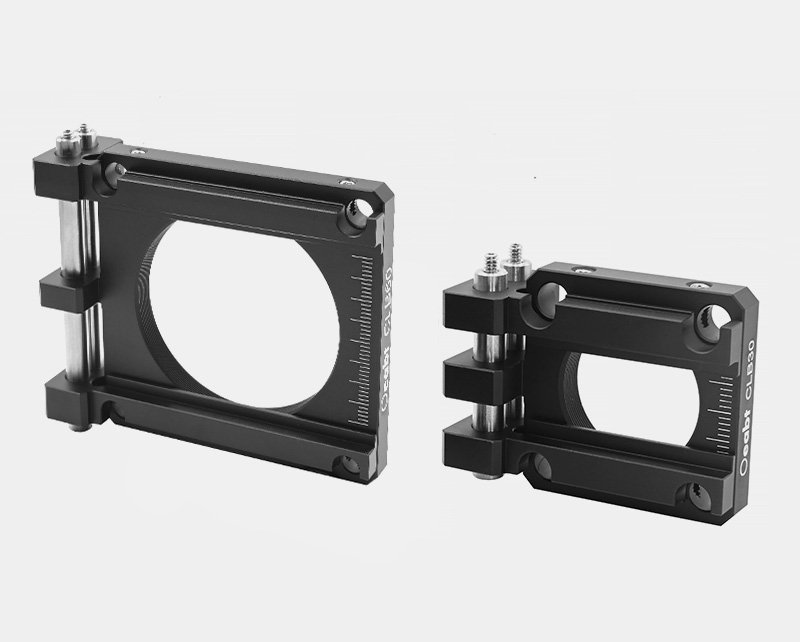

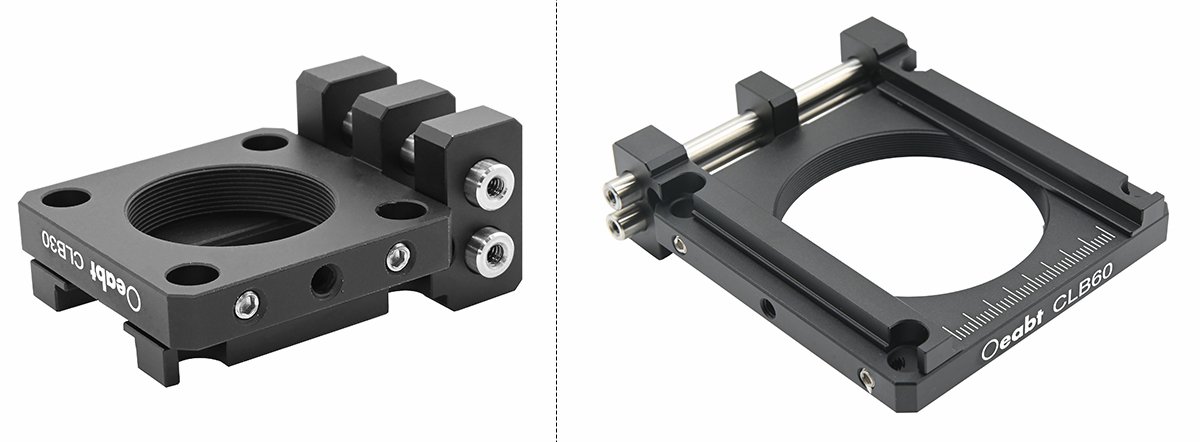

CLB系列 笼式柱镜安装座
Price range: $287.00 through $407.00

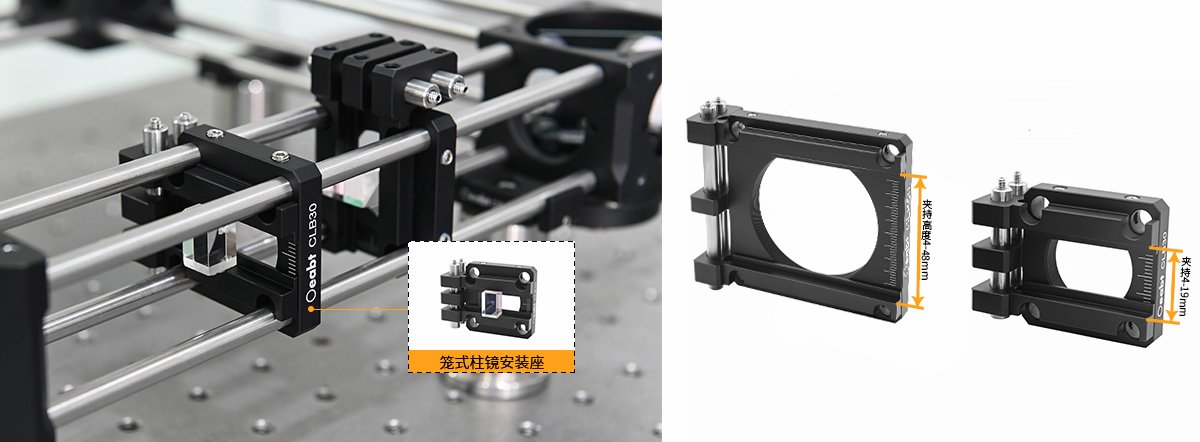

• 安装柱透镜或矩形光学元件； • 兼容30mm或60mm笼式系统； • 夹持高度：CLB30高度范围4.0mm-19mm，CLB60高度范围4.0mm-48mm；
Description

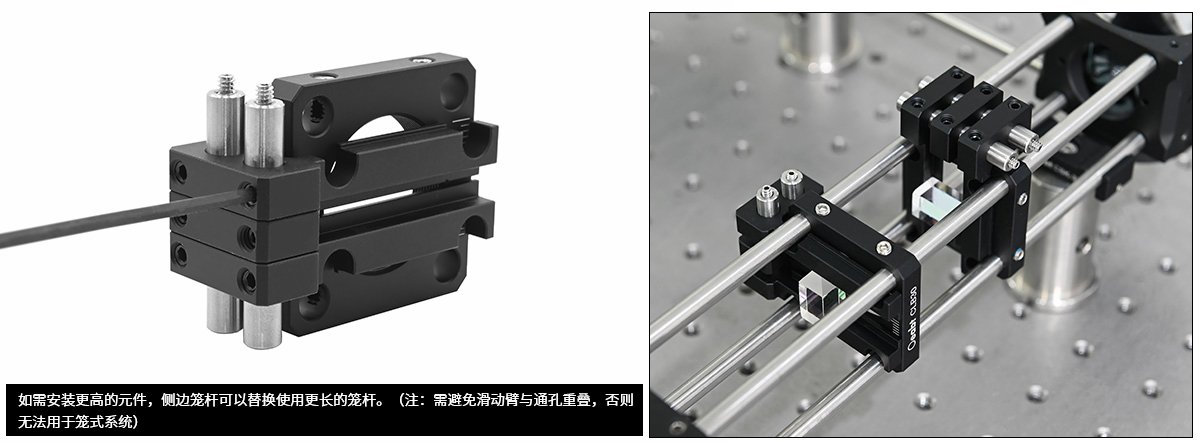

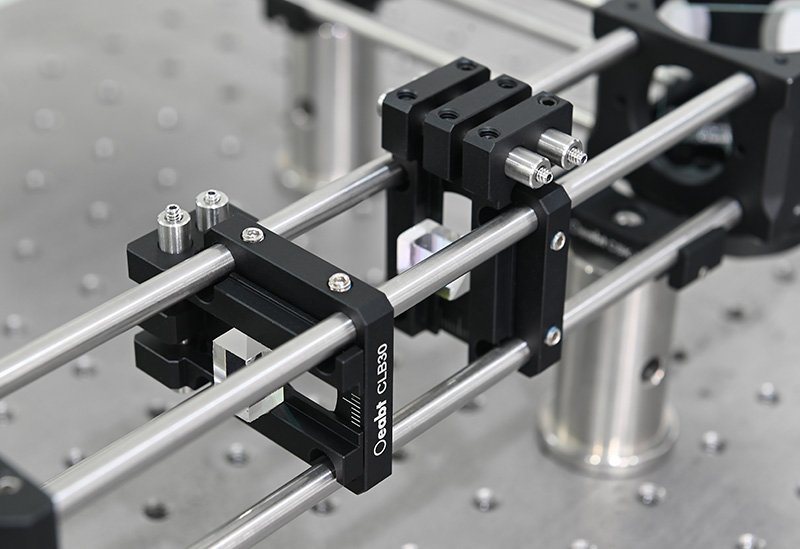

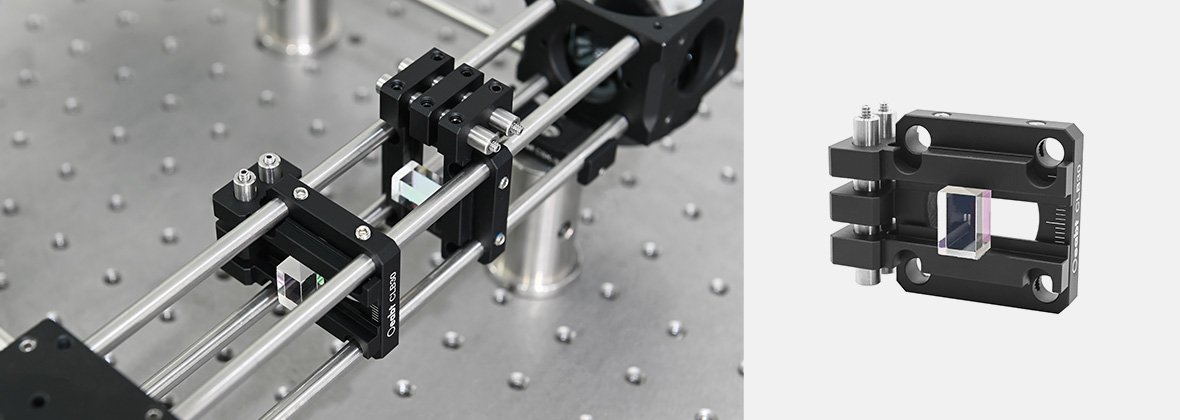

柱透镜安装座用于在30mm笼式系统内用于水平或垂直固定柱透镜或长方形光元件。
|
型号 |

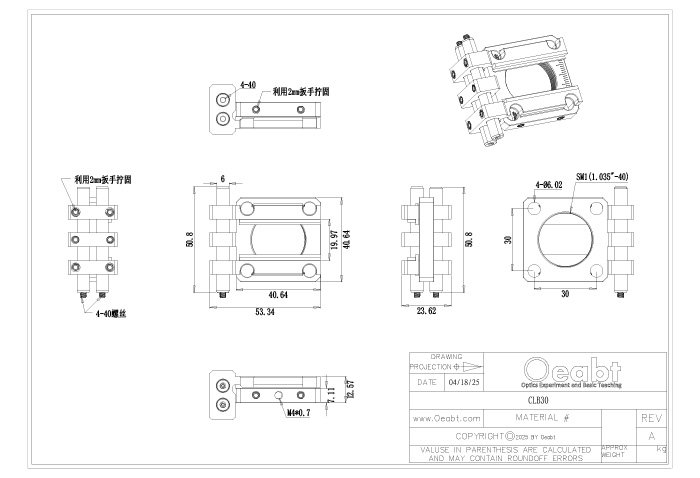

CLB30 |

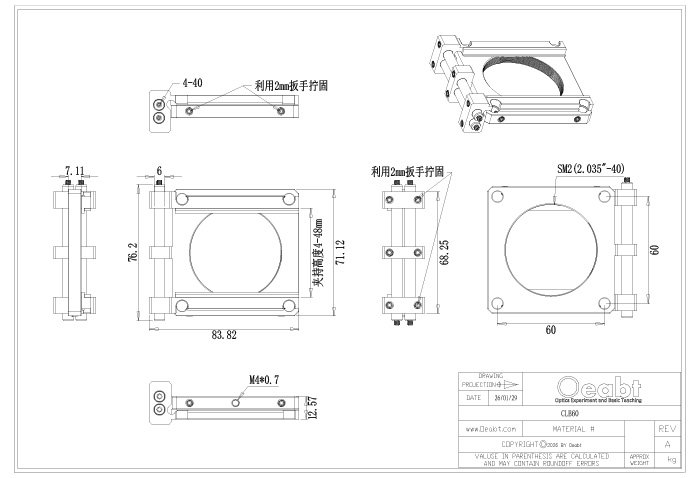

CLB60 |
|
规格 |
53.3*50.8*23.6mm |
83.8*71.1*23.6mm |
|
夹持尺寸 |
4.0mm-19mm |
4.0mm-48mm |
|
中心孔径 |
SM1（1.035”-40）内螺纹 |
SM2（2.035”-40）内螺纹 |
|
通孔间距 |
Ø6.02mm*4处，间距30mm |
Ø6.02mm*4处，间距60mm |
|
重量 |
52.0g |
114.1g |
|
螺孔类型 |
M4*1处 |
|
|
材质 |
7075铝合金 |
|
Additional information
| 型号 | CLB30, CLB60 |
|---|---|
| 材质 | 7075铝合金 |
| 螺纹类型 | SM1（1.035”-40）内螺纹, SM2（2.035”-40）内螺纹 |
