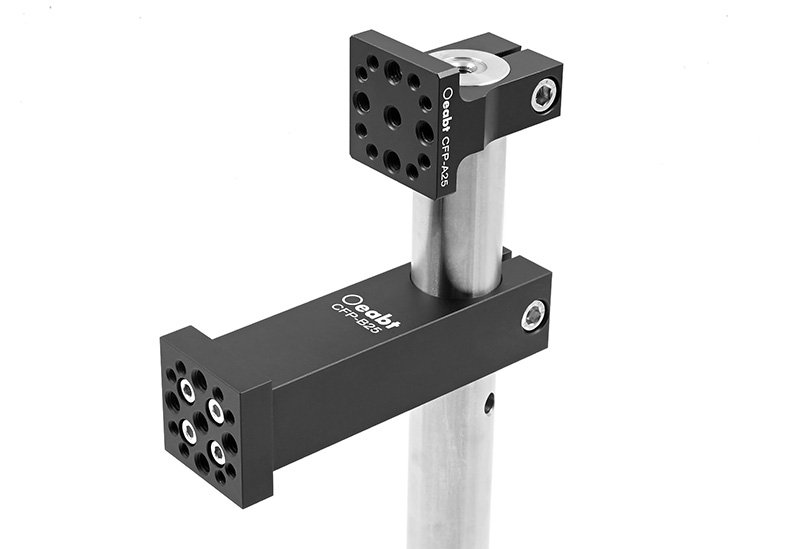

CFP-A25 笼式接杆夹块
Price range: $16.00 through $195.00
• 用于Ø25mm接杆的安装夹块； • 两种夹块长度，适用不同安装需求； • 前面板有M4/M6螺孔阵列，可安装不同光机组件；
Description

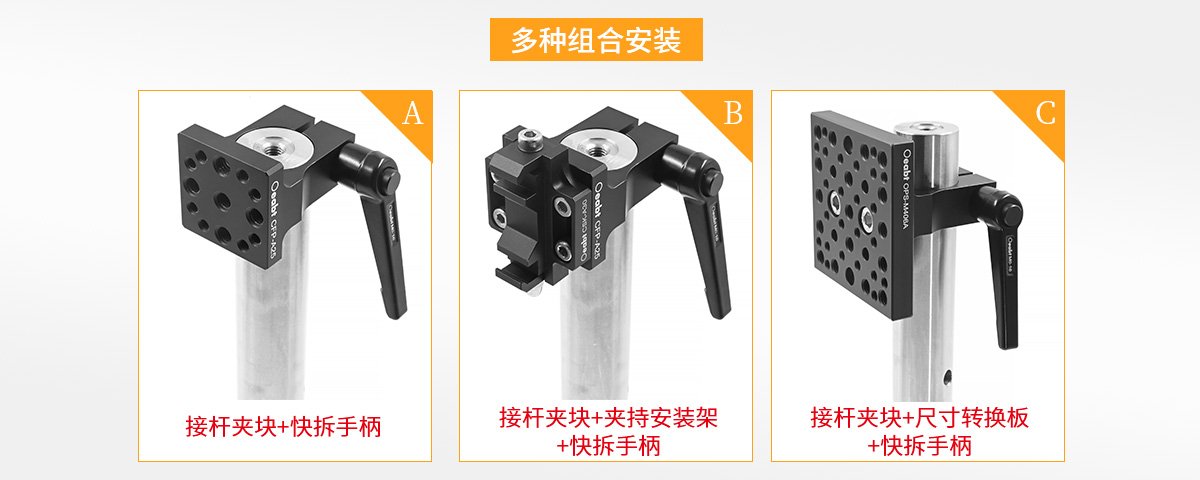

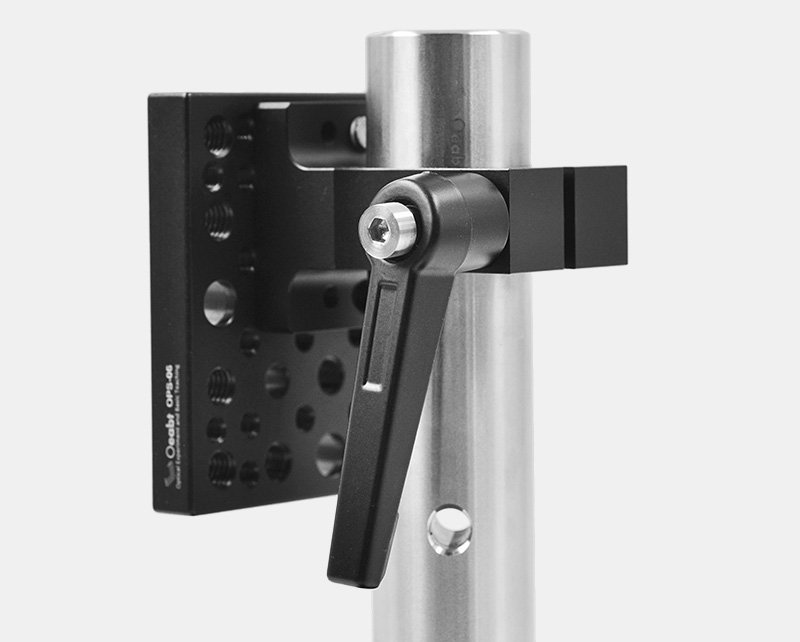

能够提供刚性的通用安装表面。这些安装夹可以像面包板一样用来固定我们的各种光机械安装座。夹持机制可以直接兼容我们的Ø25mm接杆。

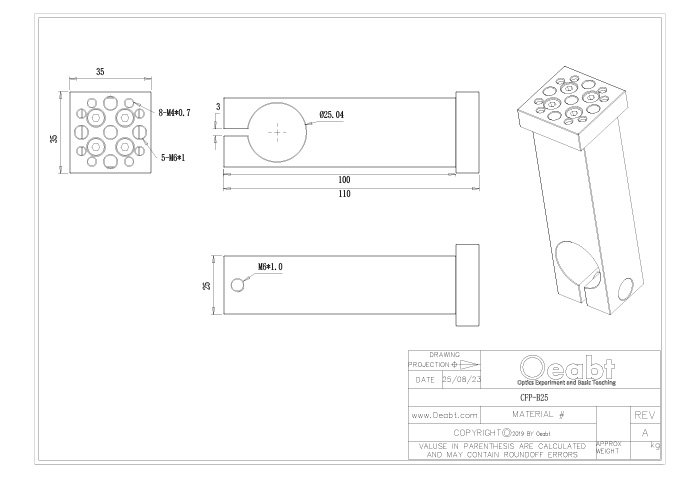

| 型号 | CFP-A25 | CFP-B25 |
| 规格 | 35.0*46.9*35.0mm | 35.0*110.0*35.0mm |
| 夹块长度 | 24.0mm | 87.0mm |
| 夹持孔径 | Ø25.04mm | |
| 螺孔类型 | M4*8处、M6*5处 | |
| 材质 | 7075铝合金 | |
Additional information
| 型号 | CFP-A25, CFP-B25, NM6-20 |
|---|
